A3081834
Alt: SILFLEX Series
$11.33

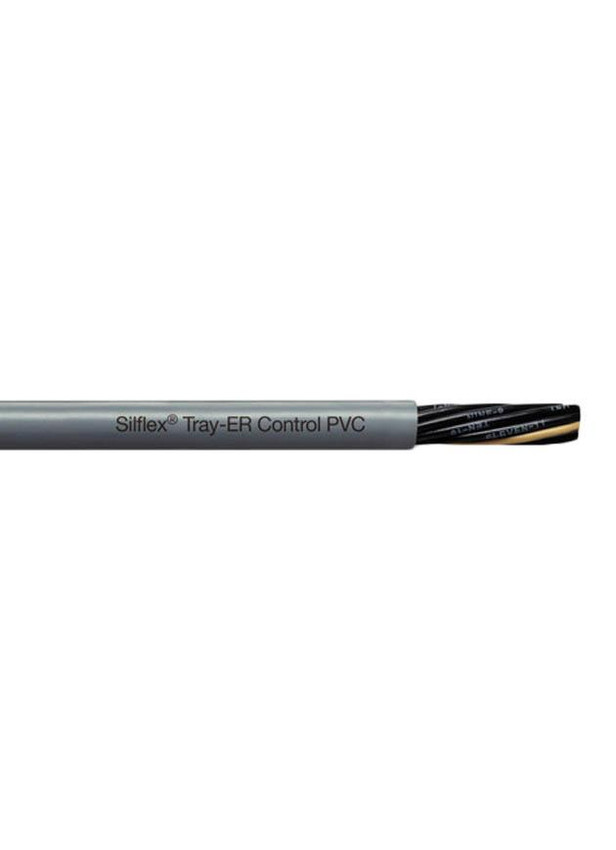

Cable, SILFLEX®, PVC, AWG 18, 34 Wires Unshielded, A308 Series, Sold/Price per Foot
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Lutze Silflex Control-ER PVC, unshielded multi-conductor cable for tray and control applications with exposed run (open wiring) approval.
Ideal for machine tool, machine and plant construction, HVAC, assembly and production lines and many other industrial applications.
Features Include:
- Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
- Easy stripping and fast installation
- High flexibility for complex installation distances and small bending radii
- Improved oil resistance due to specifically developed PVC jacket
- Sunlight-resistant
- Direct burial for installation in the ground (AWG 18 and larger)
- Compliant with NFPA 79 requirements
- TC-ER for use on machines and in cable trays without conduit (AWG 18 and larger)
- Silicone free, talc free
- RoHS compliant
**Please note: a $75 minimum may apply on cable cut to length.
Nominal Voltage
- 1000 V WTTC
- 600 V TC, MTW 90 °C
- 300 V PLTC
Test Voltage
- 3000 V
Temperature Range
- Moving: 5 °C to +90 °C
- Fixed: -40 °C to +90 °C
Minimum Bending Radius
- Moving: D x 15
- Fixed: D x 6
Jacket Material
- PVC
Burning behavior
- UL 1581, FT 4
Weight
- 67,563 kg/100 m
Copper
- 206 Lbs/Mft
