Available Now! 606550
606550
Available Now! (2 in stock)
Lutze

606550

Alt: Cablefix X 12

$42.57

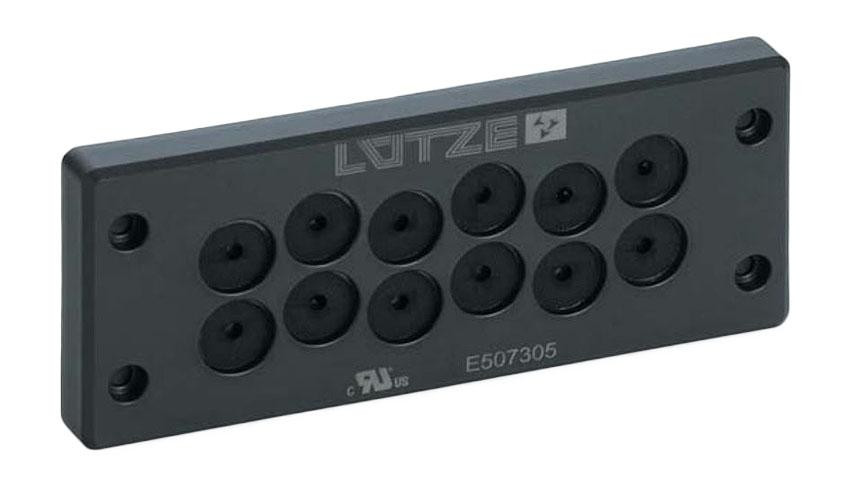

Cable Entry System, 12 Entry Points, Bolt Mounted, 12 x 5.0-13.0 Clamping Range/mm, UL 4X/12/13, IP65

Minimum Purchase:
1 unit
Adding to cart… The item has been added
606550
606550
Description

Cablefix® X is ideal for areas requiring high cable densities, superior ingress protection and light strain relief.

This is a bolt-mounted design for all enclosures!

606550 has 12 entry points while the 606551 has 23 entry points.

  • Cables install easily by pushing the end through the seal from the front
  • Integrated seal protects up to UL type 4X, 12, 13 and IP65
  • Save up to 50% installation space and 80% of your time vs. standard cable glands
  • Easy to install, can be mounted with provided bolts
  • Entry points are sealed by default, eliminates the need for blanking plugs
  • Standard 112x36mm cutout

Marshall Wolf Automation is your authorized LUTZE distributor.



Features Include:

  • Dimensions (W x H x D): 148×60×13.5 mm
  • Number of Cables x Cable Diameter: 12 x 5 - 13 mm
  • Number of Cables: 12
  • Temperature Range: -40°C - +80°C
  • Material: PA 6 glass fiber reinforced
  • Material Seal: PUR
  • Material Spacer:Chloroprene rubber
  • Material Membrane: Butyl rubber
