606501
Alt: Cablefix One 7 Entry Kit
$89.03
Cable Entry Kit, 6 Small/1 Large, Kit Includes Frame, Hardware, Layered Seal for Each Entry Point
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

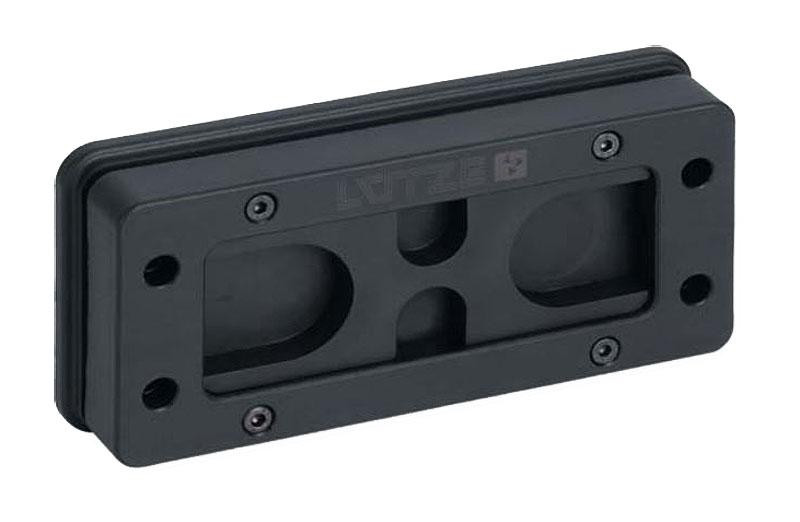

LUTZE Cablefix One cable entry kits include frame, hardware and the layered seals needed to cover the entire clamping range specified for each entry point! One kit, one part number.
This is a modular entry system available as preconfigured kits. The multi-layered seal design gives you high strain relief and ingress protection while allowing custom configurations with few part numbers.
- Available in 4, 7 and 10 cable configurations
- Kit includes frame, hardware and layered seals
- Unused seales are closed by default - eliminates the need for blanking plugs!
- Protects up to UL Type 4X, 12, 13 and IP65
- Strong strain relief per EN 62444
- Standard 112 x 46mm cutout makes prepping your cabinet easy! (punches available from third parties)
- Suitable for cables with or without pre-installed connectors
Marshall Wolf Automation is your authorized LUTZE distributor!
Specifications
Alternate Part Number
Cablefix One 7 Entry Kit
Color
See Spec or N/A
Connection
See Spec
Series
See Specs
Thread
See Spec
Type of Product
Cable Entry Kit
Warranty
1 Year
Weight
0.5
Features Include:
- Dimensions (W x H x D): 156.5×75.5×27.5 mm
- Number of Cables x Cable Diameter: 6 × 3.5 – 15.5 mm + 1 × 15.5 – 29.5 mm
- Number of Cables: 7
- Temperature Range: -40°C - +80°C
- Material: PA 6 glass fiber reinforced
- Material Seal: PUR
- Bolt Material: Steel
- Material characteristics: Silicon-free
