092898
Alt: 92898, C-M23F19-19XDIFPU10,0-MA-092898
$382.06

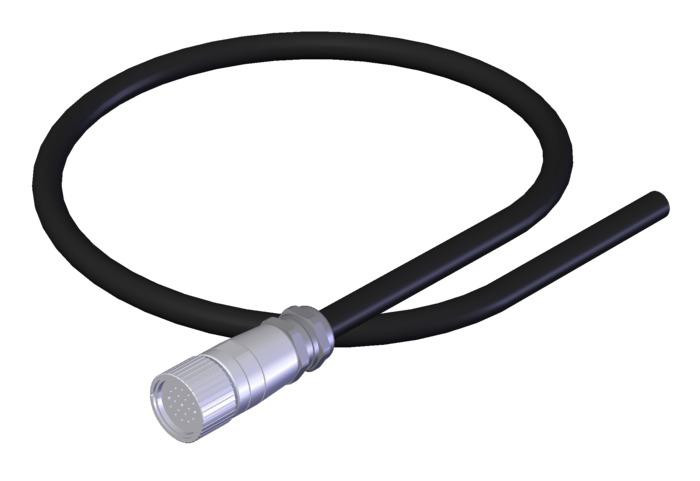

Cable, C-M23F19-19XDIFPU10, 0-MA-092898
- Weight:
- 4.05 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated voltage: 150 V
- Test voltage: 1.5 kV
Connection: 1
- Cable ambient temperature (dynamic): -20 - +80 °C
- Cable ambient temperature (static): -20 - +80 °C
- Cable diameter: approx. 10.4 mm
- Cable length: 10 m
- Cable type: straight
- Conductor cross-section: 16 x 0.5 mm² / 3 x 1 mm²
- Conductor identification: Color code
- Drag chain suitability: yes
- Dynamic bending radius: 10x cable diameter
- Fire behavior: flame retardant according to DIN EN 60332-1-2
- Material: Conductor Cu flexible wire, bare, super fine strands / Conductor insulation: PP / Sheath: PUR
- Number of conductors: 19
- Sheath color: black
- Cable outlet: straight
- Connection: Plug connector M23
- Connection type: Female plug
- Degree of protection: IP65/IP67
- Insertion cycles: 50
Connection: 2
- Conductor end: Sheath stripped
- Connection: flying lead
