C1F015LES
Alt: Includes Wall Mounting Kit
$1,453.48
Transformer, Single Phase, 15kVA, Primary: 240x480V; Secondary: 120/240V, 60Hz, NEMA 3R, Wall Mount, HPS Fortress
- Weight:
- 359.18 LBS
- Minimum Purchase:
- 1 unit
Description
Our Hammond HPS Fortress is an encapsulated transformer for commercial applications.
All units are encapsulated with electrical grade silica sand and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.
- Single phase ratings from 50VA to 37.5kVA
- Three phase ratings from 2kVA to 75kVA
- 60Hz frequency (50/60Hz on four single phase voltage groups)
- Primary volts: 120x240, 208x416, 120/208/240/277, 240x480, 277, 277/480, 347/380, 600
- CSA and UL Listed
- Electrostatic shield standard on all three phase units and single phase units from 750VA and up
What is an encapsulated transformer? Basically it just means that one or more of the transformers components are completely sealed.
Features Include:
- Frequency: 60 Hz (50/60 Hz on units with 380V primary)
- Insulation System: 180°C (115°C rise) standard on all units, optional 180°C (80°C rise) available
- Encapsulation: All units are encapsulated with electrical grade silica sand and resin compounds
- Enclosure Type: Heavy duty type 3R, optional type 4, 4X (stainless steel) and 12
- Termination: Front accessible separate high and low voltage lead wires or copper tabs
- Conduit Knock-Outs: Standard side and rear knock-outs on all units (no knock-outs on Stainless Steel enclosures)
- Mounting: Standard Wall Mounting up to 15 kVA (Optional wall mounting kit available for 30 kVA and 45kVA). Floor Mount only over 45 kVA. Lifting provisions standard 6 kVA to 150 kVA
- Seismic: Seismically certified in accordance with IBC 2009; Section 1613 Earthquake Loads, for SDS <= 2.00g, z/h = 1.0, and IP = 1.5

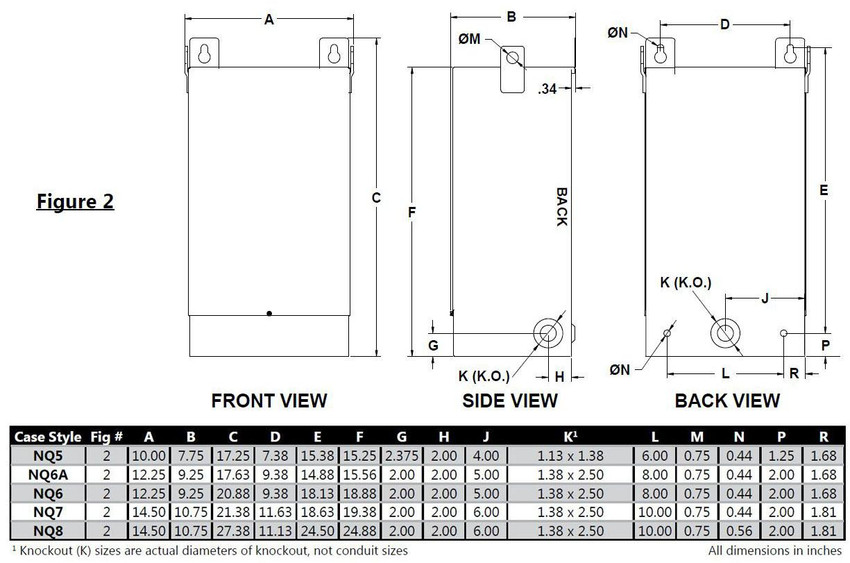

- Dimensions (WxDxH): 14.50 x 10.75 x 21.38 in
