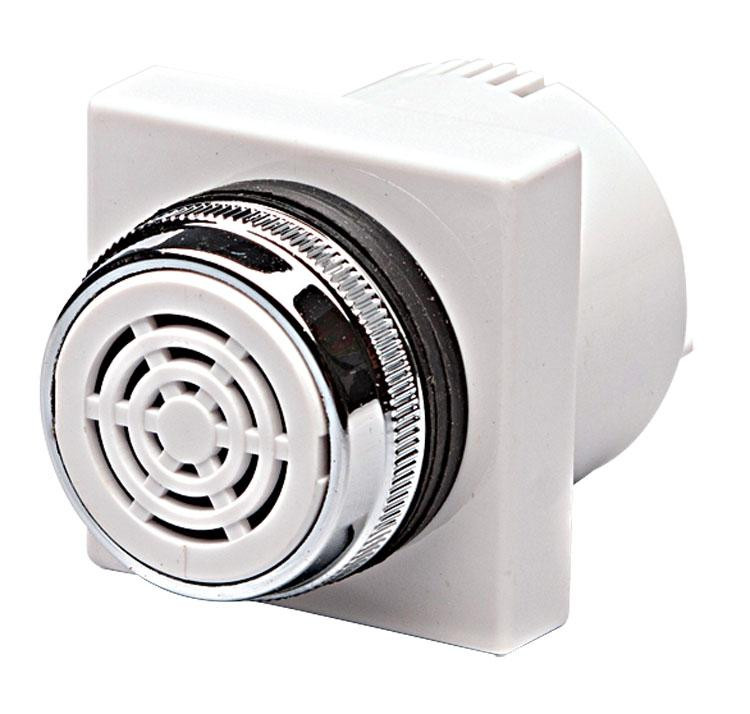

HRB-PS50IR-24V AC/DC

Our HRB series is a 30mm electronic buzzer with a red LED. This series is available in 12, 24 or 110VAC/DC and 220VAC. Choose from intermittent or continuous models.

Part Number: HRB-PS 50 xR-x

• 1st x= I for interrupted or C for continuous
• 2nd x= Voltage - 12V, 24V, 110V or 220V

Features Include:

• LED Color: Red
• Sound Mode: Intermittent(deault), Continuous
• Volume: 80 phone dB min.
• Insulation resistance: Minimum 50mΩ at 500VDC
• Dielectric strength: 1,000VAC 50/60Hz for 1 minute
• Vibration resistance: 1.5mm amplitude at 10~55Hz
• Ambient temperature: -10°C~ +55°C
• Driving torque: 0.8N·m (8.16kgf·cm)

Need More Information?

• Amerimation HRB-PS & KSP Series Datasheet
