IDEC
HW1Z-P1F2PQ4Y
Illuminated Buzzer (Yellow), Flashing, Intermittent Sound, 22mm, 12-24VDC, Super Bright LED Illumination, Finger Safe (IP40) Push-In Terminals, IP65 from Front, IP54 with Terminal Rubber Boot, HW1Z Series
$39.83
HW1Z-P1F2PQ4R
Alt: HW1Z Series
$39.83

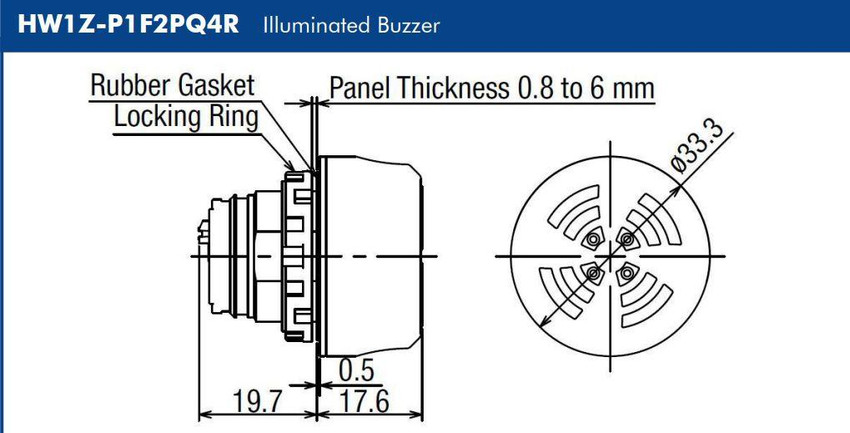

Illuminated Buzzer (Red), Flashing, Intermittent Sound, 22mm, 12-24VDC, Super Bright LED Illumination, Finger Safe (IP40) Push-In Terminals, IP65 from Front, IP54 with Terminal Rubber Boot, HW1Z Series
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Illuminated Buzzer (Red), Flashing, Intermittent Sound, 22mm, 12-24VDC, Super Bright LED Illumination, Finger Safe (IP40) Push-In Terminals, IP65 from Front, IP54 with Terminal Rubber Boot, HW1Z Series
Rated Insulation Voltage
- 30V
Rated Voltage
- 12 to 24V DC
Voltage Range
- 10.8 to 26.4V DC
Rated Current (effective value)
- 18mA (24V DC), 8mA (12V DC)
Sound Frequency (at 25ÀöC)
- 2,200 to 2,450Hz
Operating Temperature
- –20 to +50√Ä√∂C (no freezing)
Operating Humidity
- 20% to 85% RH (no condensation)
