MSP-TPS-02
Menics

MSP-TPS-02

Alt: MSP Series

$90.78

Buzzer, 105dB+/-5%, IP65 Front Face, 24VDC, Ivory, 3 Sirens, Panel Mount, Terminal Wiring

Weight:
3.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
If not in stock we can generally ship in 1 to 2 days!
Description
Buzzer, 105dB+/-5%, IP65 front face, 24VDC, Ivory, 3 Sirens, Panel Mount, Terminal Wiring

Features Include:

  • Power Supply: 12/24 VDC
  • Allowable Voltage Range: 12V ± 5%, 24V ±10%
  • Current Consumption:
    • 12VDC Melody type: 0.22A, Siren type: 0.8A
    • 24VDC Melody type: 0.12A, Siren type: 0.4A
  • Maximum Volume: Melody type: 100±5dB(1M), Siren type: 110±5dB(1M)
  • Number of Channels: Sound types: 3 Channels
  • Sound Type: Melody: Foe Elise, Sweet Home, Cuckoo Waltz Siren: Fire trucks, Police cars, Ambulance
  • Volume Control: Melody: Dial type Siren: None
  • Insulation resistance: Over 100MΩ(500VDC mega btwn terminal and case)
  • Withstand voltage: 500VAC 50/60Hz 1 min.
  • Temperature: Working temp: -20 ~ 50°C Storage temp: -20 ~ 65°C
  • Operating humidity: 45 ~ 85% RH
  • Recommended wire size: 45 ~ 85% RH
  • Power input terminal screw tightening torque: 0.4 ~ 0.6 N.m
  • Panel tightening screw fastening torque: 0.7 ~ 0.8 N.m
  • Weight: 436g (MSP-TP Type)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Menics

MSP-TPS-02-R

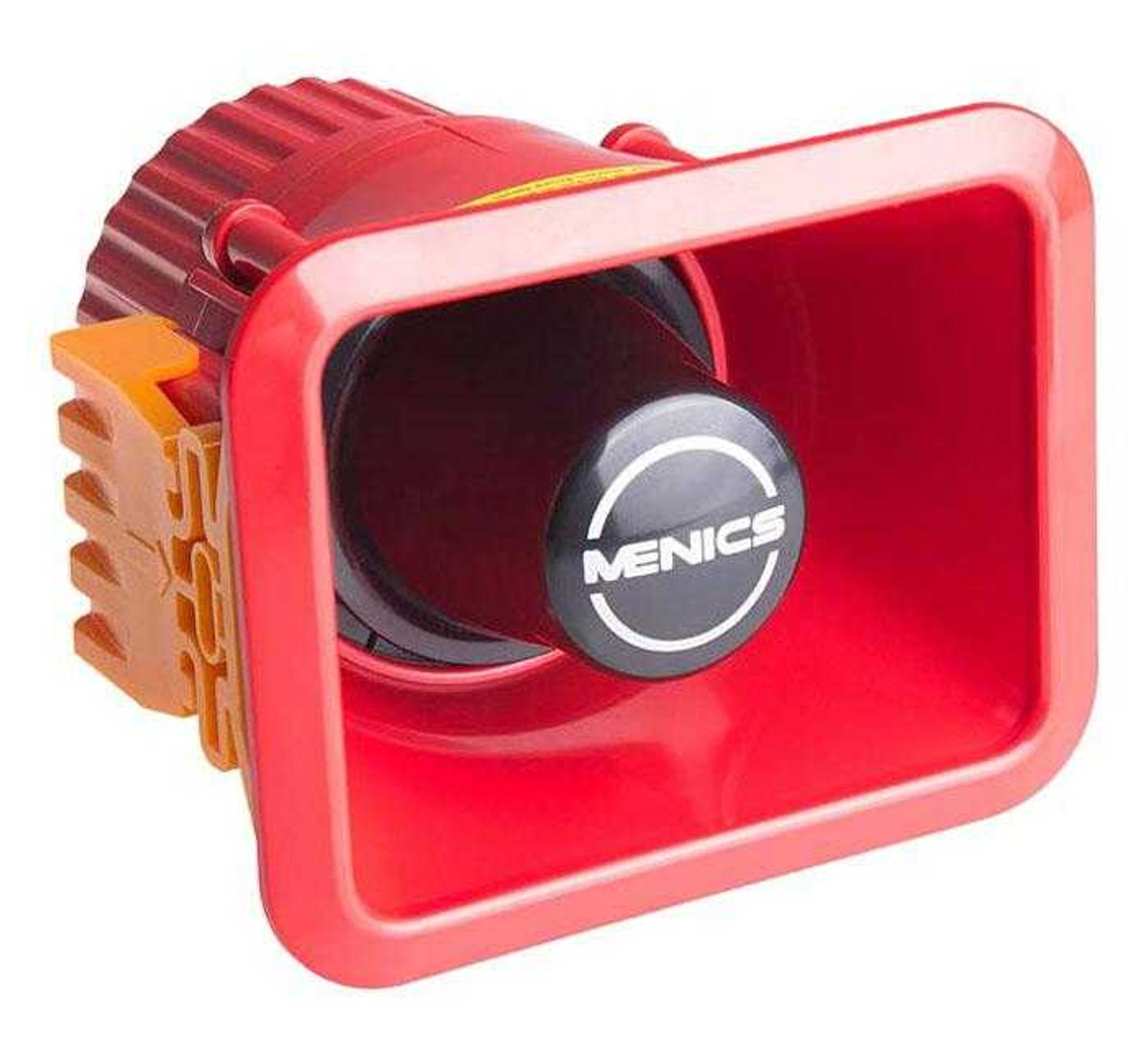

Buzzer, 105dB+/-5%, IP65 Front Face, 24VDC, Red, 3 Sirens, Panel Mount, Terminal Wiring
