MSP-LBS-FF-R
Menics

MSP-LBS-FF-R

Alt: MSP Series

$153.45

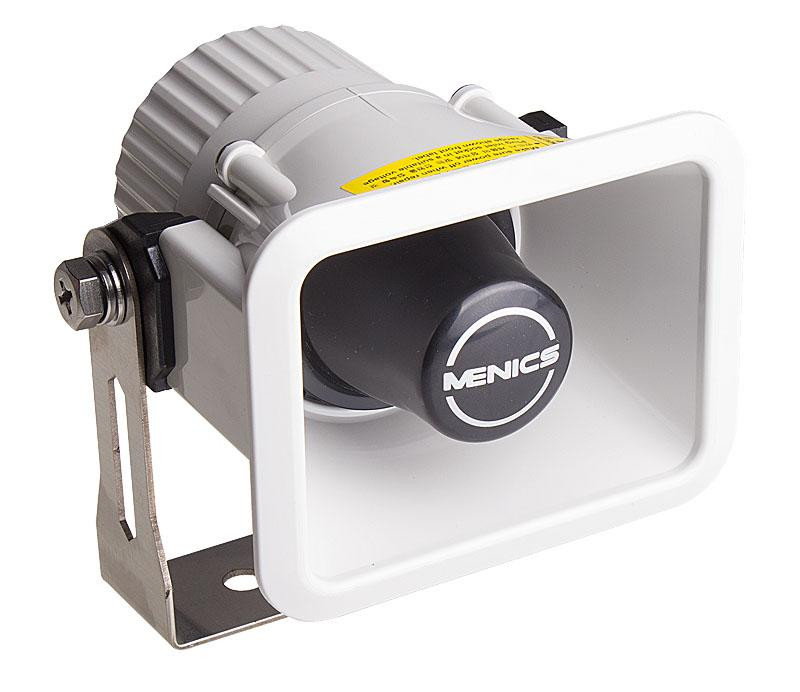

Buzzer, 105dB+/-5%, IP65, 100-240VAC, Red, 3 Sirens, Bracket Mount, Prewired

Weight:
3.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
If not in stock we can generally ship in 1 to 2 days!
Description
Buzzer, 105dB+/-5%, IP65, 100-240VAC, Red, 3 Sirens, Bracket Mount, Prewired

Features Include:

  • Power Supply: 12/24 VDC
  • Allowable Voltage Range: 12V ± 5%, 24V ±10%
  • Current Consumption:
    • 12VDC Melody type: 0.22A, Siren type: 0.8A
    • 24VDC Melody type: 0.12A, Siren type: 0.4A
  • Maximum Volume: Melody type: 100±5dB(1M), Siren type: 110±5dB(1M)
  • Number of Channels: Sound types: 3 Channels
  • Sound Type: Melody: Foe Elise, Sweet Home, Cuckoo Waltz Siren: Fire trucks, Police cars, Ambulance
  • Volume Control: None
  • Insulation resistance: Over 100MΩ(500VDC mega btwn terminal and case)
  • Withstand voltage: 500VAC 50/60Hz 1 min.
  • Temperature: Working temp: -20 ~ 50°C Storage temp: -20 ~ 65°C
  • Operating humidity: 45 ~ 85% RH
  • Recommended wire size: 45 ~ 85% RH
  • Panel tightening screw fastening torque: M8 Bolt: 5 ~ 6 N.m
  • Weight: 588g (MSP-LB type)

Panel tightening screw fastening torque

Features Include:

  • Power Supply: 12/24 VDC
  • Allowable Voltage Range: 12V ± 5%, 24V ±10%
  • Current Consumption:
    • 12VDC Melody type: 0.22A, Siren type: 0.8A
    • 24VDC Melody type: 0.12A, Siren type: 0.4A
  • Maximum Volume: Melody type: 100±5dB(1M), Siren type: 110±5dB(1M)
  • Number of Channels: Sound types: 3 Channels
  • Sound Type: Melody: Foe Elise, Sweet Home, Cuckoo Waltz Siren: Fire trucks, Police cars, Ambulance
  • Volume Control: None
  • Insulation resistance: Over 100MΩ(500VDC mega btwn terminal and case)
  • Withstand voltage: 500VAC 50/60Hz 1 min.
  • Temperature: Working temp: -20 ~ 50°C Storage temp: -20 ~ 65°C
  • Operating humidity: 45 ~ 85% RH
  • Recommended wire size: 45 ~ 85% RH
  • Panel tightening screw fastening torque: M8 Bolt: 5 ~ 6 N.m
  • Weight: 588g (MSP-LB type)
