Menics
MSP-TPM-FF
Buzzer, 100dB+/-5%, IP65 Front Face, 100-240VAC, Ivory, 3 Melodies, Panel Mount, Terminal Wiring
$113.77
MSP-TPM-FF-R
Alt: MSP Series
$113.77
Buzzer, 100dB+/-5%, IP65 Front Face, 100-240VAC, Red, 3 Melodies, Panel Mount, Terminal Wiring
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description

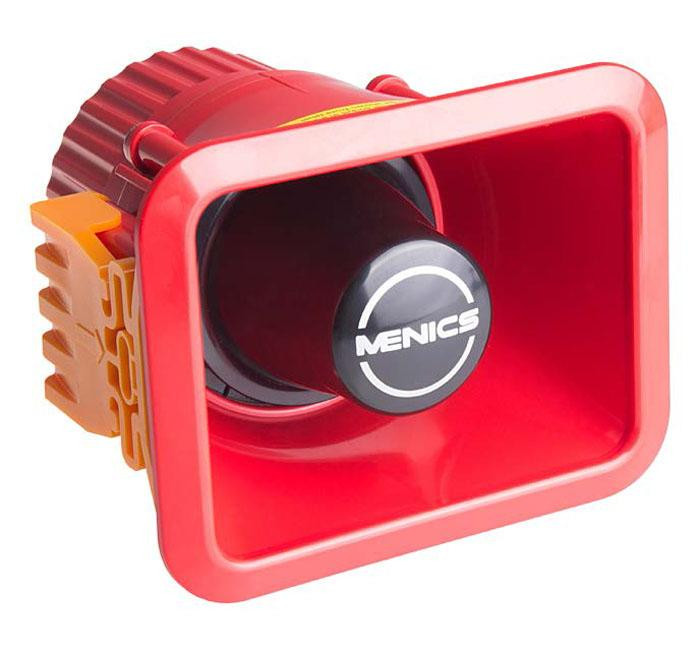

Buzzer, 100dB+/-5%, IP65 front face, 100-240VAC, Red, 3 Melodies, Panel Mount, Terminal Wiring
Features Include:
- Power Supply: 12/24 VDC
- Allowable Voltage Range: 12V ± 5%, 24V ±10%
- Current Consumption:
- 12VDC Melody type: 0.22A, Siren type: 0.8A
- 24VDC Melody type: 0.12A, Siren type: 0.4A
- Maximum Volume: Melody type: 100±5dB(1M), Siren type: 110±5dB(1M)
- Number of Channels: Sound types: 3 Channels
- Sound Type: Melody: Foe Elise, Sweet Home, Cuckoo Waltz Siren: Fire trucks, Police cars, Ambulance
- Volume Control: Melody: Dial type Siren: None
- Insulation resistance: Over 100MΩ(500VDC mega btwn terminal and case)
- Withstand voltage: 500VAC 50/60Hz 1 min.
- Temperature: Working temp: -20 ~ 50°C Storage temp: -20 ~ 65°C
- Operating humidity: 45 ~ 85% RH
- Recommended wire size: 45 ~ 85% RH
- Power input terminal screw tightening torque: 0.4 ~ 0.6 N.m
- Panel tightening screw fastening torque: 0.7 ~ 0.8 N.m
- Weight: 436g (MSP-TP Type)
