$118.61
MSP-LBM-01
Alt: MSP Series
$118.61

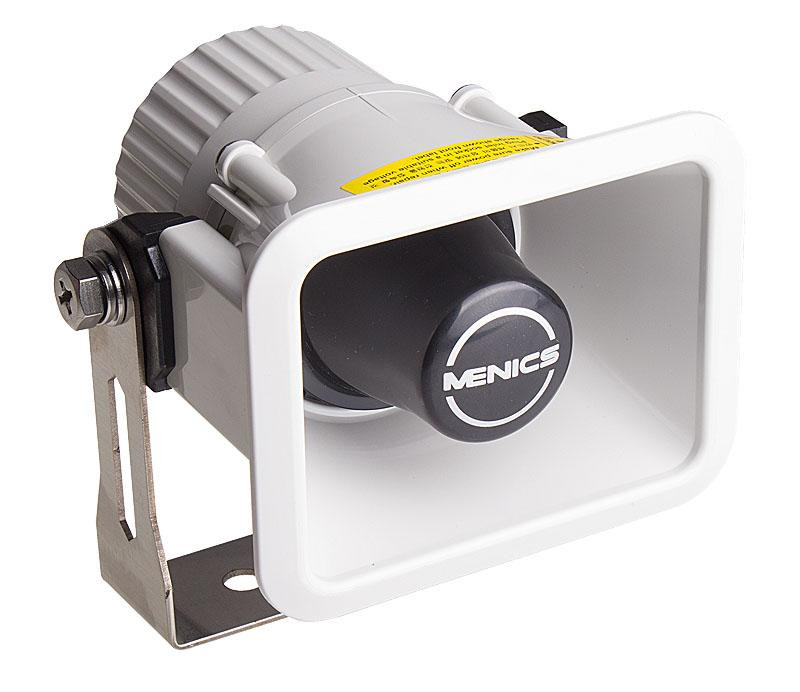

Buzzer, 100dB+/-5%, IP65, 12VDC, Ivory, 3 Melodies, Bracket Mount, Prewired
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
Buzzer, 100dB+/-5%, IP65, 12VDC, Ivory, 3 Melodies, Bracket Mount, Prewired
Specifications
All - Approvals
RoHS Compliant
All - Specific Ratings
IP65
Series
MSP Series
Size
Rectangular
Options
No Special Options
Tone
Multi-Tone
All - Voltage
12VDC
Warranty
3 Years
Alternate Part Number
MSP Series
Weight
3
Features Include:
- Power Supply: 12/24 VDC
- Allowable Voltage Range: 12V ± 5%, 24V ±10%
- Current Consumption:
- 12VDC Melody type: 0.22A, Siren type: 0.8A
- 24VDC Melody type: 0.12A, Siren type: 0.4A
- Maximum Volume: Melody type: 100±5dB(1M), Siren type: 110±5dB(1M)
- Number of Channels: Sound types: 3 Channels
- Sound Type: Melody: Foe Elise, Sweet Home, Cuckoo Waltz Siren: Fire trucks, Police cars, Ambulance
- Volume Control: None
- Insulation resistance: Over 100MΩ(500VDC mega btwn terminal and case)
- Withstand voltage: 500VAC 50/60Hz 1 min.
- Temperature: Working temp: -20 ~ 50°C Storage temp: -20 ~ 65°C
- Operating humidity: 45 ~ 85% RH
- Recommended wire size: 45 ~ 85% RH
- Panel tightening screw fastening torque: M8 Bolt: 5 ~ 6 N.m
- Weight: 588g (MSP-LB type)
