Invertek
ODP-2-22010-1HF4B-MN
VFD, 1hp, 0.75kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, T661:T757, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Co
$780.96$780.96 -
Invertek
ODE-3-220105-1F4A-01
VFD, 1.5hp, 10.5 Amp (10.5A), 200-240V, Single Phase Input/Output, Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, Frame 2, Optidrive E3 Series, Simple Setup with 14 Basic Parameters and Functions
$734.40$734.40 -
Invertek
ODV-3-460220-301N-MN
VFD, 20hp, 22A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,319.36$2,319.36 -
Available Now!
Available Now!Invertek
ODE-3-110070-1F12-01
VFD, 0.5hp, 7A, 110-115V, Single Phase Input/Output, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions, For Use with PSC or Shaded Pole Single Phase Motors
$386.40$386.40 -
Invertek
ODP-2-66100-3H04N-MN
VFD, 100hp, 105A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$7,992.00$7,992.00 -
Invertek
ODP-2-34075-3HF42-MN
VFD, 7.5hp, 14A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,125.60$1,125.60 -
Invertek
OPT-2-ISOLO-S5
Local Isolator (Frame Size 5), Dimensions: 230 x 235 x 100mm (HWD), IP55/NEMA 12
$405.60$405.60 -
Available Now!
Available Now!Invertek
ODE-3-220105-1F4A
VFD, 3hp, 2.2kW, 10.5A, 200-240V, Single Phase Input/3 Phase Output, Keypad, EMC Filter, NEMA 4X, IP66 Outdoor Non-Switched, Frame 2: 10.1 x 7.4 x 7.2", 257 x 188 x 182mm (HWD)
$571.20$571.20 -
Invertek
ODV-3-540900-3F1N-MN
VFD, 60hp, 90A, 380-480V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$3,670.08$3,670.08 -
Available Now!
Available Now!Invertek
ODE-3-110043-101B
VFD, 1hp, 4.3A, 110-115V, Single Phase Input/3 Phase Output, Keypad, Potentiometer, Disconnect Switch, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$549.60$549.60 -
Invertek
ODP-2-22010-1HF4A-MN
VFD, 1hp, 0.75kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Ourdoor Non-Switched, Frame 2: 10.1 x 7.4 x 7.2", 257 x 188 x 182mm (HWD)
$680.64$680.64 -
Invertek
OPT-2-ISOLO-S4
Local Isolator (Frame Size 4), Dimensions: 170 x 173 x 80mm (HWD), IP55/NEMA 12
$331.20$331.20
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

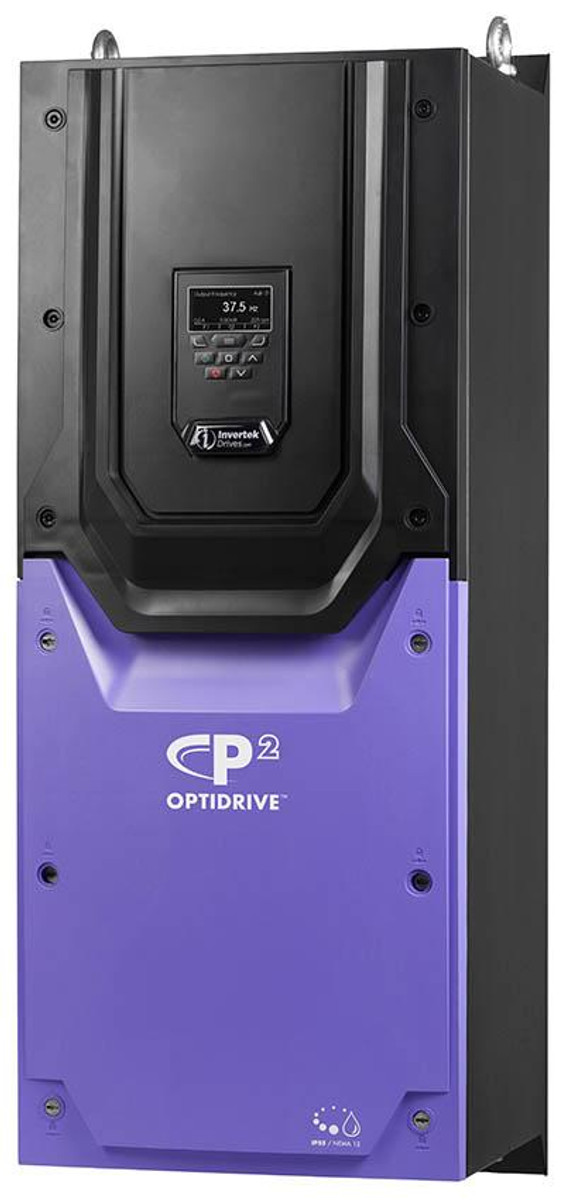

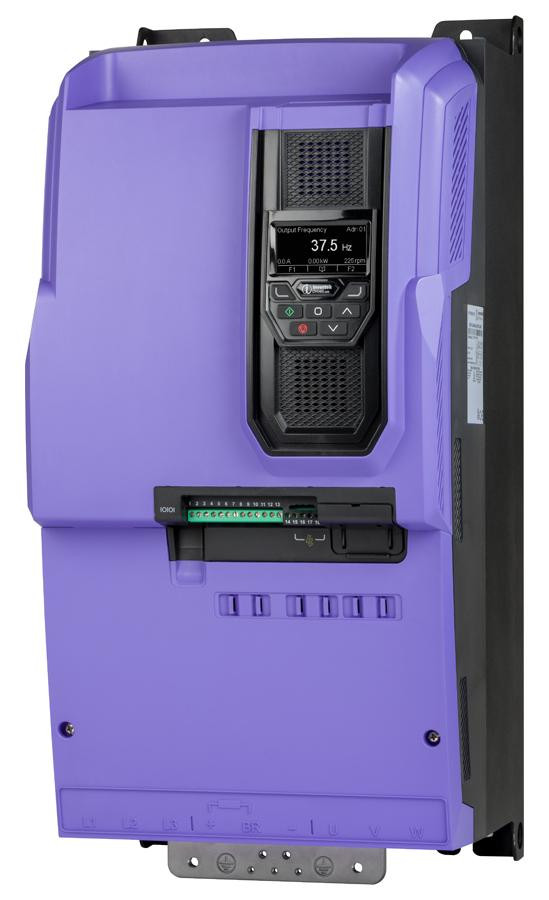

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

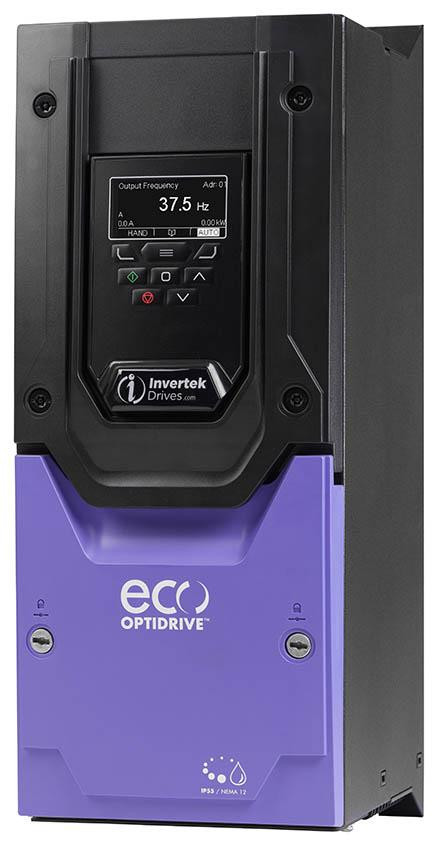

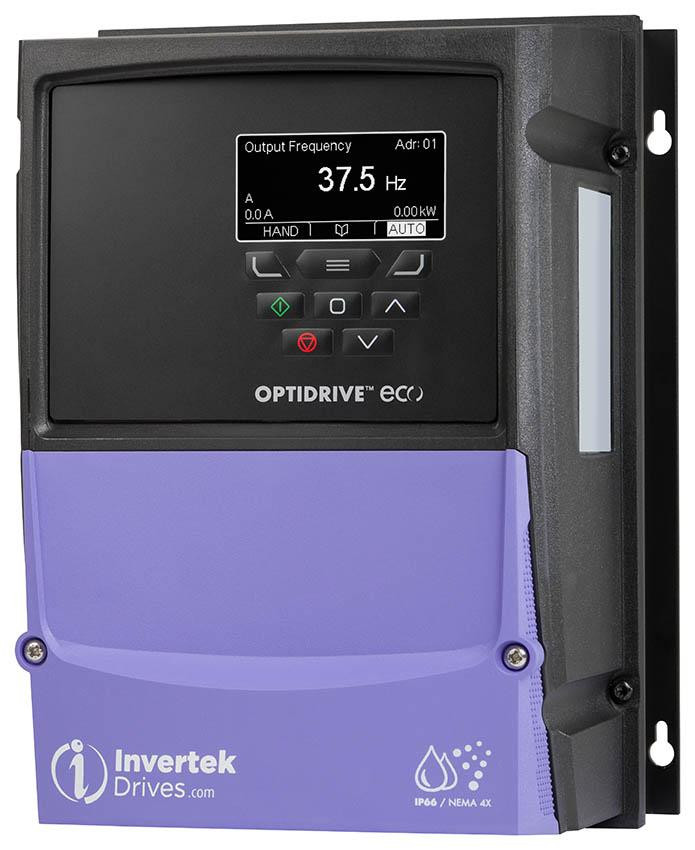

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
