Invertek

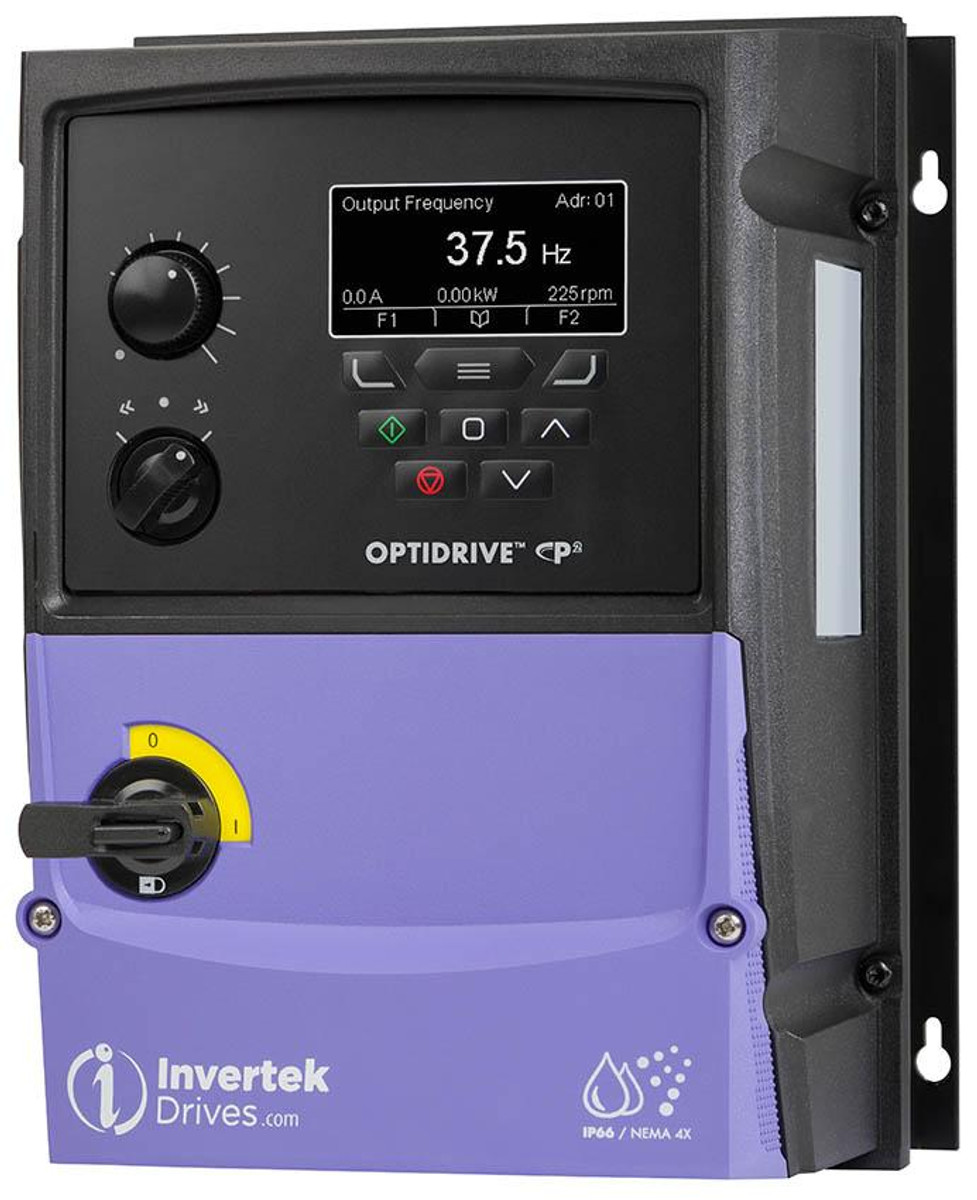

ODP-2-22010-3HF4B-MN
VFD, 1hp, 4.3 Amp (4.3A), 200-240V, 3 Phase Input/Output, TFT Keypad, Potentiometer, Disconnect Switch, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, High Performance AC Drive, OPTIDRIVE P2 Series, Adv
$879.36$879.36 -
Invertek
ODV-3-460340-3012-MN
VFD, 30hp, 34A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,782.08$2,782.08 -
Invertek
ODV-3-260031-3012-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$700.32$700.32 -
Invertek

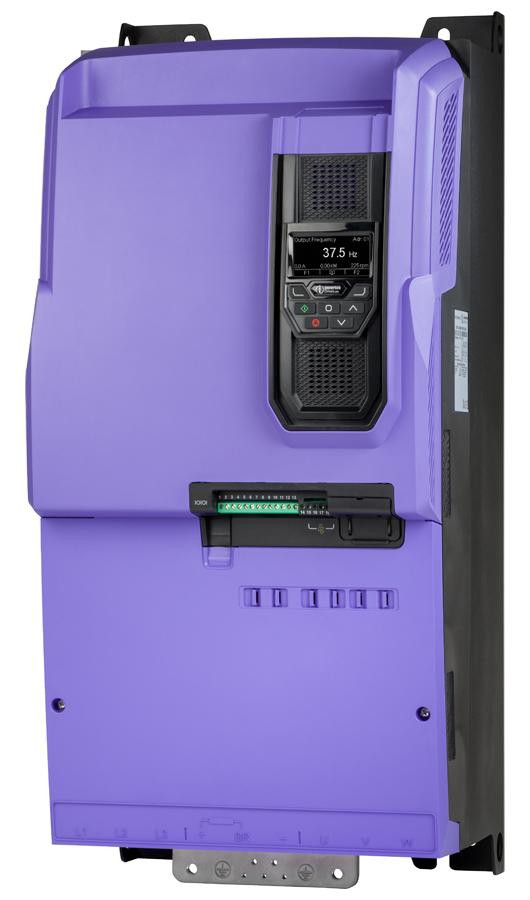

ODP-2-62040-3HF42-MN
VFD, 40hp, 110A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$4,839.36$4,839.36 -
Invertek
OPT-2-BNTIP-IN
Communication Module, Bacnet IP Plug-in Interface, 50 x 52 x 22mm (HWD), Optidrive P2 Communication Interface
$338.40$338.40 -
Invertek
ODE-3-220105-1F4B-01
VFD, 1.5hp, 10.5 Amp (10.5A), 200-240V, Single Phase Input|Output, LED Keypad, Potentiometer, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 2: 10.12 x 7.4 x 7.17" (HWD)
$830.40$830.40 -
$532.80$532.80 -
Invertek
ODP-2-34100-3HF42-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance, 150% Overload for 60 Seconds, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control
$1,263.36$1,263.36 -
Invertek
ODV-3-460280-301N-MN
VFD, 25hp, 28A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,556.96$2,556.96 -
Invertek

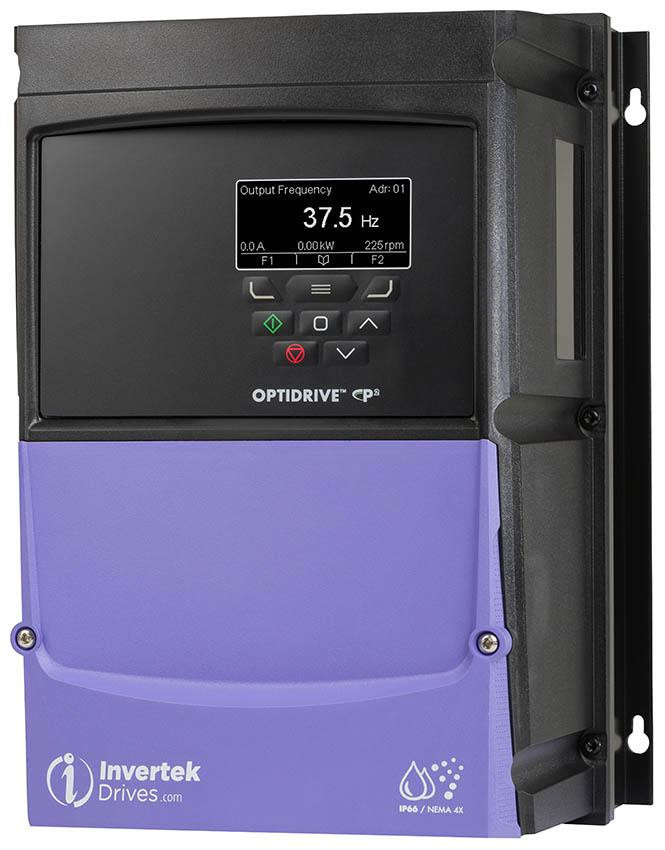

ODP-2-22010-3HF4A-MN
VFD, 1hp, 4.3A, 200-240V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$763.68$763.68 -
Invertek
ODV-3-260021-301A-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT
$927.36$927.36 -
$338.40$338.40
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now

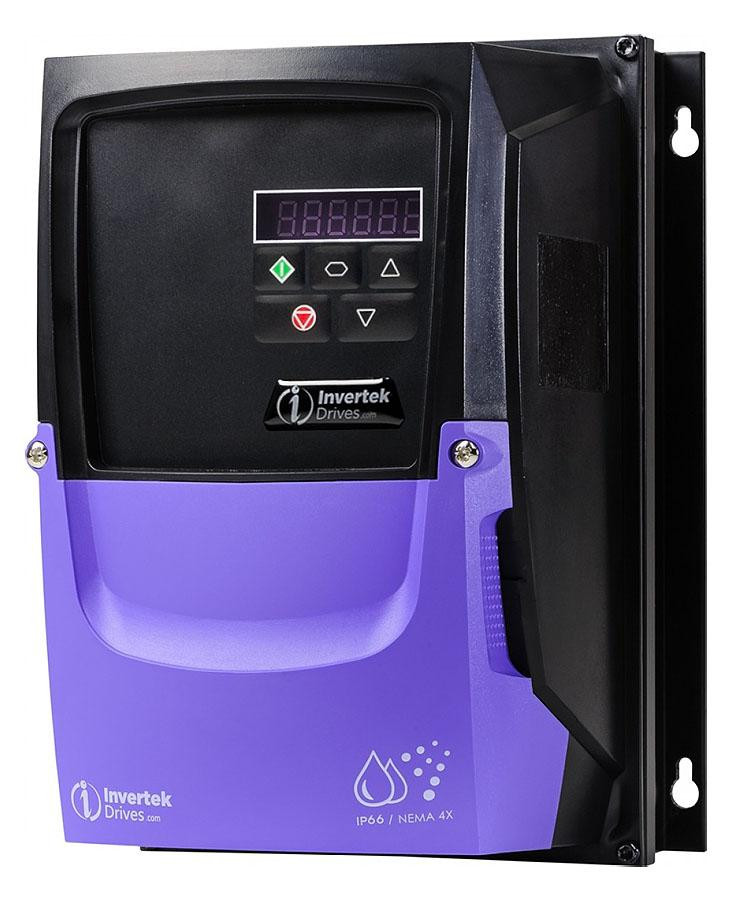

Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

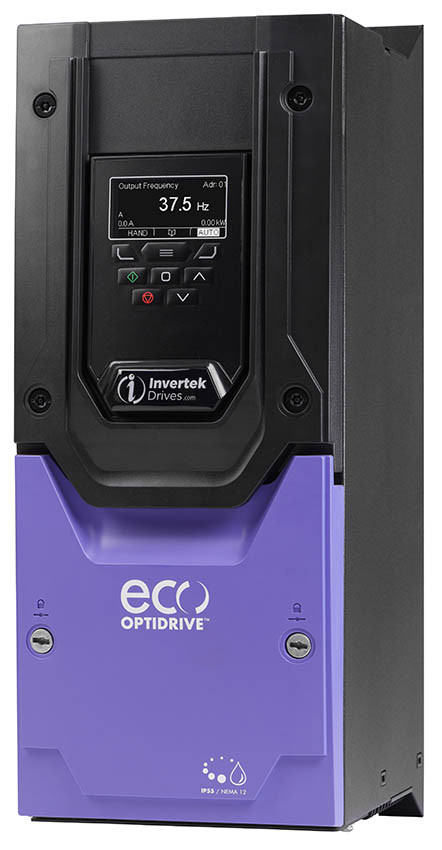

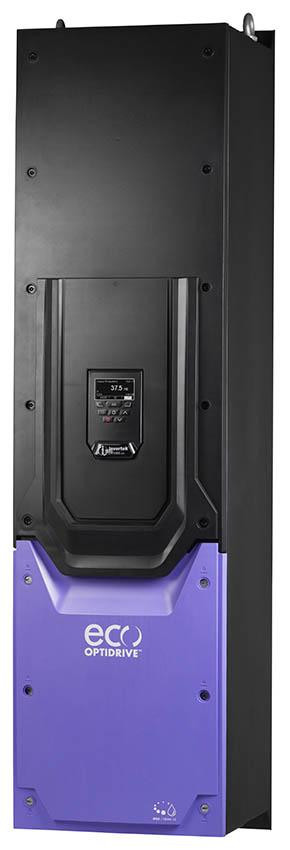

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
