Invertek
ODV-3-260031-301A-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT
$1,001.28$1,001.28 -
Invertek
ODP-2-62050-3HF42-MN
VFD, 50hp, 150A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$5,912.64$5,912.64 -
Available Now!
Available Now!Invertek
ODE-3-110023-101A
VFD, 0.5hp, 2.3 Amp (2.3A), 110-115V, Single Phase Input/3 Phase Output, Keypad, LED Display, No EMC Filter/Internal Brake, Frame 1, NEMA 4X/IP66 Outdoor Non-Switched, Optidrive E3 Series, Simple Setup 14 Basic Parameters & Functions
$393.60$393.60 -
Invertek
ODE-3-220070-1F4A
VFD, 2hp, 1.5kW, 7 Amp (7A), 200-240V, Single Phase Input/3 Phase Output, Keypad, EMC Filter, NEMA 4X, IP66 Outdoor Non-Switched, Frame 2: 10.1 x 7.4 x 7.2", 257 x 188 x 182mm (HWD)
$504.00$504.00 -
Invertek
ODP-2-34100-3HF4B-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, TFT Keypad, Potentiometer, Disconnect Switch, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control
$1,740.96$1,740.96 -
Invertek
ODP-2-22020-1HF42-MN
VFD, 2hp, 7A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$588.96$588.96 -
Invertek
ODV-3-460340-301N-MN
VFD, 30hp, 34A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,771.04$2,771.04 -
Invertek
ODV-3-260031-301E-MN
VFD, 2hp, 3.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Contro
$1,047.36$1,047.36 -
Invertek
ODP-2-62040-3HF4N-MN
VFD, 40hp, 110A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$5,412.96$5,412.96 -
Invertek
ODE-3-220070-1F42
VFD, 2hp, 7A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$381.60$381.60 -
Available Now!
Available Now!Invertek
ODE-3-110023-1012
VFD, 0.5hp, 2.3 Amp (2.3A), 110-115V, Single Phase Input/3 Phase Output, No Display, EMC Filter or Internal Brake Transistor, Frame 1, IP20, General Purpose AC Drive, Optidrive E3 Series, Simple Setup with 14 Basic Parameters and Functions
$235.20$235.20 -
Invertek
ODP-2-34100-3HF4A-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,516.32$1,516.32
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

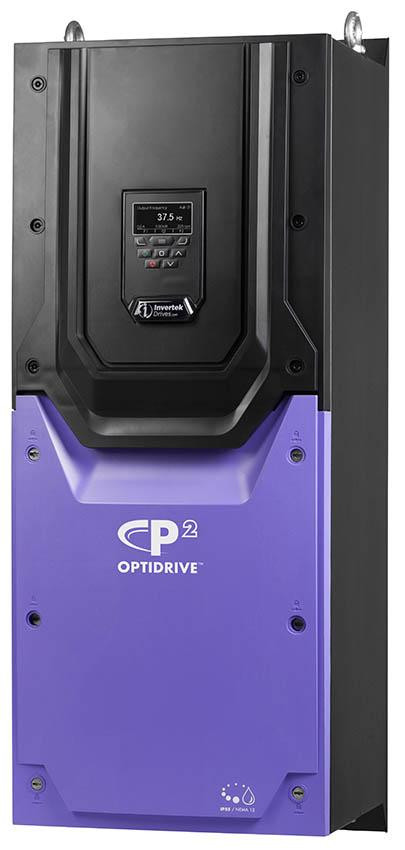

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
