Invertek
ODP-2-62060-3HF42-MN
VFD, 60hp, 180A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$6,715.68$6,715.68 -
Invertek
ODP-2-36100-3H042-MN
VFD, 10hp, 12A, 500-600V, 3 Phase Input/Output, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,385.28$1,385.28 -
Available Now!
Available Now!Invertek
ODV-3-260041-3012-MN
VFD, 3hp, 4.1A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$722.19$722.19 -
Invertek
ODV-3-460430-301N-MN
VFD, 40hp, 43A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$3,019.68$3,019.68 -
Available Now!
Available Now!Invertek
ODE-3-420460-3F4A
VFD, 15hp, 46A, 200-240V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$1,737.60$1,737.60 -
Invertek
OPT-2-CANIO-IN
External Remote I/O Interface Expansion Module with CANOpen, DIN Rail Mounted, Remote I/O Interface, 90 x 72 x 59mm (HWD), Optidrive P2 Options
$252.00$252.00 -
Invertek
ODP-2-62050-3HF4N-MN
VFD, 50hp, 150A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$6,617.76$6,617.76 -
Available Now!
Available Now!Invertek
ODE-3-220070-1F4B
VFD, 2hp, 1.5kW, 7 Amp (7A), 200-240V, Single Phase Input/3 Phase Output, LED Keypad, Potentiometer, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 2: 10.1 x 7.4 x 7.17" (HWD), Use ODE-3-120070-1F
$662.40$662.40 -
Available Now!
Available Now!Invertek
ODE-3-110023-101B
VFD, 0.5hp, 2.3 Amp (2.3A), 110-115V, Single Phase Input/3 Phase Output, Keypad, LED Display, Potentiometer, Frame 1, NEMA 4X, IP66 Outdoor with Disconnect Switch, Optidrive E3 Series, Simple Setup with 14 Basic Parameters and Functions
$504.00$504.00 -
Invertek
ODP-2-34150-3HF42-MN
VFD, 15hp, 24A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,376.64$1,376.64 -
Invertek
ODV-3-460430-3012-MN
VFD, 40hp, 43A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$3,035.04$3,035.04 -
Available Now!
Available Now!Invertek
ODE-3-420460-3F42
VFD, 15hp, 46A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$1,224.00$1,224.00
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

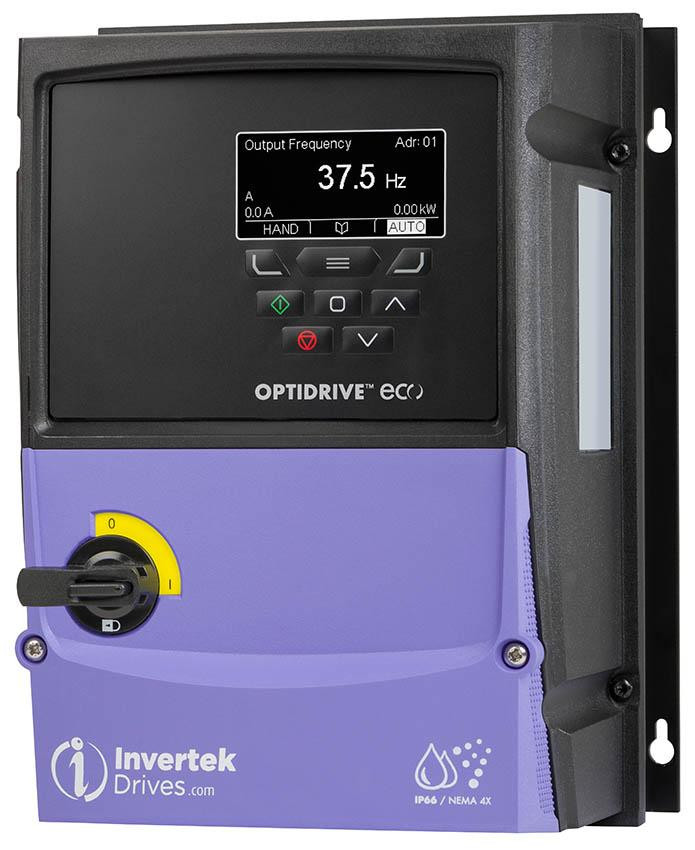

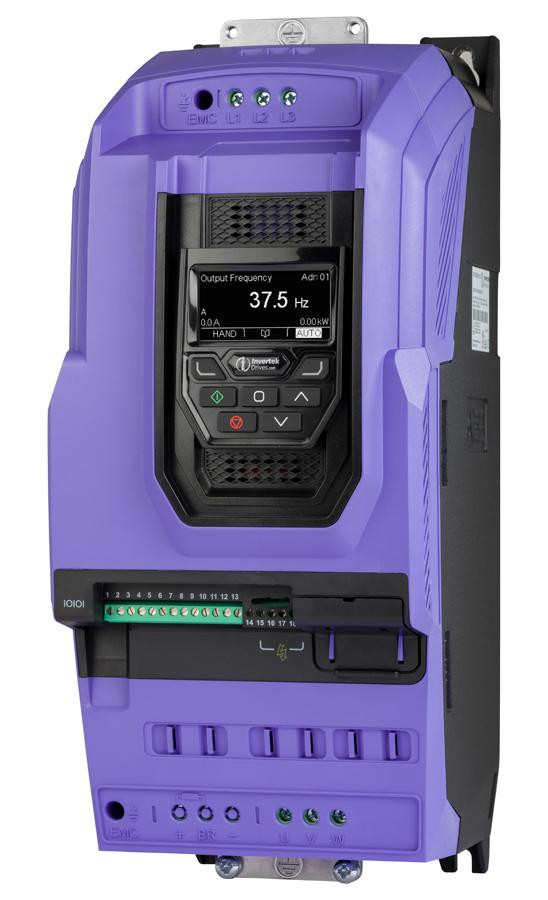

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
