Invertek
ODP-2-26010-3H04B-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, Potentiometer, Disconnect Switch, NEMA 4X, IP66 Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$896.64$896.64 -
Invertek
ODV-3-220105-1F12-MN
VFD, 3hp, 10.5A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$643.68$643.68 -
Invertek
ODV-3-360120-301E-MN
VFD, 10hp, 12A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Contro
$1,675.68$1,675.68 -
Available Now!
Available Now!Invertek
ODE-3-120070-301A
VFD, 2hp, 7A, 200-240V, 3 Phase Input/Output, Keypad, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$441.60$441.60 -
Invertek
ODP-2-46250-3H042-MN
VFD, 25hp, 28A, 500-600V, 3 Phase Input/Output, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,568.00$2,568.00 -
Available Now!
Available Now!Invertek
ODE-3-420300-3F4A
VFD, 10hp, 30A, 200-240V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$1,204.80$1,204.80 -
Invertek
ODP-2-26010-3H04A-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$779.04$779.04 -
Invertek
ODV-3-641500-3F1N-MN
VFD, 120hp, 150A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units (Free Non-Expedited LTL Frei
$5,412.96$5,412.96 -
Invertek
ODV-3-220070-3F1A-MN
VFD, 2hp, 7 Amp (7A), 200-240V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, In
$916.32$916.32 -
Invertek
ODP-2-46200-3H04N-MN
VFD, 20hp, 22A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,590.08$2,590.08 -
Invertek
ODV-3-360120-3012-MN
VFD, 10hp, 12A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$1,385.28$1,385.28 -
Available Now!
Available Now!Invertek
ODE-3-120070-3012
VFD, 2hp, 7A, 200-240V, 3 Phase Input/Output, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$307.20$307.20
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now

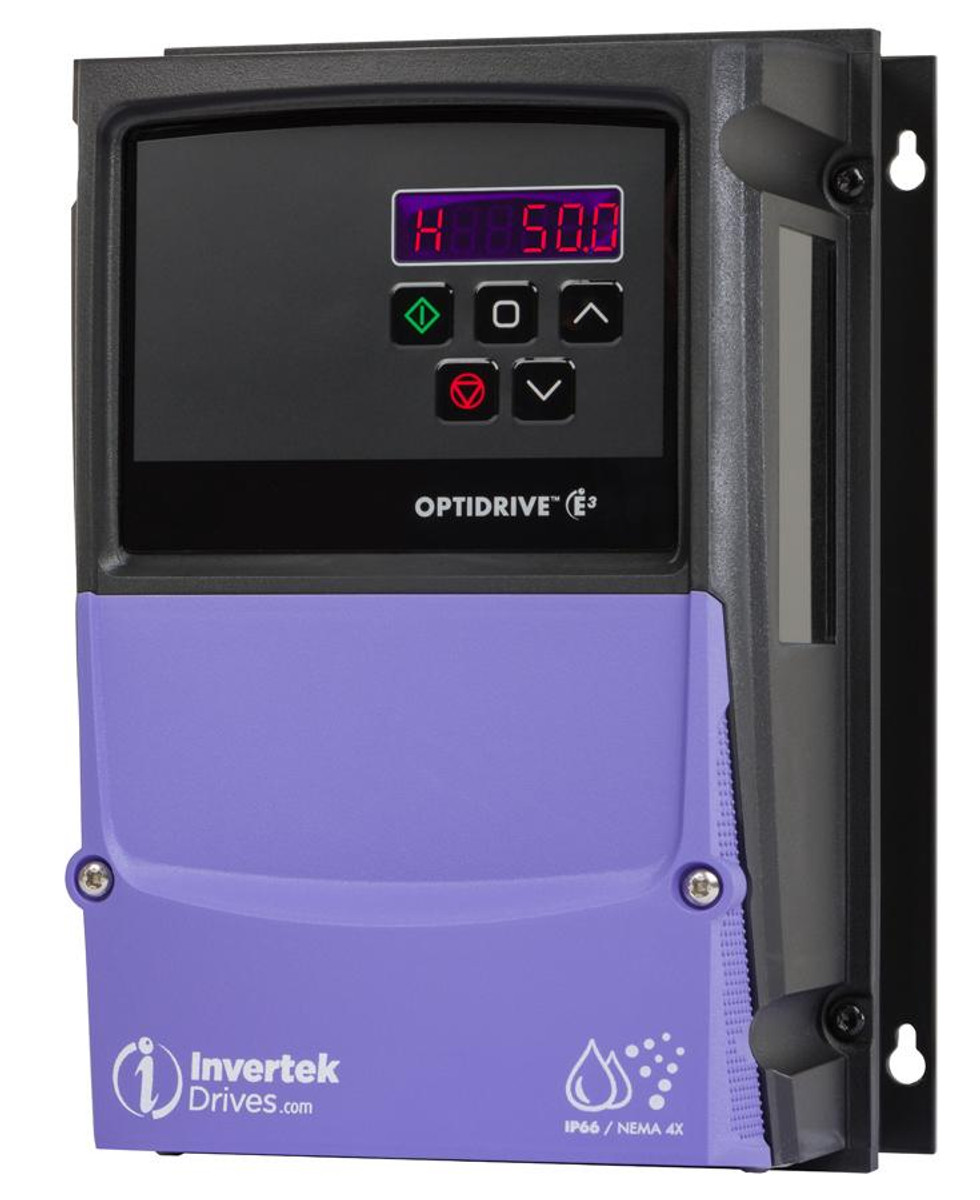

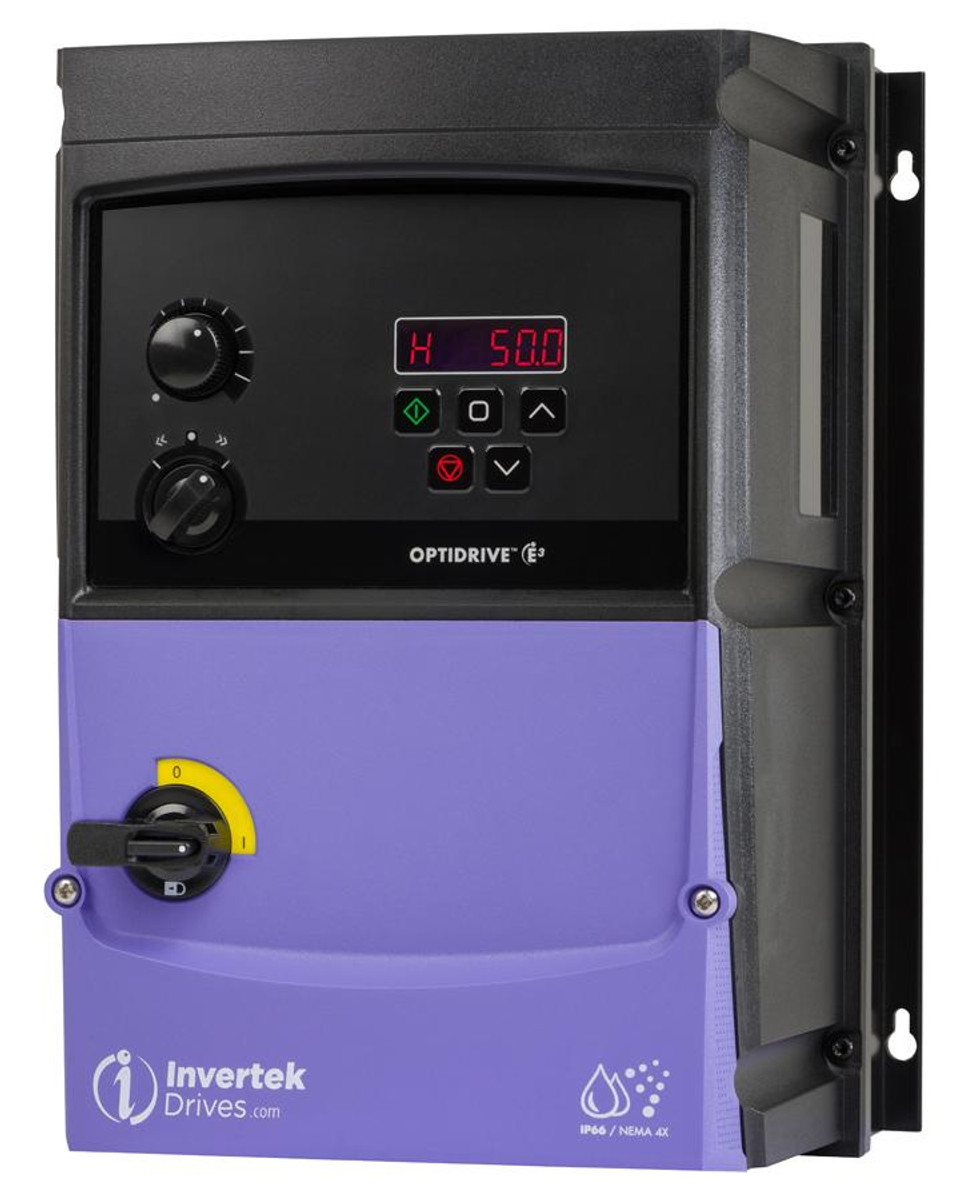

Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

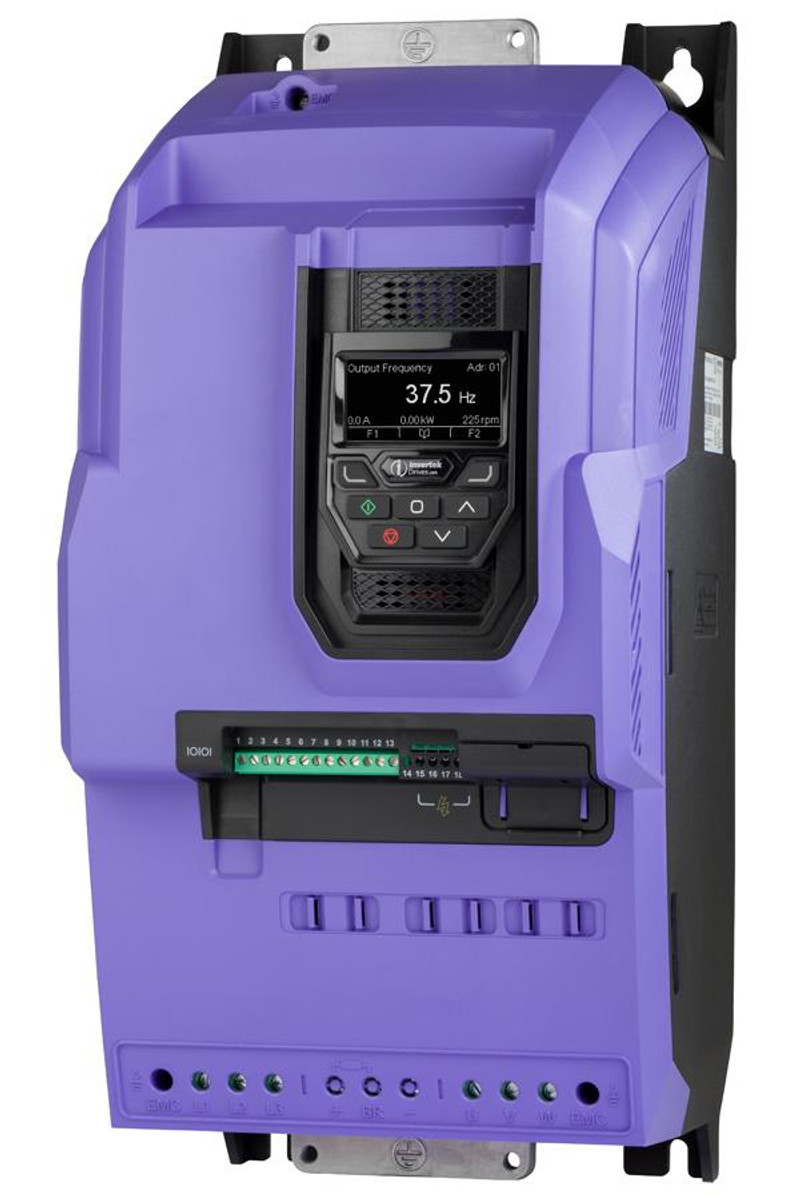

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

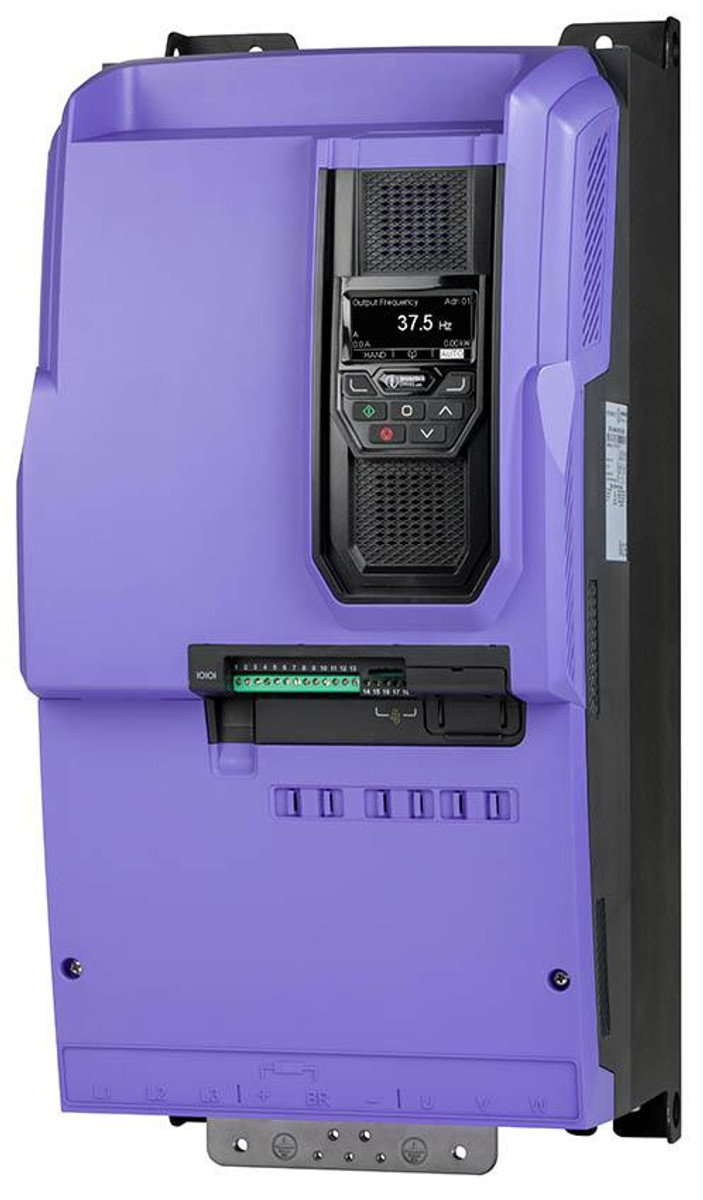

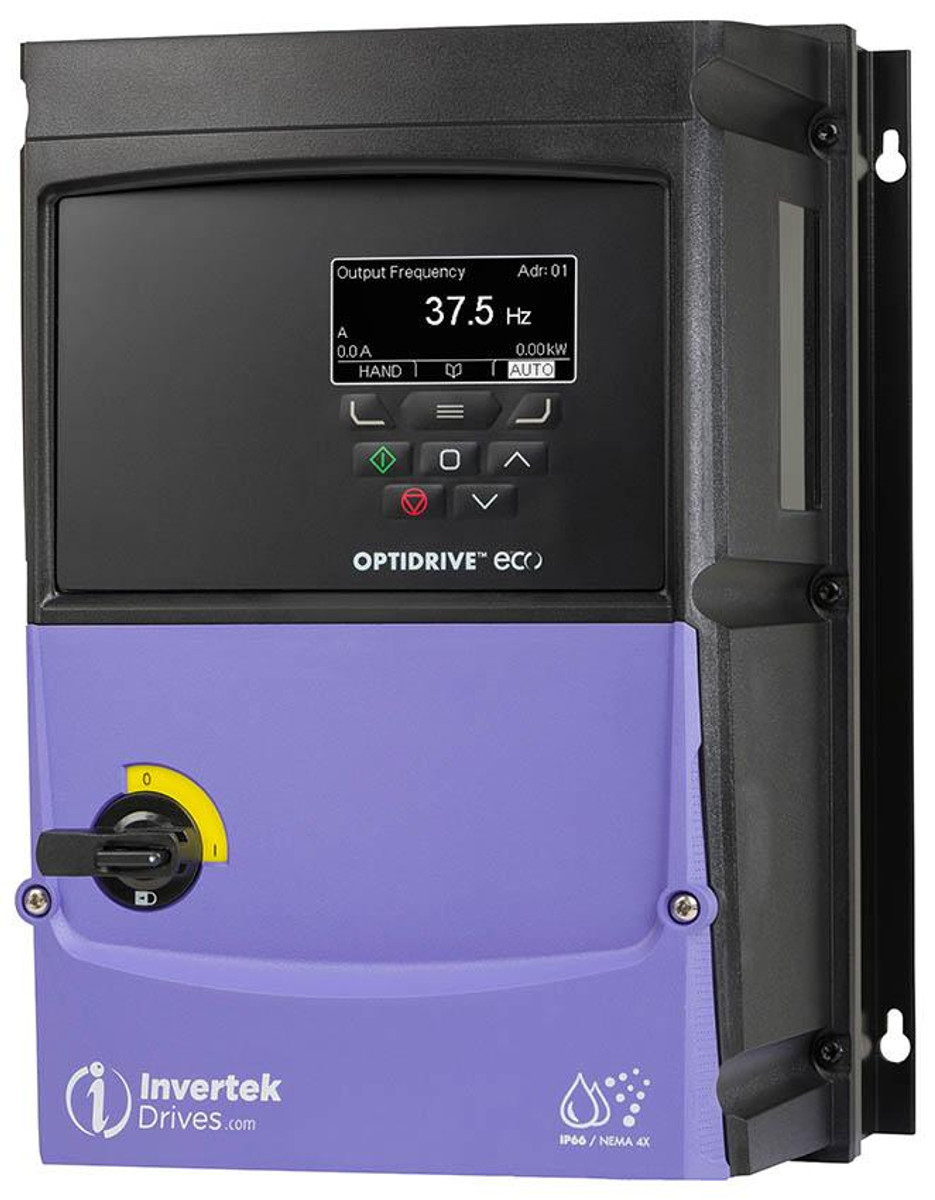

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
