Available Now!
Available Now!Invertek
ODE-3-320153-1042
VFD, 5hp, 15.3A, 200-240V, Single Phase Input/3 Phase Output, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$724.80$724.80 -
Invertek
ODP-2-52020-3HF4N-MN
VFD, 20hp, 61A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,884.32$2,884.32 -
Invertek
ODP-2-24010-3HF4A-MN
VFD, 1hp, 2.2A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$708.96$708.96 -
Invertek
ODE-3-120070-1F1A-01
VFD, 1hp, 7 Amp (7A), 200-240V, Single Phase Input/Output, Keypad, EMC Filter, IP66 Outdoor Non-Switched, Optidrive E3 Series, Simple Setup with 14 Basic Parameters and Functions, For Use with PSC or Shaded Pole Single Phase Motors
$559.20$559.20 -
Invertek
ODV-3-220043-1F1E-MN
VFD, 1hp, 0.75kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, EMC Filter, No Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect, PCB Coating, Frame 2: 10.12 x 7.4 x 7.17", 257 x 188 x 182mm (HWD)
$859.68$859.68 -
Invertek
ODV-3-560650-3012-MN
VFD, 60hp, 65A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$4,086.72$4,086.72 -
Available Now!
Available Now!Invertek
ODE-3-340180-3F42
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$777.60$777.60 -
Invertek
ODP-2-52020-3HF42-MN
VFD, 20hp, 61A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,614.08$2,614.08 -
Invertek
ODV-3-320240-3F12-MN
VFD, 7.5hp, 24A, 200-240V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$947.04$947.04 -
Invertek
ODP-2-24010-3HF42-MN
VFD, 1hp, 2.2A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$593.28$593.28 -
Available Now!
Available Now!Invertek
ODE-3-120070-1F1A
VFD, 2hp, 0.75kW, 7 Amp (7A), 200-240V, Single Phase Input/3 Phase Output, Keypad, EMC Filter, NEMA 4X, IP66 Outdoor Non-Switched, Frame 1: 9.1 x 6.3 x 6.4", 232 x 161 x 162mm (HWD)
$441.60$441.60 -
Invertek
ODV-3-220043-1F12-MN
VFD, 1hp, 4.3A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units
$571.68$571.68
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

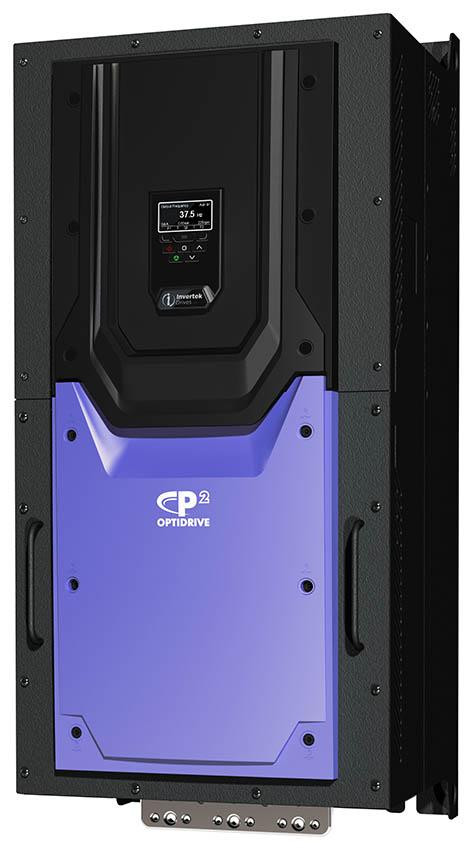

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

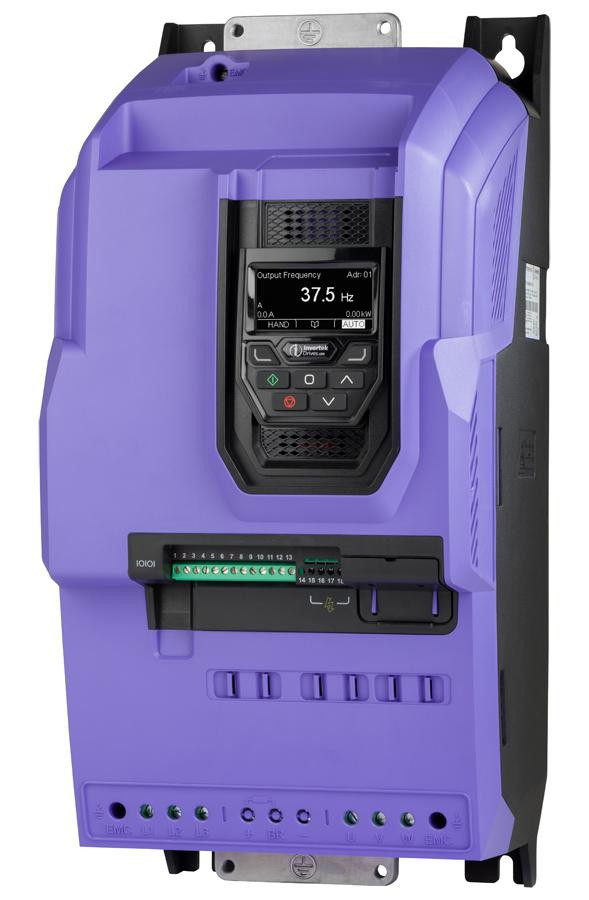

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
