Invertek
ODV-3-420300-101E-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 27
$2,599.20$2,599.20 -
Invertek
ODP-2-44200-3HF4B-MN
VFD, 20hp, 30 Amp, 15kW, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,662.08$2,662.08 -
Invertek
ODV-3-420240-101E-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 271m
$2,448.00$2,448.00 -
Invertek
ODP-2-34150-3HF4B-MN
VFD, 15hp, 24 Amp, 11kW, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 3: 12.2 x 8.3 x 9.3" (HWD), OptiDrive™ P2, Performance
$1,898.40$1,898.40 -
Invertek
ODV-3-320153-1F1E-MN
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 3: 12.2 x 8.3 x 10.7", 310 x 211 x 273
$1,524.00$1,524.00 -
Invertek
ODP-2-32075-3HF4B-MN
VFD, 7.5hp, 24 Amp, 5.5kW, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 3: 12.2 x 8.3 x 9.3" (HWD), OptiDrive™ P2, Performance
$1,898.40$1,898.40 -
Available Now!
Available Now!Invertek
ODP-2-44300-3HF4A-MN
VFD, 30hp, 22kW, 46 Amp, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,766.72$2,766.72 -
Invertek
ODP-2-44250-3HF4A-MN
VFD, 25hp, 18.5kW, 39 Amp, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,559.36$2,559.36 -
Invertek
ODP-2-44200-3HF4A-MN
VFD, 20hp, 15kW, 30 Amp, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,321.28$2,321.28 -
Available Now!
Available Now!Invertek
ODP-2-34150-3HF4A-MN
VFD, 15hp, 11kW, 24 Amp, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 3: 12.2 x 8.3 x 9.3" (HWD), OptiDrive™ P2, Performance
$1,658.40$1,658.40 -
Invertek
ODP-2-42150-3HF4A-MN
VFD, 15hp, 11kW, 46 Amp, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,792.64$2,792.64 -
Invertek
ODP-2-42100-3HF4A-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,574.72$2,574.72
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:

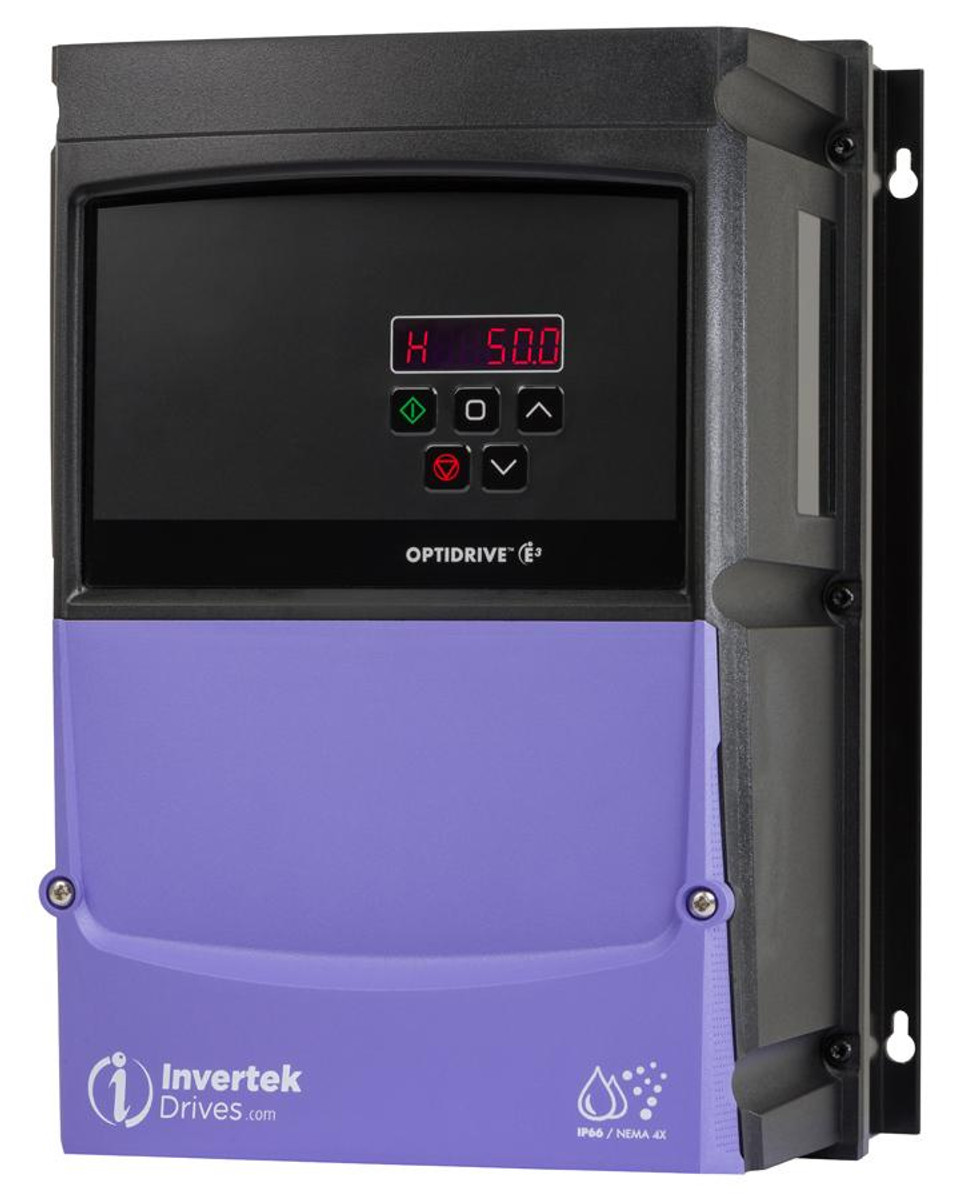

Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now

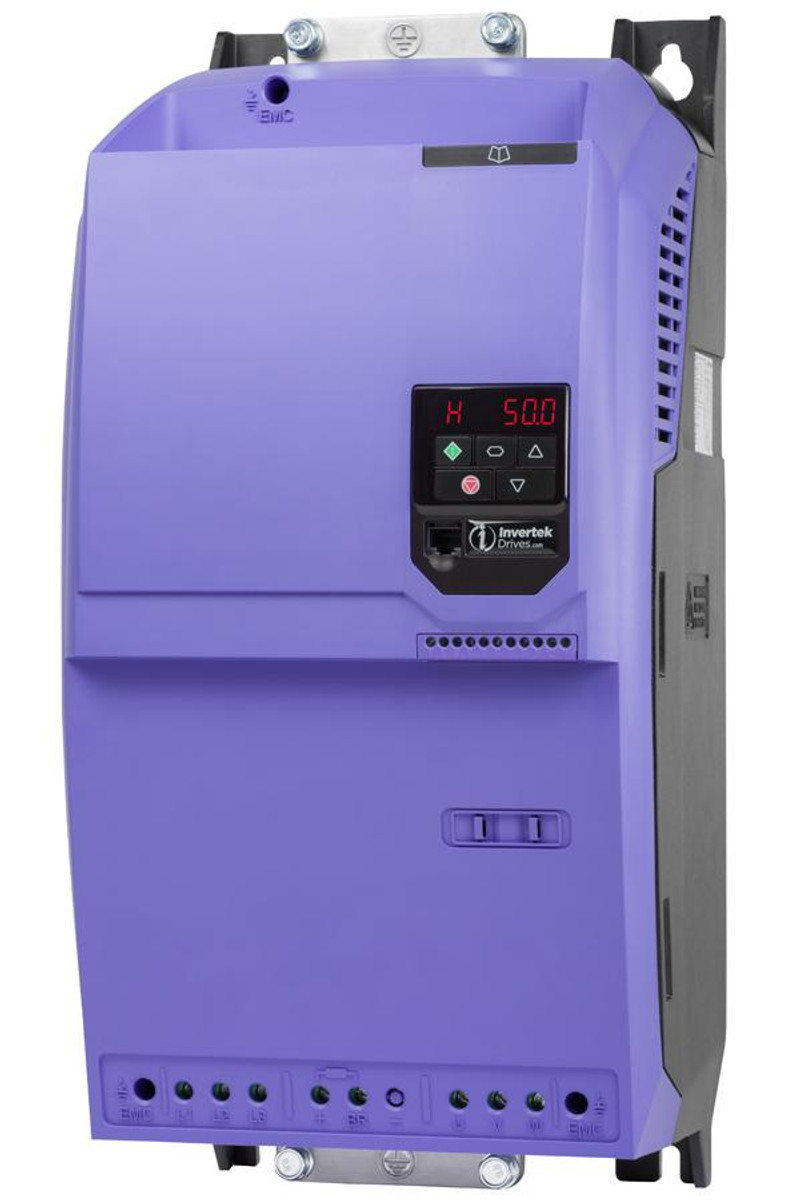

Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

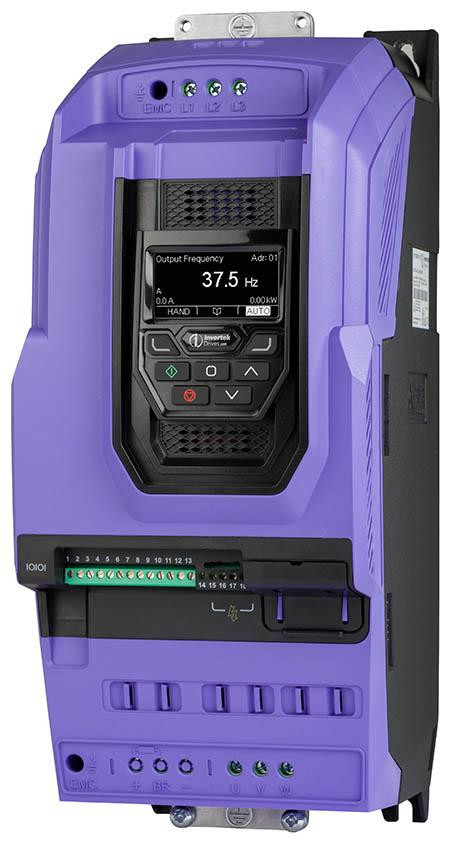

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
