Invertek
ODP-2-42100-3HF4B-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, 3 Phase, EMC Filter, TFT Display, Internal Brake Transistor, IP66 Switched Outdoor, Frame Size 4: 14.17 x 9.45 x 10.67" (360 x 240 x 271mm) (HWD)
$2,967.36$2,967.36 -
Invertek
ODP-2-64175-3HF42-MN
VFD, 175hp, 110kW, 202A, 380-480V, 3 Phase Input/Output, EMC Filter, Braking Resistor, TFT Display, IP20, 28.58 x 12.99 x 12.6" (HWD), OptiDrive™ P2, Performance (Free Non-Expedited LTL Freight from IL)
$7,931.04$7,931.04 -
Invertek
ODP-2-22030-1HF4B-MN
VFD, 3hp, 2.2kW, 10.5A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, Disconnect Switch, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, High Performance AC Drive, OPTIDRIVE P2
$885.60$885.60 -
Invertek
ODV-3-240095-3F1A-MN
VFD, 4kW/5hp, 9.5A, 380-400V, 3-Phase, Internal EMC Filter, No Brake Transistor, TFT Display, Size 2, 10.12H x 7.4W x 7.17D", IP66 Non-Switched Outdoor
$1,003.68$1,003.68 -
Available Now!
Available Now!Invertek
ODE-3-320153-1F4B
VFD, 5hp, 4kW, 15.3A, 200-240V, Single Phase Input/3 Phase Output, Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, IP66 Switched Outdoor, OPTIDRIVE E3 Series, Frame Size 3: 12.2 x 8.3 x 9.3", 310 x 211 x 235mm (HWD)
$1,255.20$1,255.20 -
Available Now!
Available Now!Invertek
ODE-3-320153-1F4A
VFD, 5hp, 15.3 Amp (15.3A), 200-240V, Single Phase Input/3 Phase Output, Keypad, LED Display, EMC Filter, Internal Brake Transistor, Frame 3, NEMA 4X/IP66 Outdoor Non-Switched, Optidrive E3, Simple Setup with 14 Basic Parameters & Functions
$1,010.40$1,010.40 -
Invertek
ODV-3-440390-3F12-MN
VFD, 25hp, 39A, 380-480V, 3 Phase, EMC Filter, TFT Display, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units
$1,888.80$1,888.80 -
Available Now!
Available Now!Invertek
ODE-3-540610-3F42
VFD, 40hp, 61A, 380-480V, 3 Phase, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$2,304.00$2,304.00 -
Invertek
ODE-3-520720-3F42
VFD, 25hp, 72A, 200-240V, 3 Phase, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$1,920.00$1,920.00 -
Available Now!
Available Now!Invertek
ODE-3-520610-3F42
VFD, 20hp, 61A, 200-240V, 3 Phase, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$1,800.00$1,800.00 -
Invertek
ODE-3-540720-3F42
VFD, 50hp, 72A, 380-480V, 3 Phase, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$2,808.00$2,808.00 -
Available Now!
Available Now!Invertek
ODE-3-120043-3012
VFD, 1hp, 4.3A, 200-240V, 3 Phase Input/Output, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$273.60$273.60
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now

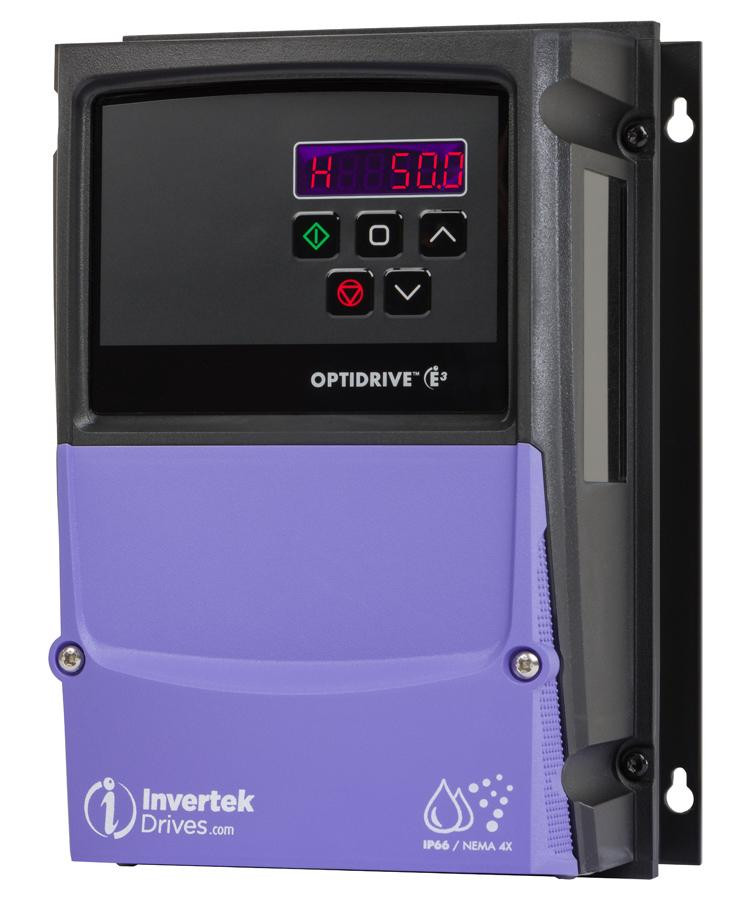

Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

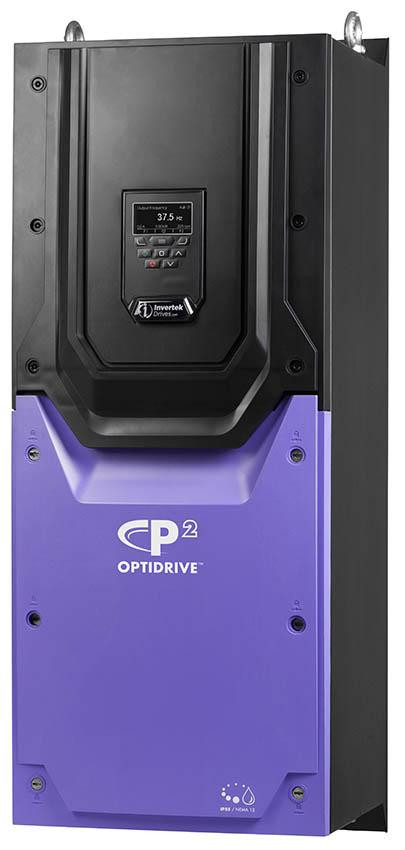

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
