Invertek
ODV-3-340180-3F1E-MN
7.5 kW (10HP), 18 A, 380-480 V, 3PH, 380-480 V 3 phase, standard, No brake transistor
$1,614.72$1,614.72 -
Invertek
ODV-3-340300-3F1A-MN
VFD, 20hp, 15kW, 30 Amp, 380-480V, 3 Phase Input, TFT Keypad Display, Internal EMC Filter, No Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 3: 12.2 x 8.31 x 8.86", 310 x 211 x 225mm (HWD)
$2,160.00$2,160.00 -
Invertek
ODV-3-440460-3F1E-MN
VFD, 30hp, 22kW, 46 Amp, 380-480V, 3 Phase Input /Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 4: 14.2 x 9.5 x 10.7", 360 x 24
$2,836.32$2,836.32 -
Invertek
ODV-3-440390-3F1A-MN
VFD, 25hp, 39A, 380-480V, 3 Phase Input/Output, EMC Filter, TFT Display, Keypad, NEMA 4X, IP66 Non Switched Indoor/Outdoor Enclosure, 14.17 x 9.45 x 10.28" or 360 x 240 x 261mm (HWD), ECO OPTIDRIVE Low Harmonic Series
$2,563.20$2,563.20 -
Invertek
ODV-3-440390-3F1E-MN
VFD, 25hp, 18.5kW, 39 Amp, 380-480V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 4: 14.2 x 9.5 x 10.7", 360 x 2
$2,622.72$2,622.72 -
Invertek
ODV-3-340300-3F1E-MN
VFD, 20hp, 15kW, 30 Amp, 380-480V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Size 3: 12.2 x 8.3 x 10.7", 310 x 211
$2,404.32$2,404.32 -
Invertek
ODV-3-420460-3F1E-MN
VFD, 15hp, 11kW, 46 Amp, 200-240V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240
$2,814.72$2,814.72 -
Invertek
ODV-3-320300-3F1E-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V, 3 Phase Input/Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 3: 12.2 x 8.31 x 9.25", 310 x 2
$2,603.04$2,603.04 -
Invertek
ODP-2-44300-3HF4B-MN

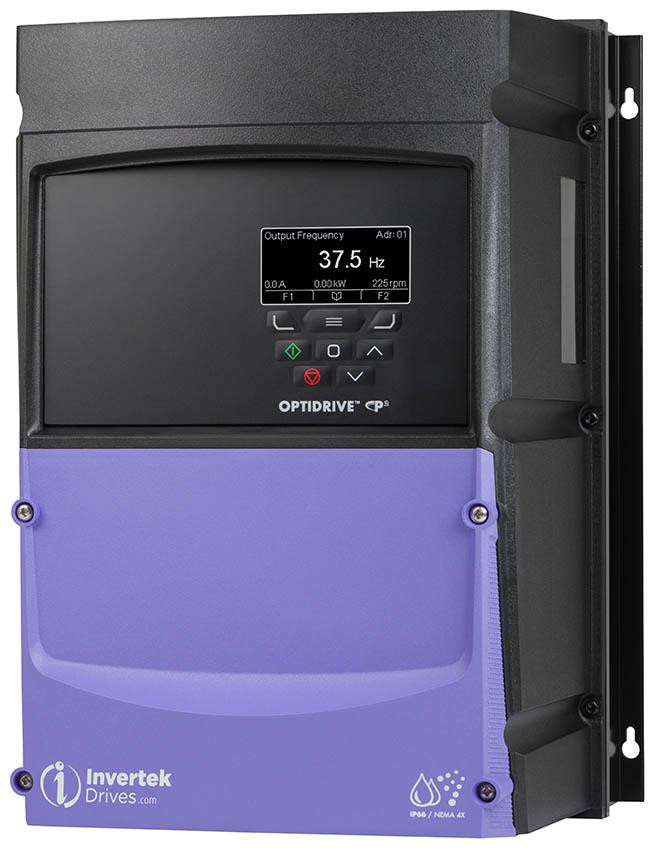

VFD, 30hp, 46 Amp, 22kW, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$3,185.28$3,185.28 -
Invertek
ODV-3-420300-101E-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 27
$2,599.20$2,599.20 -
Invertek
ODP-2-44200-3HF4B-MN
VFD, 20hp, 30 Amp, 15kW, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,662.08$2,662.08 -
Invertek
ODV-3-420240-101E-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 With Disconnect Outdoor, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 271m
$2,448.00$2,448.00
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
