$9,413.40$9,413.40 -
Invertek
BC22005-00ISFM-0HEX0-F01
HVAC VFD, 200-240V, 3 Phase, 5hp, 18 Amp (18A), NEMA 1, Vertical, Bypass, Frame 1, 46.35 x 13.15 x 10.00" (HWD)
$2,615.76$2,615.76 -
$3,827.14$3,827.14 -
$3,435.57$3,435.57 -
Invertek

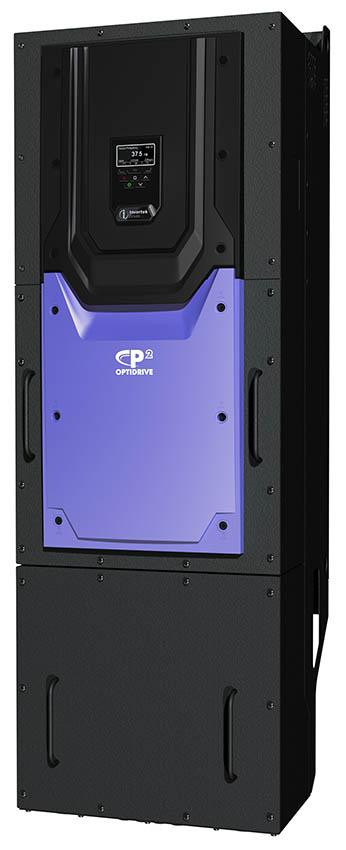

ODV-3-844800-3F1N-MN
VFD, 400hp, 480 Amp (480A), 380-480V, 3 Phase Input/Output, TFT Display, EMC Filter, No Brake Transistor, Frame Size 8, IP55/NEMA12 (Free Non-Expedited LTL Freight from IL)
$23,563.68$23,563.68 -
Invertek
ODV-3-843700-3F1N-MN
VFD, 300hp, 370 Amp (370A), 380-480V, 3 Phase Input/Output, TFT Display, EMC Filter, No Brake Transistor, Frame Size 8, IP55/NEMA12 (Free Non-Expedited LTL Freight from IL)
$21,163.68$21,163.68 -
Invertek

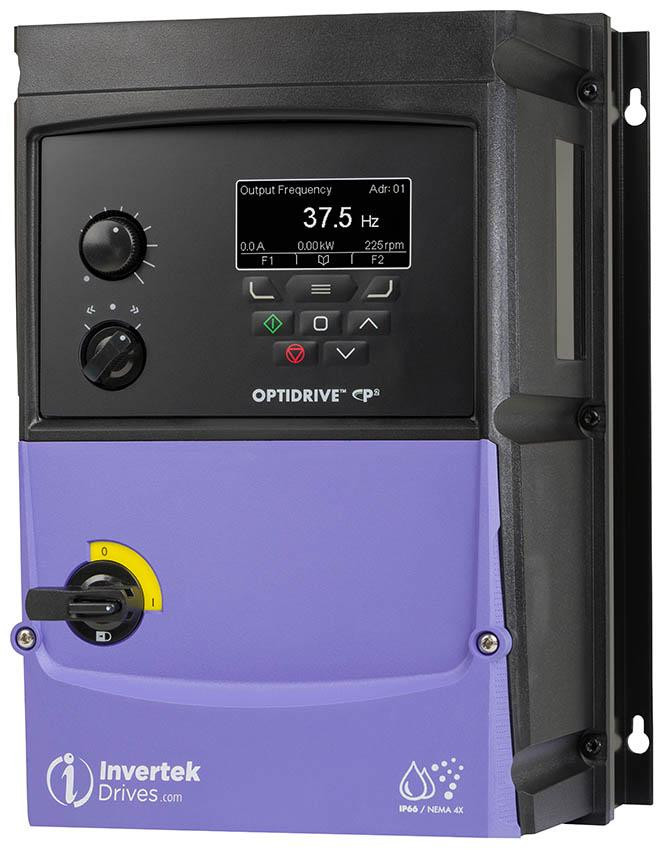

ODP-2-32050-1HF4B-MN
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, No EMC Filter, Internal Brake Transistor, Modbus RTU/CANopen, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 3: 12.2 x 8.3 x 9.3", 310 x 2
$1,572.00$1,572.00 -
Invertek
ODP-2-32050-1HF4A-MN
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, Internal Brake Transistor, Modbus RTU/CANopen, NEMA 4X, IP66 Outdoor Non-Switched, OptiDrive™ P2, Performance, Frame 3: 12.2 x 8.3 x 9.3", 310
$1,344.00$1,344.00 -
Invertek
ODV-3-320153-1F1A-MN
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/Three Phase Output, TFT Keypad, No EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, IP66 Non-Switched Outdoor, OptiDrive™ Eco , Frame Size 3
$1,296.00$1,296.00 -
Invertek
ODV-3-420240-101A-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, ModbusRTU/BACnetMS/TP, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240
$2,136.00$2,136.00 -
Invertek
ODP-2-42100-1H04B-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4:
$2,700.00$2,700.00 -
Invertek
ODP-2-42100-1H04A-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4: 14.2 x 9.5 x 10.7", 360 x
$2,376.00$2,376.00
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:

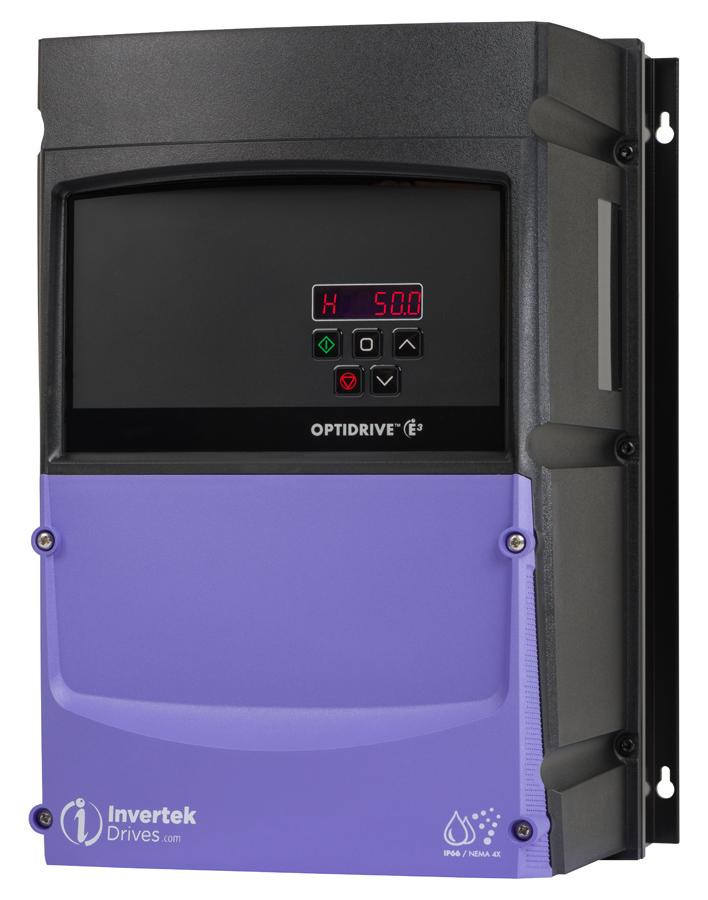

Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
