Invertek
ODV-3-260090-301E-MN
VFD, 7.5hp, 9A, 500-600V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Contro
$1,289.28$1,289.28 -
Available Now!
Available Now!Invertek
ODE-3-120023-3012
VFD, 0.5hp, 2.3A, 200-240V, 3 Phase Input/Output, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$259.20$259.20 -
Invertek
ODV-3-520900-3F1N-MN
VFD, 30hp, 90A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$3,670.08$3,670.08 -
Available Now!
Available Now!Invertek
ODP-2-22030-1HF42-MN
VFD, 3hp, 10.5A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$645.60$645.60 -
Available Now!
Available Now!Invertek
OPT-3-OPPAD-IN
Remote Keypad, Multilanguage OLED Screen w/3m Cable, TFT Display Keyboard
$158.40$158.40 -
Invertek
ODP-2-84300-3HF42-MN
VFD, 300hp, 370A, 380-480V, 3 Phase Input/Output, Frame 8, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control (Free Non-Expedited LTL Freight from IL)
$16,800.00$16,800.00 -
Available Now!
Available Now!Invertek
ODE-3-220105-3F4A
VFD, 3hp, 10.5A, 200-240V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$571.20$571.20 -
Invertek
ODP-2-36150-3H04A-MN
VFD, 15hp, 17A, 500-600V, 3 Phase Input/Output, TFT Keypad, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,804.32$1,804.32 -
Invertek
ODP-2-22020-3HF4B-MN
VFD, 2hp, 7 Amp (7A), 200-240V, 3 Phase Input/Output, TFT Keypad, Potentiometer, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 2, High Performance Optidrive P2 Series, Advanced Motor Control
$907.68$907.68 -
Invertek
ODV-3-520900-3F12-MN
VFD, 30hp, 90A, 200-240V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,993.28$2,993.28 -
Invertek
ODV-3-260090-3012-MN
VFD, 7.5hp, 9A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$914.40$914.40 -
Available Now!
$96.00$96.00
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

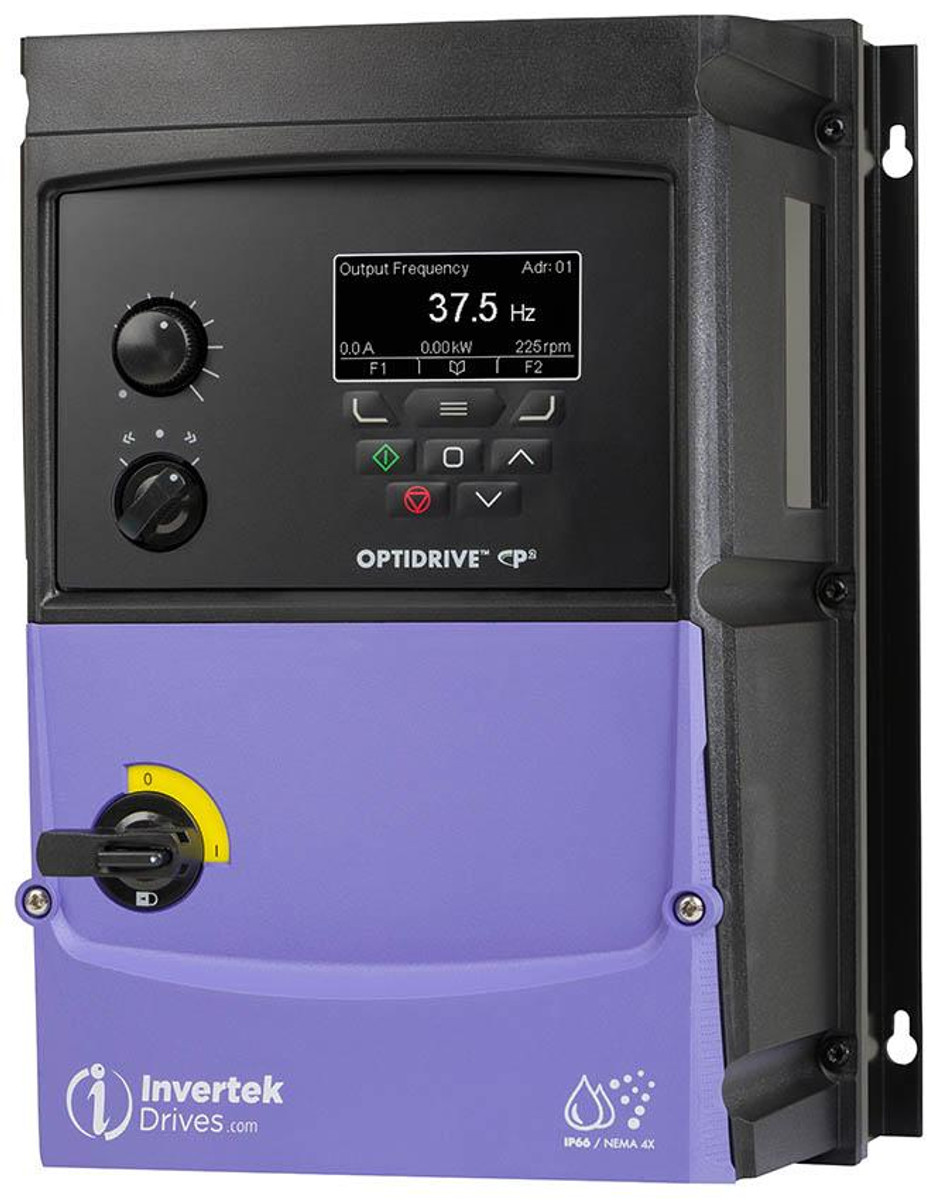

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

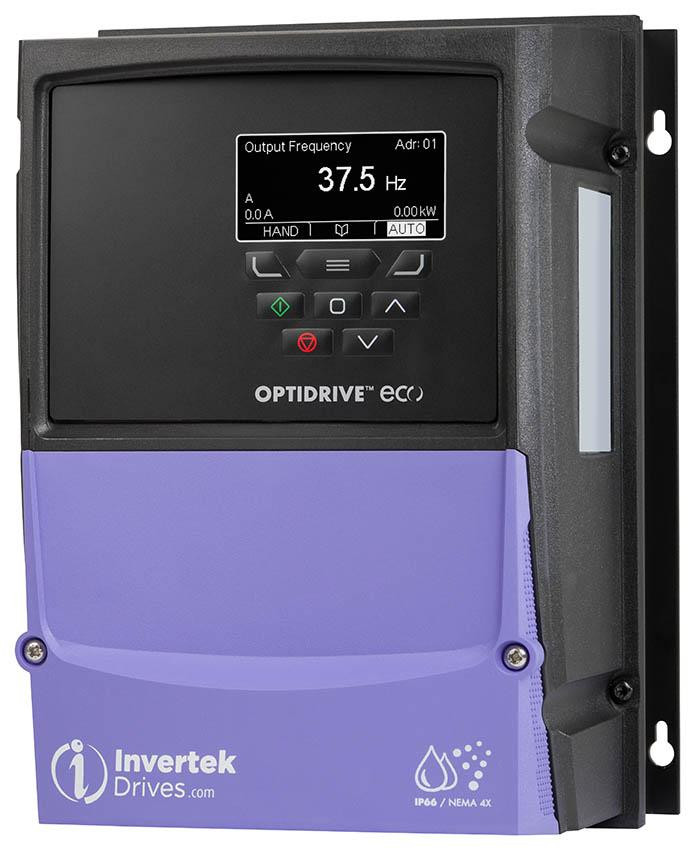

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
