Invertek
ODV-3-540720-3F1N-MN
VFD, 50hp, 72A, 380-480V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$3,156.96$3,156.96 -
Available Now!
Available Now!Invertek
ODE-3-440460-3F4B
VFD, 30hp, 46A, 380-480V, 3 Phase Input/Output, Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$3,024.00$3,024.00 -
Invertek
ODV-3-240095-3F12-MN
VFD, 5hp, 9.5A, 380-480V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$707.04$707.04 -
Available Now!
$259.20$259.20 -
Invertek
ODP-2-64150-3HF42-MN
VFD, 150hp, 180A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control (Free Non-Expedited LTL Freight from IL)
$6,715.68$6,715.68 -
Available Now!
Available Now!Invertek
ODE-3-110043-1012
VFD, 1hp, 4.3A, 110-115V, Single Phase Input/3 Phase Output, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$271.20$271.20 -
Invertek
ODE-3-240041-3F4B
VFD, 2hp, 4.1A, 380-480V, 3 Phase Input/Output, Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$705.60$705.60 -
Available Now!
Available Now!Invertek
OPT-2-ETHEG-IN
EtherNet Module, ODVA Compliant Ethernet/IP Modbus Translator Device, Use w/P2, E3 & Eco Drive
$180.00$180.00 -
Invertek
ODE-3-440460-3F4A
VFD, 30hp, 46A, 380-480V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$2,788.80$2,788.80 -
Invertek
ODV-3-540720-3F12-MN
VFD, 50hp, 72A, 380-480V, 3 Phase Input/Output, EMC Filter, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$2,892.00$2,892.00 -
Invertek
ODP-2-64120-3HF4N-MN
VFD, 120hp, 150A, 380-480V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$6,617.76$6,617.76 -
Available Now!
Available Now!Invertek
ODE-3-120043-1F12
VFD, 1hp, 4.3A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$252.00$252.00
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

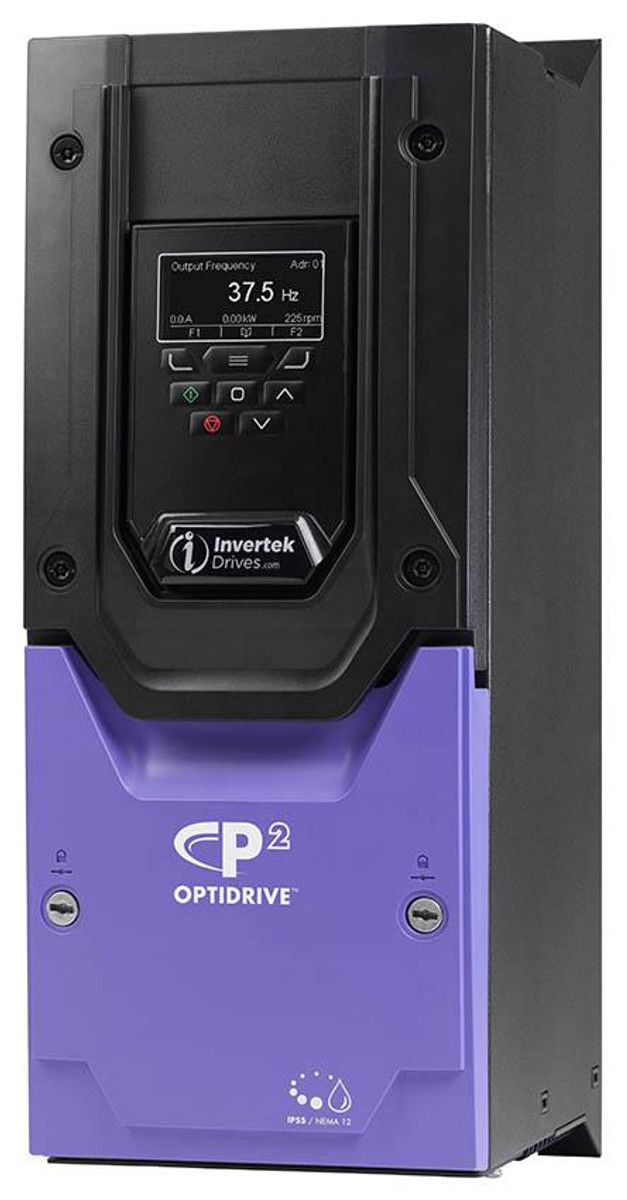

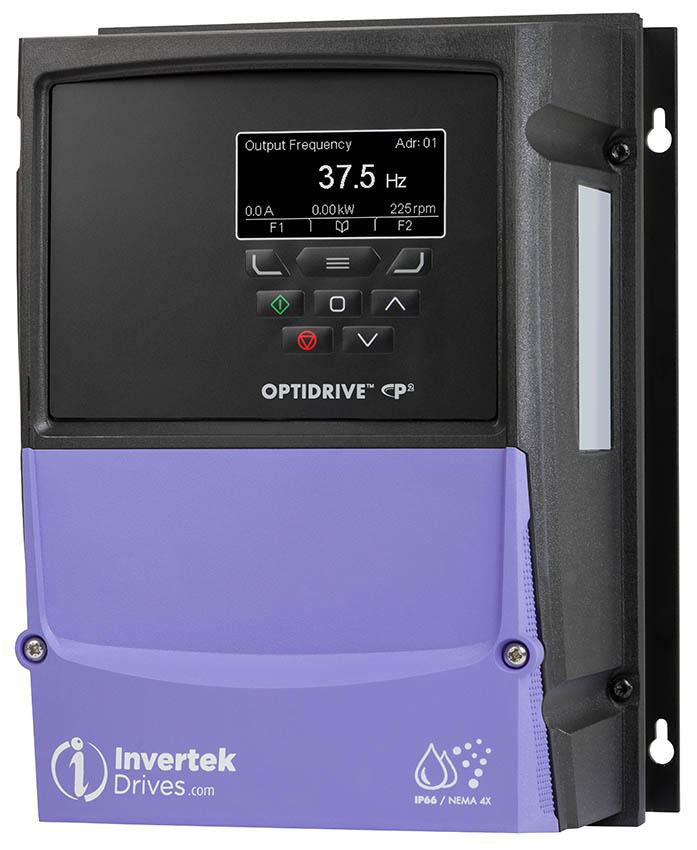

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

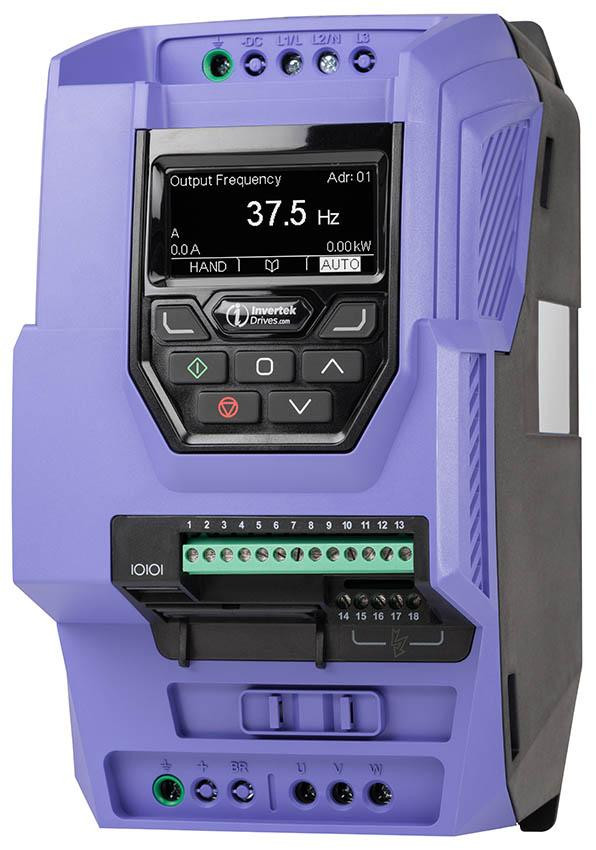

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
