Invertek
ODV-3-260021-3012-MN
VFD, 1hp, 2.1A, 500-600V, 3 Phase Input/Output, IP20, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes Latest TFT Display (-MN)
$650.40$650.40 -
Invertek
ODP-2-66075-3H04N-MN
VFD, 75hp, 78A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$6,659.04$6,659.04 -
Invertek
ODP-2-32075-3HF42-MN
VFD, 7.5hp, 24A, 200-240V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,383.36$1,383.36 -
Available Now!
Available Now!Invertek
ODE-3-220105-1F42-01
VFD, 1.5hp, 10.5A, 200-240V, Single Phase Input/Output, EMC Filter, Internal Brake, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions, Use with PSC or Shaded Pole Single Phase Motors
$489.60$489.60 -
Invertek
ODV-3-540900-3F12-MN
VFD, 60hp, 90A, 380-480V, 3 Phase Input/Output, EMC Filter, IP20, TFT Display, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units
$2,993.28$2,993.28 -
Invertek
ODP-2-22010-1HF42-MN
VFD, 1hp, 4.3A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$571.20$571.20 -
Invertek
ODV-3-240095-3F1E-MN
VFD, 5hp, 9.5A, 380-480V, 3 Phase Input/Output, TFT Keypad, Disconnect Switch, EMC Filter, NEMA 4X, IP66 Outdoor with Disconnect Switch, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or
$1,082.40$1,082.40 -
Invertek
ODP-2-64150-3HF4N-MN
VFD, 150hp, 180A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$7,518.72$7,518.72 -
Available Now!
Available Now!Invertek
ODE-3-110043-101A
VFD, 1hp, 4.3A, 110-115V, Single Phase Input/3 Phase Output, Keypad, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$439.20$439.20 -
Invertek
OPT-2-EXTIO-IN
Extended I/O Plug-in Module, Digital Input x 3: 8-30VDC Input, Maximum Relay Switching Current: 6A (250VAC) / 5A (30VDC), Optidrive P2 Option, Compatibility: HVAC (ODP-2 / ODV-2)
$79.20$79.20 -
Invertek
ODP-2-42100-3HF4N-MN
VFD, 10hp, 30A, 200-240V, 3 Phase Input/Output, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,928.64$1,928.64 -
Available Now!
Available Now!Invertek
ODE-3-220105-1F42
VFD, 3hp, 10.5A, 200-240V, Single Phase Input/3 Phase Output, EMC Filter, Internal Brake Transistor, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$422.40$422.40
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:

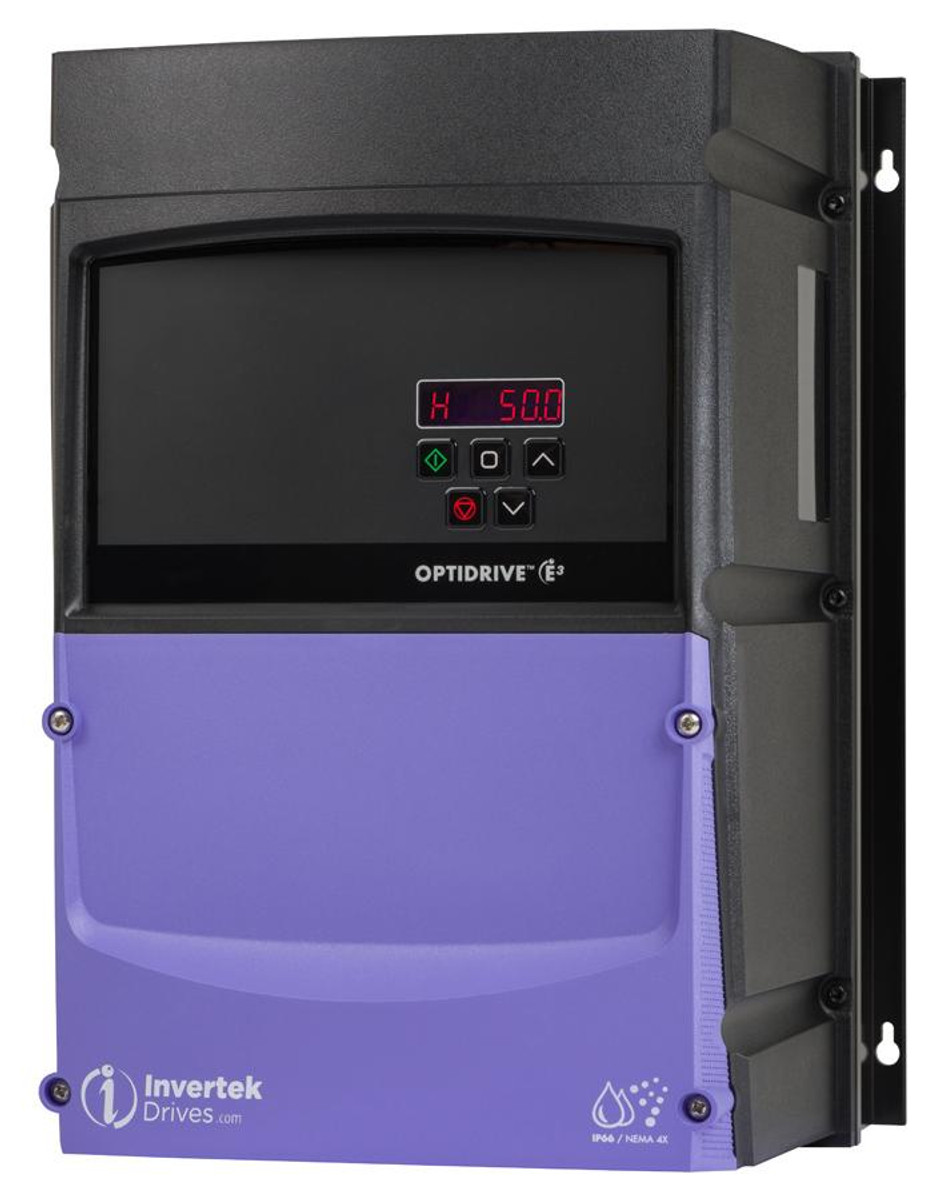

Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

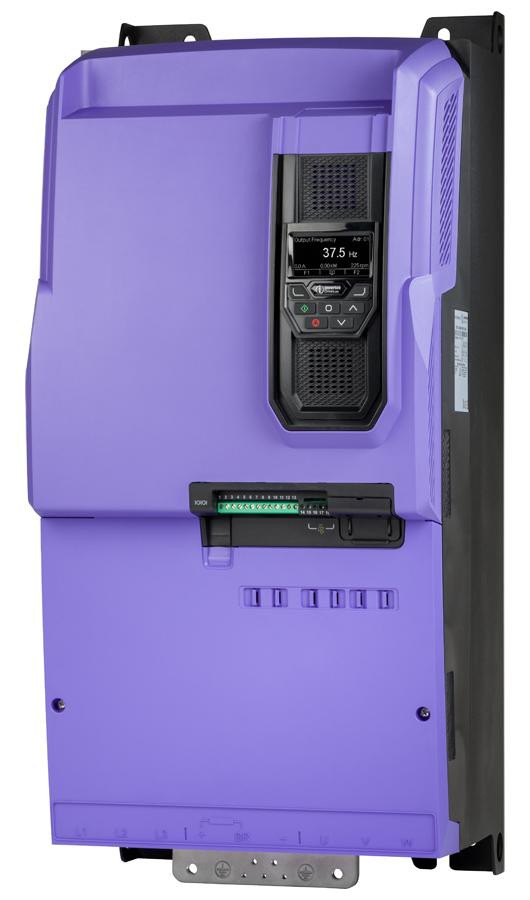

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
