Invertek
ODV-3-420240-101A-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, ModbusRTU/BACnetMS/TP, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240
$2,136.00$2,136.00 -
Invertek
ODP-2-42100-1H04B-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4:
$2,700.00$2,700.00 -
Invertek
ODP-2-42100-1H04A-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4: 14.2 x 9.5 x 10.7", 360 x
$2,376.00$2,376.00 -
Invertek
ODP-2-42075-1H04B-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, Potentiometer, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4:
$2,544.00$2,544.00 -
Invertek
ODP-2-42075-1H04A-MN
VFD, 7.5hp, 5.5kW, 24A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, Modbus RTU/CANopen, OptiDrive™ P2, Performance, Frame 4: 14.2 x 9.5 x 10.7", 360
$2,220.00$2,220.00 -
Invertek
ODE-3-420300-104B
VFD, 10hp, 30 Amp (30A), 200-240V, Single Phase Input/3 Phase Output, LED Keypad, Potentiometer, Modbus RTU/CANopen, Internal Brake Transistor, No EMC Filter, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 4: 14.2 x 9.5 x 10.7" (HWD)
$2,088.00$2,088.00 -
Available Now!
Available Now!Invertek
ODE-3-420300-104A
VFD, 10hp, 30 Amp (30A), 200-240V, Single Phase Input/3Phase Output, LED Display, No EMC, Includes Internal Brake Transistor, Frame 4, NEMA 4X/IP66 Outdoor Non-Switched, Optidrive E3 Series, Simple Setup:14 Basic Parameters & Functions
$1,848.00$1,848.00 -
Available Now!
Available Now!Invertek
ODE-3-420240-104B
VFD, 7.5hp, 24 Amp (24A), 200-240V, Single Phase Input/3 Phase Output, LED Display, Potentiometer, Internal Brake Transistor, Frame 4, NEMA 4X, IP66 Outdoor Switched, Optidrive E3 Series, Simple Setup: 14 Basic Parameters and Functions
$1,824.00$1,824.00 -
Invertek
ODV-3-420300-101A-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, No Internal Brake Transistor, NEMA 4X, IP66 Outdoor Non-Switched, ModbusRTU/BACnetMS/TP, OptiDrive™ Eco, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x
$2,292.00$2,292.00 -
Available Now!
Available Now!Invertek
ODE-3-420240-104A
VFD, 7.5p, 5.5kW, 24A, 200-240V SIngle Phase Input/3 Phase Output, LED Keypad, No EMC Filter, Internal Brake Transistor, Modbus RTU/CANopen, NEMA 4X, IP66 Outdoor Non-Switched, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 2271mm (HWD)
$1,536.00$1,536.00 -
Invertek
ODP-2-42150-3HF4B-MN
VFD, 15hp, 11kW, 46A, 200-240V, 3 Phase Input/Output, TFT Display, Keypad, EMC Filter, NEMA 4X, IP66 Indoor/Outdoor Enclosure, OptiDrive™ P2 Series, 14.2 x 9.5 x 10.7" (HWD)
$3,185.28$3,185.28 -
Invertek
ODP-2-84400-3HF4N-MN
VFD, 400hp, 250kW, 480 Amp, 380-480V 3 Phase Input/Output, TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP55 Non-Switched, Frame Size 8, OptiDrive P2, Performance (Free Non-Expedited LTL Freight from IL)
$24,218.40$24,218.40
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now

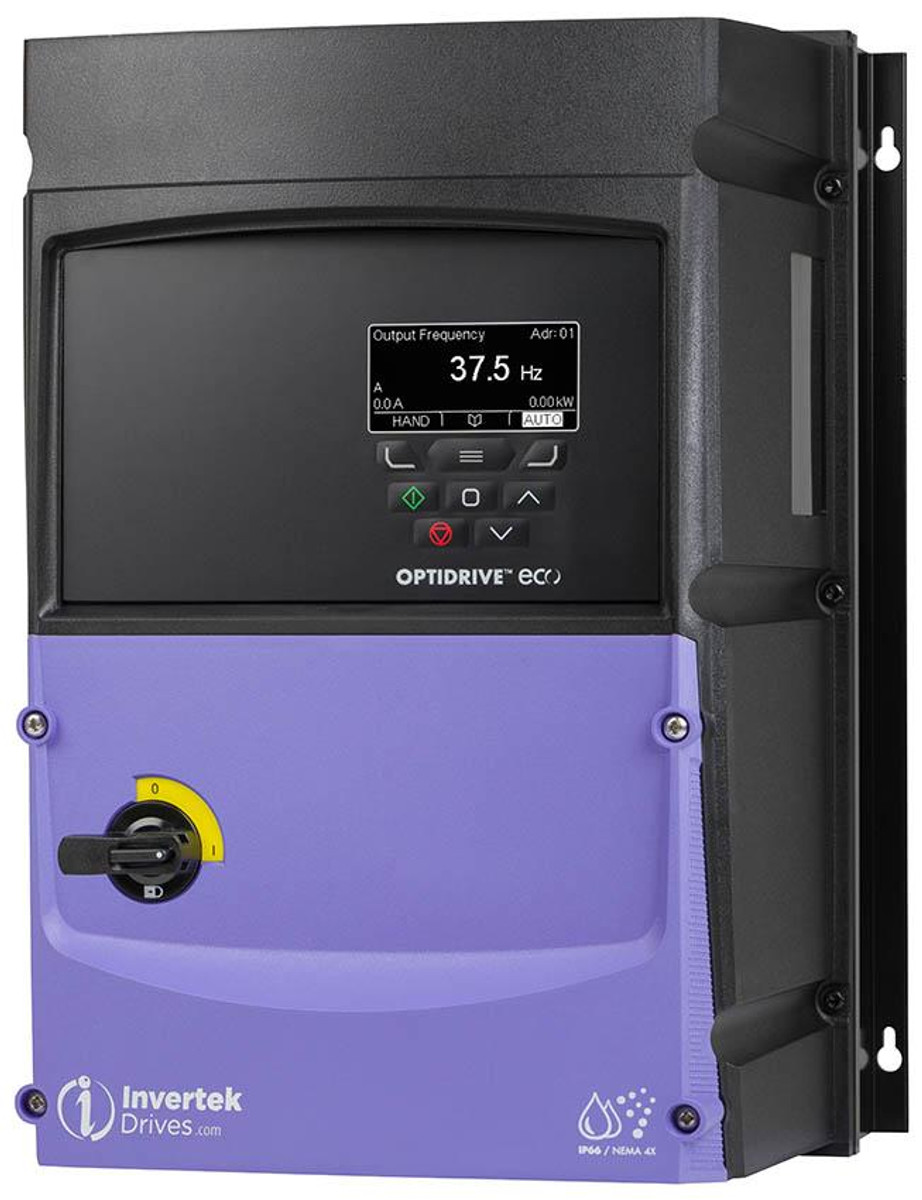

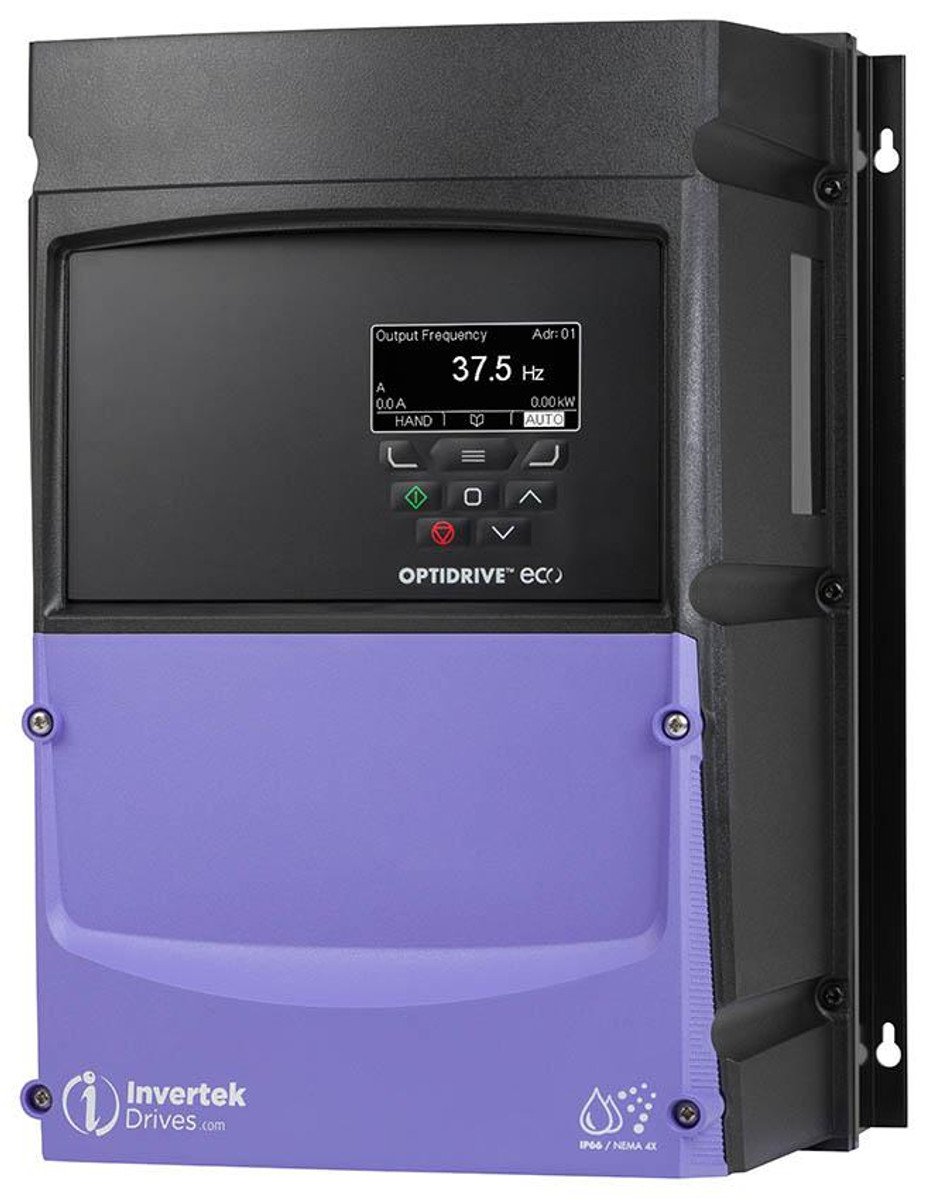

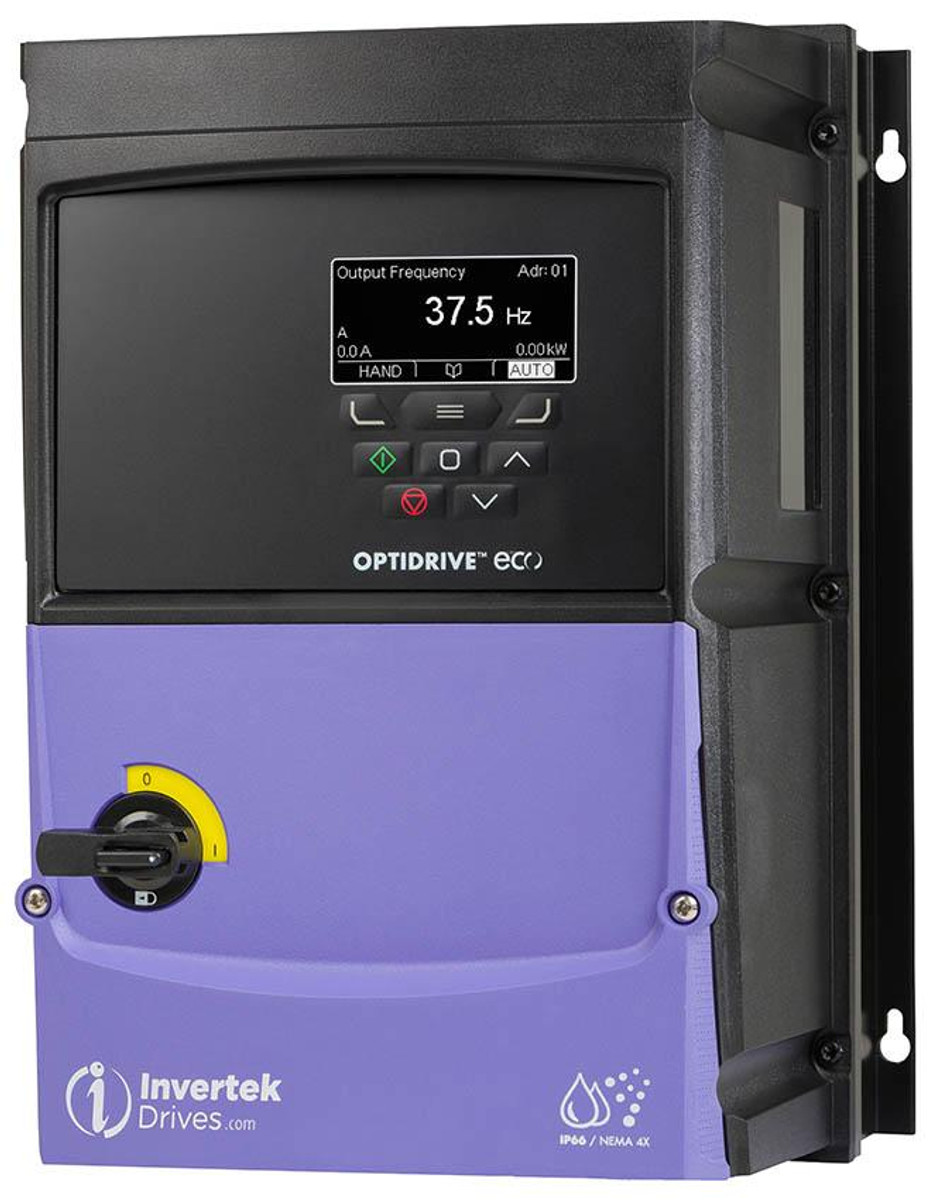

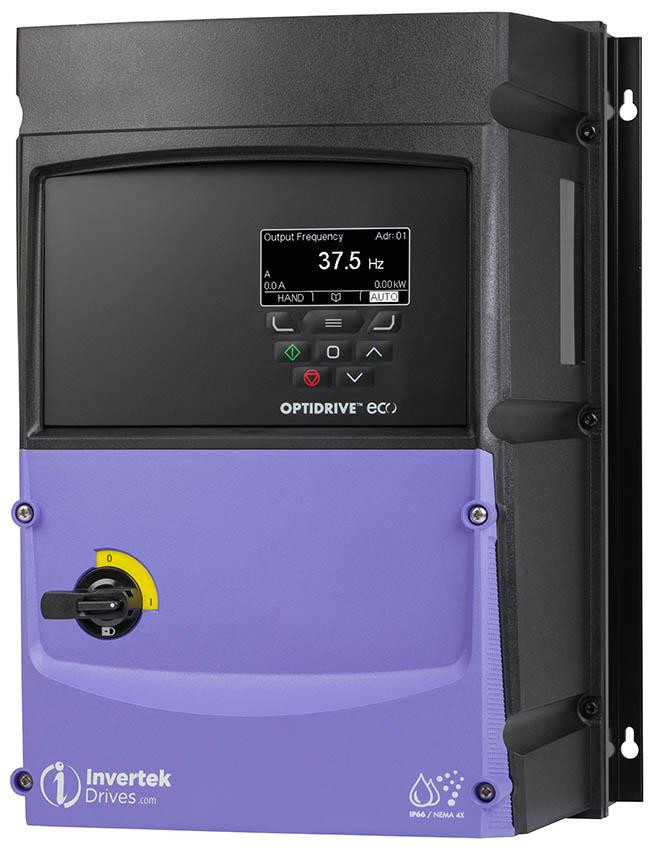

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
