Available Now!
Available Now!Invertek
ODE-3-120043-1F1B-01
VFD, 0.5hp, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, LED Keypad, Potentiometer, EMC Filter, No Brake, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 1: 9.13 x 6.34 x 6.38", 232 x 161 x 162mm (HWD
$552.00$552.00 -
Invertek
ODP-2-44250-3HF4N-MN
VFD, 25hp, 39A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,090.40$2,090.40 -
Available Now!
Available Now!Invertek
ODE-3-240058-3F4B
VFD, 3hp, 5.8A, 380-480V, 3 Phase Input/Output, Keypad, Potentiometer, Disconnect Switch, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$744.00$744.00 -
Invertek
ODP-2-66150-3H04N-MN
VFD, 150hp, 150A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$9,403.68$9,403.68 -
Invertek
ODP-2-24030-3HF4B-MN
VFD, 3hp, 5.8 Amp (5.8A), 380-480V, 3 Phase Input/Output, TFT Keypad, Potentiometer, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 2, High Performance Optidrive P2 Series, Advanced Motor Control
$907.68$907.68 -
Available Now!
Available Now!Invertek
ODE-3-120043-1F1B
VFD, 1hp, 0.37kW, 4.3 Amp (4.3A), 200-240V, Single Phase Input/3 Phase Output, LED Keypad, Potentiometer, C1/2/3 EMC Filter, No Brake, NEMA 4X, IP66 Outdoor with Disconnect Switch, Frame 1: 9.13 x 6.34 x 6.38", 232 x 161 x 162mm (HWD)
$508.80$508.80 -
Invertek
ODV-3-340180-3F1A-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, ECO OPTIDRIVE Series, Flexible Pump Station Control with No PLC or Pump Control Units, Includes
$1,540.32$1,540.32 -
Invertek
ODP-2-44250-3HF42-MN
VFD, 25hp, 39A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,900.32$1,900.32 -
Available Now!
Available Now!Invertek
ODE-3-240058-3F4A
VFD, 3hp, 5.8A, 380-480V, 3 Phase Input/Output, Keypad, EMC Filter, NEMA 4X, Outdoor IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$600.00$600.00 -
Invertek
ODP-2-24030-3HF4A-MN
VFD, 3hp, 5.8A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, Internal Brake Transistor, NEMA 4X, IP66 Non Switched Outdoor, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$787.68$787.68 -
Available Now!
Available Now!Invertek
ODE-3-120043-1F1A-01
VFD, 0.5hp, 4.3 Amp (4.3A), 200-240V, Single Phase Input/Output, LED Keypad, EMC Filter, (No Internal Brake Transistor), NEMA 4X, IP66 Outdoor Non-Switched, Frame 1, Optidrive E3 Series, Use with PSC or Shaded Pole Single Phase Motors
$494.40$494.40 -
Invertek
ODP-2-66125-3H04N-MN
VFD, 125hp, 130A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$8,624.64$8,624.64
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 2 year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now

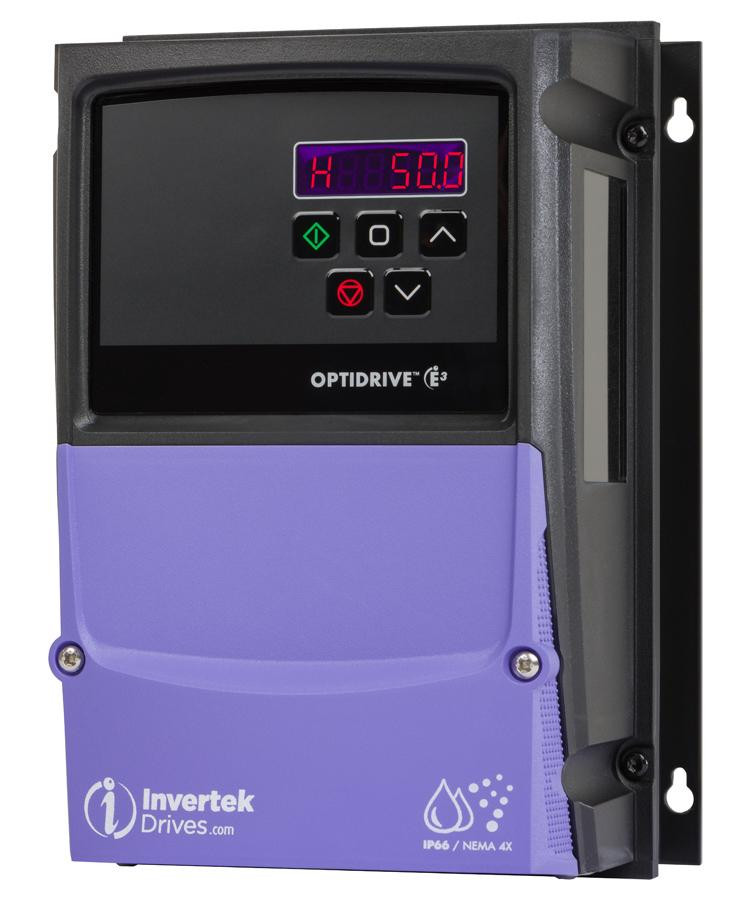

Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now

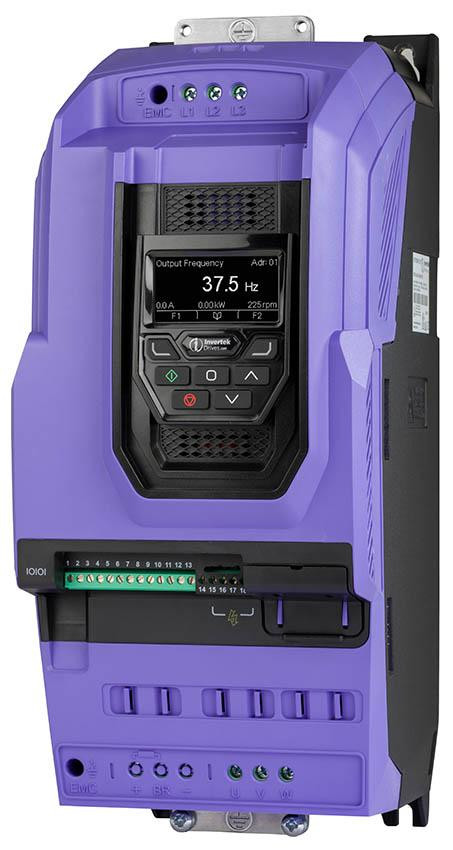

Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
