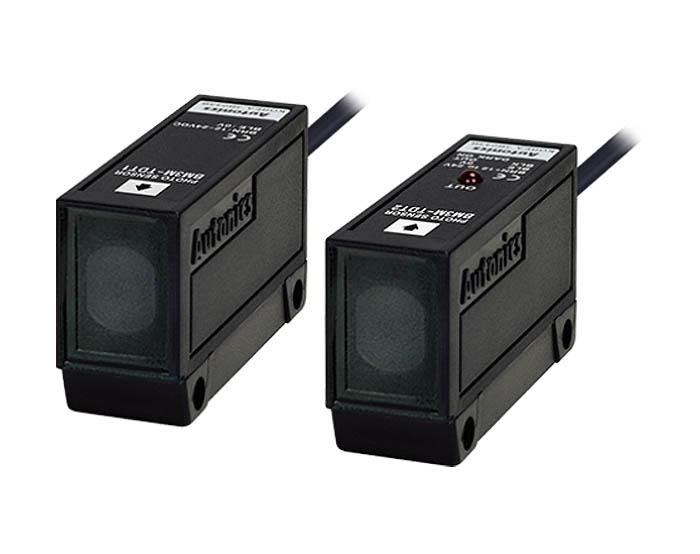

BM3M-TDT1,2

Features Include:

• Easy to mount at a narrow space with small size and light weight.
• Convenient to adjust the sensitivity by external sensitivity adjustment control. (Applied to diffuse reflective type only)
• Easy to mount by screw type in mounting hole.
• Reverse power polarity protection circuit.
• Sensing Type: Transmitted beam
• Sensing Distance: 3m
• Sensing Target: Opaque materials of min. ⌀8mm
• Power Supply: 12-24VDC ±10% (Ripple P-P: Max. 10%)
• Current Consumption: Max. 45mA
• Sensitivity Adjustment: Fixed
• Protection Circuit: Reverse polarity protection
• Indication: Operation indicator: Red LED
• Cable: 2P, ⌀4mm, Length: 2m

Technical Information:

• Autonics BM Series Catalog
• Autonics BM Series Manual
