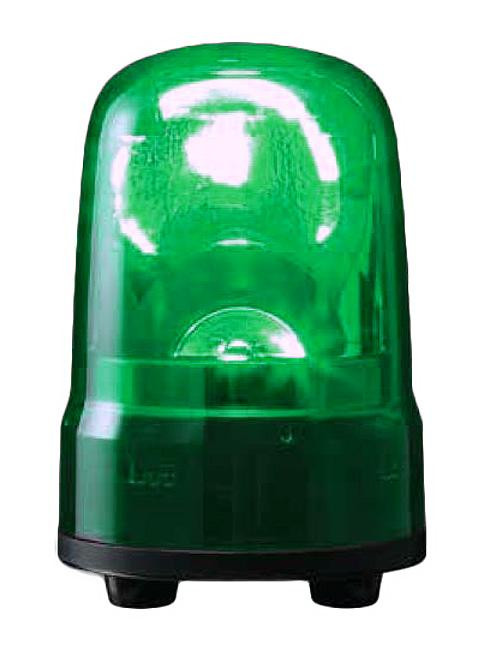

SKS-M1J-G

Patlite has released their latest evolution of beacons that includes the SL, SK and SF series:

• SL flashing beacons - standard light functions with flash settings, available in 80, 100, 150mm
• SK rotating beacons - motorized rotation with efficient light output, available in 80, 100, 150mm
• SF multi-function beacons - LED animation including simulated rotation, available in 80, 100mm

These will replace: RS, RU, RH, SKE-A, WH, SKF-A, KP-A, SKL-A, SKLB, SKLS, RLE, RHE, PEW, PES, PSE, KHE, KPE, KLE, XPE, XME

Ones that will continue as they are: SKH-H, RLR, NE-A, LFH/LFK, REL

To achieve IP65 Rating:

• SKS series use SZW-102, SKH use SZW-103
• Cable type SF08 series use SZW-102, SF10 use SZW-103
• Cable type SL08 series use SZW-102, SL10 use SZW-103

Series Features Include:

• Clearer, brighter signaling with improved reflector design
• Protection Rating: IP23, IP65 when used with separately sold rubber gasket
• This newly developed dual-reflector efficiently distributes LED light, creating bright, even light output.
• The light-emitting surface is designed to provide maximum visibility and effective visual signals.
• Easy mounting and installation
• Maintenance-free
• Selectable wiring options

Need More Information?

• Patlite SL/SK/SF Series Beacons Flyer
• Patlite SKS Series Beacon Technical Specifications
• Patlite SKS/SKH/SKP Series Rotating Beacon Instruction Manual
• Patlite SL/SK/SF Series Beacons Installation Manual
