$14.82
MS70LT-GF00-R
Alt: MS70LT Series
$66.88

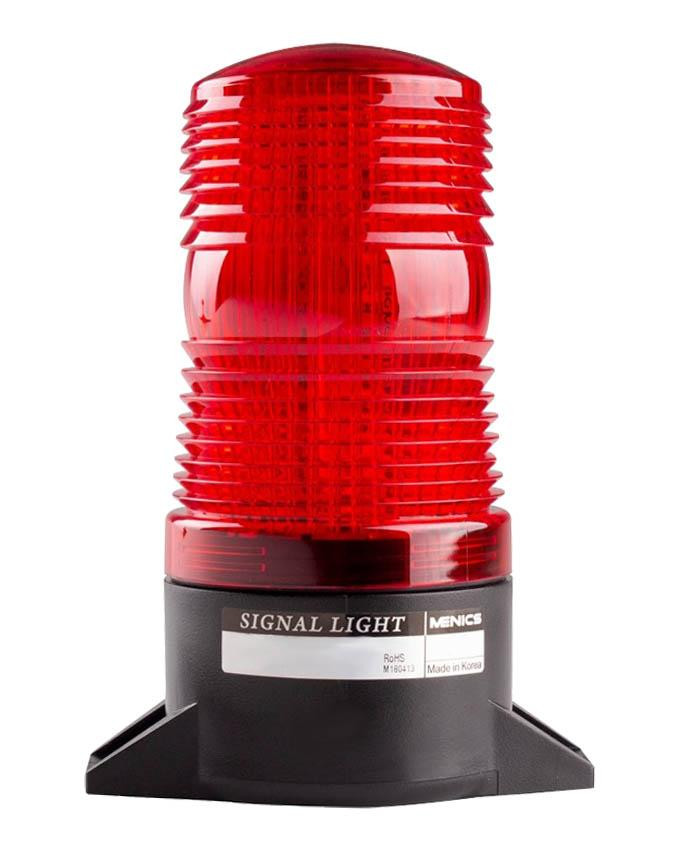

Beacon, Ø70mm, LED, 12-24VDC, Red, Surface Mount, Flashing, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Function: Steady, Flashing, Buzzer
- Power Supply: 12 ~ 24VDC, 110 ~ 220VAC(AC 50/60Hz)
- Alarm Sound: min 50 ~ max 80±5dB
- Dimension: 68mm
- Flashing rate (2 patterns): Normal flashing : 75±5 time/minute, 3 pattern flashing (Emergency signal), 130±5 time/minute
- Connection: UL2464 / 18AWG, AWM, 2C, 300V
- Material Body: Body - ABS resin Lens - PC resin
- Ambient temperature: -20 to 50°C
- Storage ambient: temperature -20 to 70°C
- Ambient Humidity: 45~85% RH
- Insulation resistance: 500VAC 50 / 60Hz for 1 minute
- Vibration: 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- Approval: CE(DC products only), RoHS
- Protection structure: IP65 (IP50-Buzzer type)
- Weight (DC type): G type: app.196g M type: app.195g P type: app.198g
Current consumption:
- Flashing type: 12~24VDC: 0.12~0.16A, 110~220VAC:0.04~0.05A
- Flashing + Buzzer type: 12~24VDC:0.16~0.21A, 110~220VAC: 0.05~0.06A
