$14.82

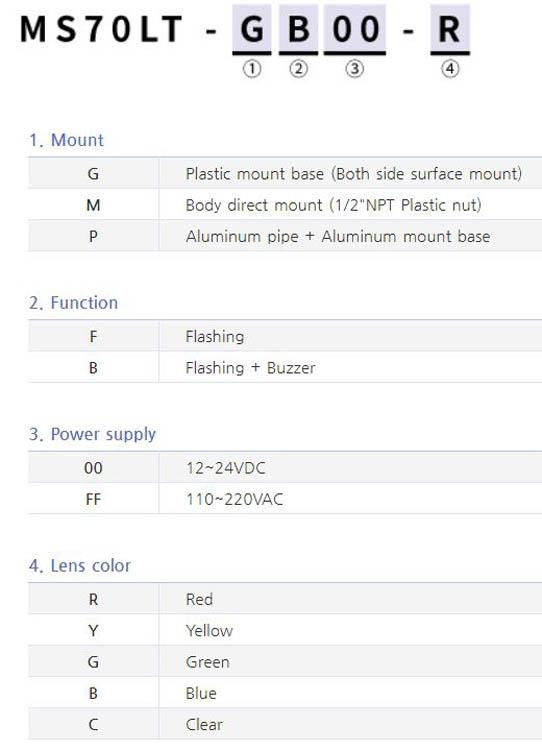

MS70LT-GB00-R
Alt: MS70LT Series
$87.65
Beacon, Ø70mm, LED, 12-24VDC, Red Lens, Surface Mount, Flashing & Buzzer, IP50
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Amerimation represents a number of top Korean brands that includes Menics light towers, Kacon and Boxco. They are the sole representative for North and South America.
Known for their competitive prices, Amerimation sells through distribution and is located right here in Illinois. Most products can ship from our stock, or theirs, within 1 to 2 days.
Series Features Include:
- Function: Steady, Flashing, Buzzer
- Power Supply: 12 ~ 24VDC, 110 ~ 220VAC(AC 50/60Hz)
- Alarm Sound: min 50 ~ max 80±5dB
- Dimension: 68mm
- Flashing rate (2 patterns): Normal flashing : 75±5 time/minute, 3 pattern flashing (Emergency signal), 130±5 time/minute
- Connection: UL2464 / 18AWG, AWM, 2C, 300V
- Material Body: Body - ABS resin Lens - PC resin
- Ambient temperature: -20 to 50°C
- Storage ambient: temperature -20 to 70°C
- Ambient Humidity: 45~85% RH
- Insulation resistance: 500VAC 50 / 60Hz for 1 minute
- Vibration: 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- Approval: CE(DC products only), RoHS
- Protection structure: IP65 (IP50-Buzzer type)
- Weight (DC type): G type: app.196g M type: app.195g P type: app.198g
Current consumption:
- Flashing type: 12~24VDC: 0.12~0.16A, 110~220VAC:0.04~0.05A
- Flashing + Buzzer type: 12~24VDC:0.16~0.21A, 110~220VAC: 0.05~0.06A
