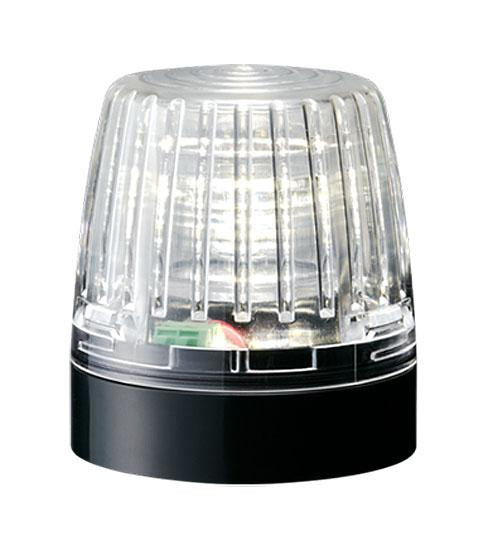

NE-24A-C

The Patlite NE-A series is a 56mm signal beacon that offers evenly distributed light and a high protection rating. This series also has multi-colored LED options as well as a touch sensor model!

• NE-24-* - Available in red, amber, green, blue or white, this is a continuous light, IP65 model.
• NE-M1ANN-M is a multi-colored (7-in-1) LED that offers continous/flashing and a IP67 protection rating.
• NE-M1ANB-M is the same as the above, however, it has an IP65 rating and a buzzer.
• NE-M1ATB-M is a multi-colored LED, IP65, with buzzer that is continuous only with a touch sensor.

All of the above models can be mounted in all directions and are for indoor use.

NE-M1ATB-M, the touch sensor model, is ideal when you are looking for a light with a built-in capacitive touch sensor:

• Choose between 4 patterns when engaging touch sensor
• Touch sensor can detect bare or gloved hands - even when wet!
• 2 touch settings: light on only when sensor is touched or touch to activate/deactivate continuous light

Models with a buzzer (NE-M1ANB-M and NE-M1ATB-M) can be sounded in combination with the continuous/flashing light and the touch sensor.

Marshall Wolf Automation is your authorized stocking Patlite distributor.

Features Include:

• Rated Voltage: 24V DC (Non-polar)
• Current Consumption (Max.): 26mA
• Mounting Direction: All Directions
• Operating Temperature Range: -30°C ~ +50°C (Less than 90%RH, Non-condensation)
• Protection Rating: IP65 NEMA TYPE 4X, 13

Need More Information?

• Patlite NE-24 Signal Beacon Instruction Manual
• Patlite NE-24 Specifications
• Patlite 2016 Universal Guide
