NE-M1ANN-M

The Patlite NE-A series is a 56mm signal beacon that offers evenly distributed light and a high protection rating. This series also has multi-colored LED options as well as a touch sensor model!

• NE-24-* - Available in red, amber, green, blue or white, this is a continuous light, IP65 model.

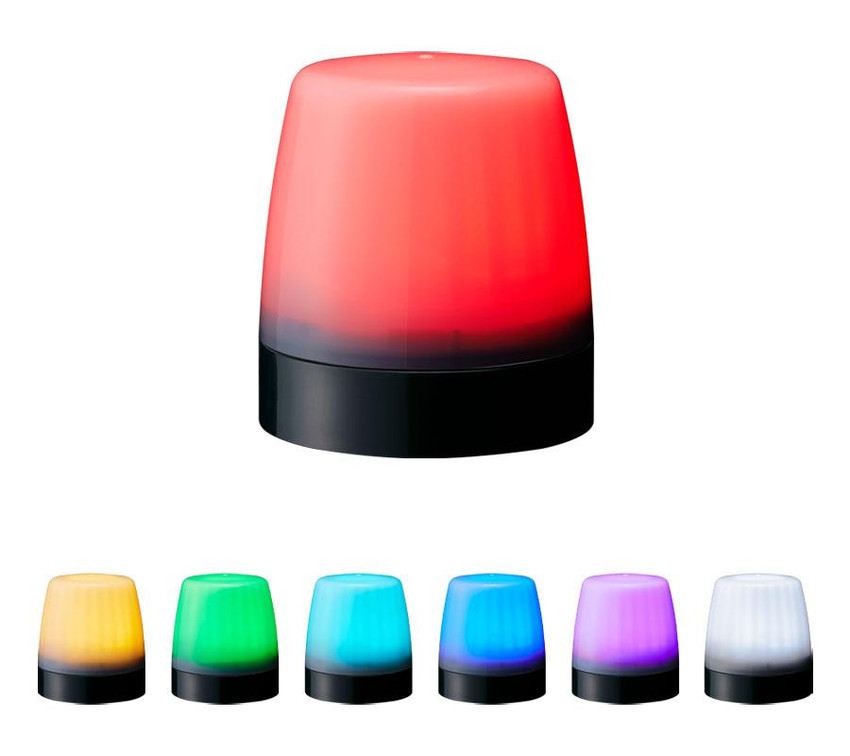

• NE-M1ANN-M is a multi-colored (7-in-1) LED that offers continous/flashing and a IP67 protection rating.
• NE-M1ANB-M is the same as the above, however, it has an IP65 rating and a buzzer.
• NE-M1ATB-M is a multi-colored LED, IP65, with buzzer that is continuous only with a touch sensor.

All of the above models can be mounted in all directions and are for indoor use.

NE-M1ATB-M, the touch sensor model, is ideal when you are looking for a light with a built-in capacitive touch sensor:

• Choose between 4 patterns when engaging touch sensor
• Touch sensor can detect bare or gloved hands - even when wet!
• 2 touch settings: light on only when sensor is touched or touch to activate/deactivate continuous light

Models with a buzzer (NE-M1ANB-M and NE-M1ATB-M) can be sounded in combination with the continuous/flashing light and the touch sensor.

Marshall Wolf Automation is your authorized stocking Patlite distributor.

Features Include:

• LED Color: Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan)
• LED Unit Modes: Continuous/Flashing
• Sound Pressure: 88dB, Intermittent or Continuous
• Connection: Cabtire cable (2m)
• Features simultaneous use of continuous or flashing conditions
• Up to 7 selectable LED colors
• High protection rating for operation in harsh environments
