Werma
262-700-02
Base Mount with Cable Exit at Side for EvoSIGNAL Maxi, Grey, EvoSIGNAL MAXI Accessory, IP66
$20.35
262-510-60
Alt: 262.510.60, 26251060
$311.44
Beacon, Maxi Ø120mm, Steady/Flashing, Blue, 115-230VAC, Requires Mounting Adapter, IP66
- Weight:
- 1.11 LBS
- Minimum Purchase:
- 1 unit
Description
The EvoSIGNAL MAXI is a 120mm beacon that is 170mm tall and ideal for distances over 20 meters.
All EvoSIGNAL products are IP66/NEMA 4X and suitable for indoor/outdoor applications. Please note that a mounting adpater is required, please see the accessories tab.
The EvoSIGNAL MAXI:
- Available in optical (262) only
- 12/24V or 115/230V versions
- Choose from steady/flashing (TwinLIGHT), flashing/strobe model (TwinFLASH) or rotating
- Required mounting adapters include base mount, pole mount or bracket mount
- Ideal for indoor or outdoor applications that need a flexible, long-range solution!
- This series will replace all 50 part numbers from the 280 series
Werma's EvoSIGNAL streamlines their beacon offering with 62mm (MINI), 85mm (MIDI) and 120mm (MAXI) diamters available in a range of optical, audible and optical audible options.
- TwinLIGHT gives you the option of a continuous/steady light or flashing light
- TwinFLASH gives you the option of a flashing light or strobe light
- TriCOLOUR is green/red/yellow – you can trigger 3 color via only two outputs from the machine control output
Specifications
Alternate Part Number
262.510.60, 26251060
Beacon Type
Continuous or Flashing
Color
Blue
Diameter
120mm
Light Tower Mounting
Terminal Block
All - Specific Ratings
IP66
Series
EvoSIGNAL Maxi Series
All - Voltage
115/230 VAC
Warranty
3 Years
Weight
1.1133
Features Include:
- Operating Voltage: 115-230V AC
- Operating Voltage Type: 50Hz at 230V, 60Hz at 115V +/- 10%
- Rated Operational Voltage: 230 V AC
- Rated Operational Current: 165 mA
- Rated Inrush Current: <6000 mA
- Materials: PC, PC/ABS
- Connection: Push-In Terminal
- Diameter: 120 mm
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Werma
262-700-06

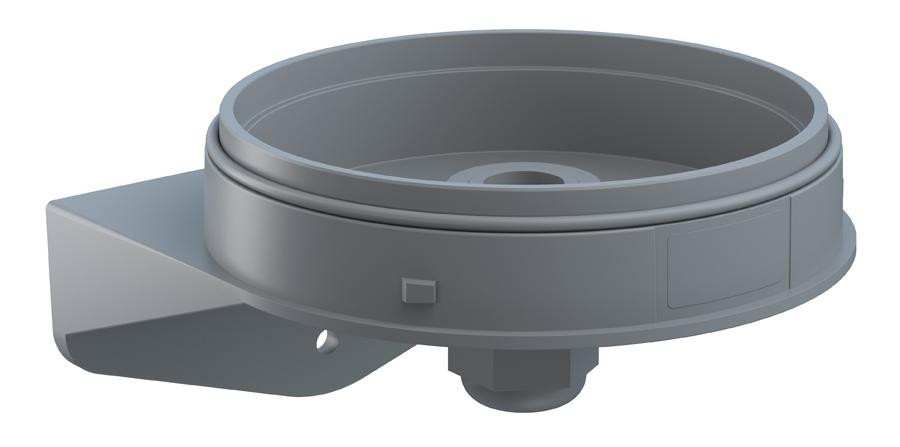

Bracket/Wall Mount with Cable Gland EvoSIGNAL Maxi, Grey, EvoSIGNAL MAXI Accessory, IP66
