S662-1-1-1-0-0
Alt: S66211100
$396.06
Batch/Dual Counter, 120VAC, Standard Input, One Relay Output
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Simpson offers a complete line of counters!

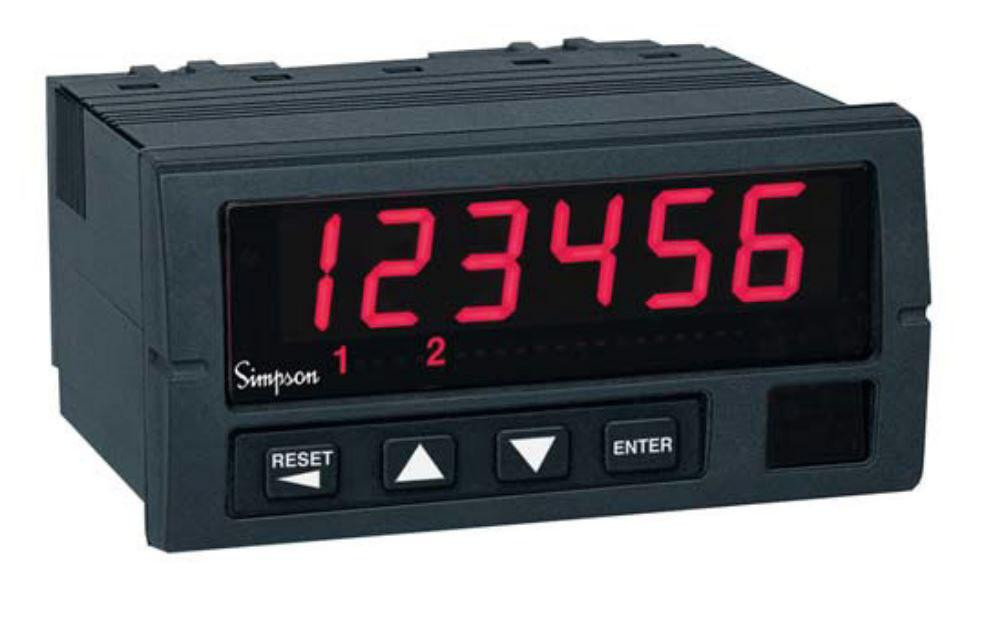

- S660 totalizer counters

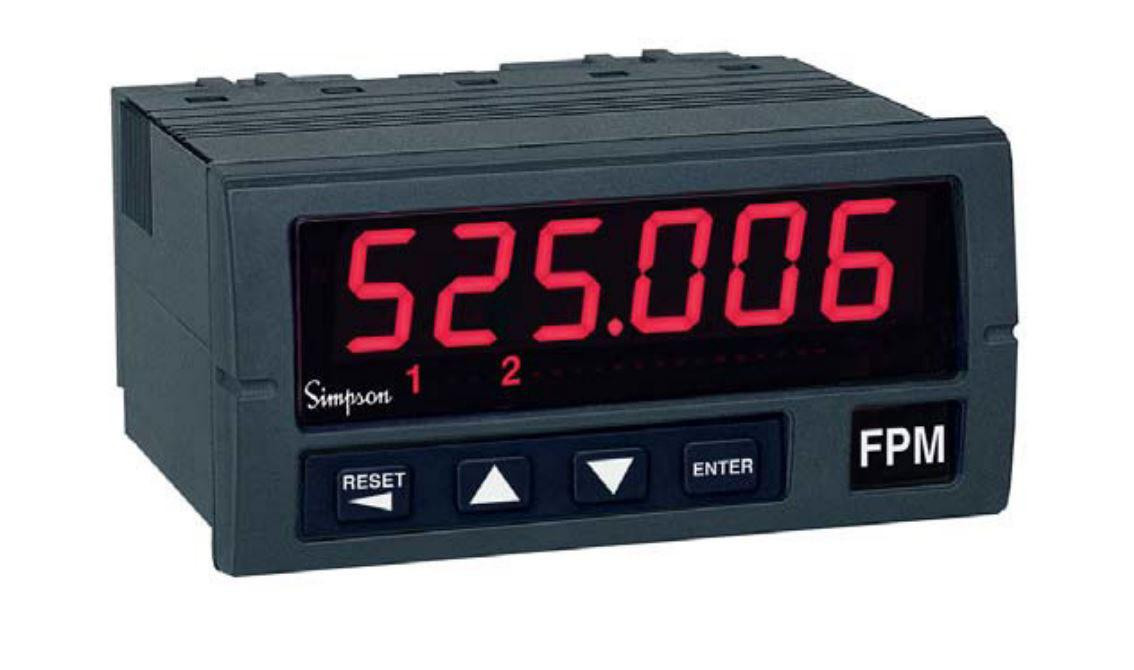

- S661 preset rate counters

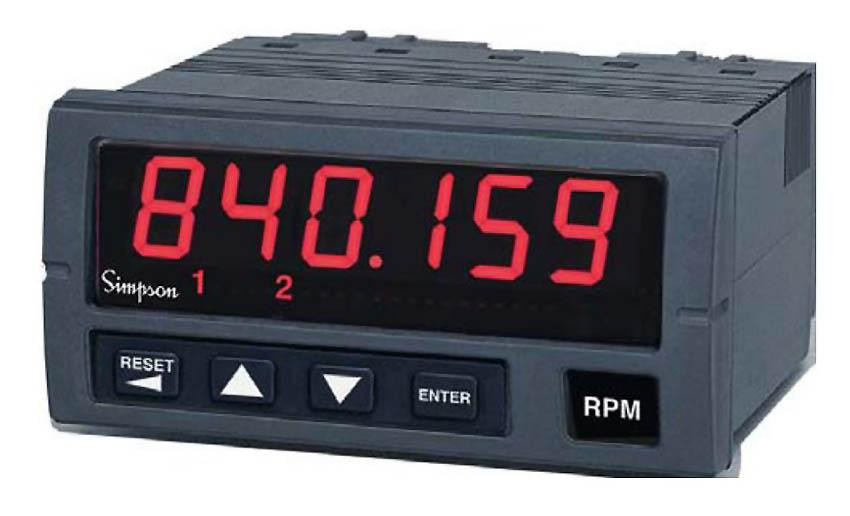

- S662 batch/dual counter
- S663 rate/totalizer counter

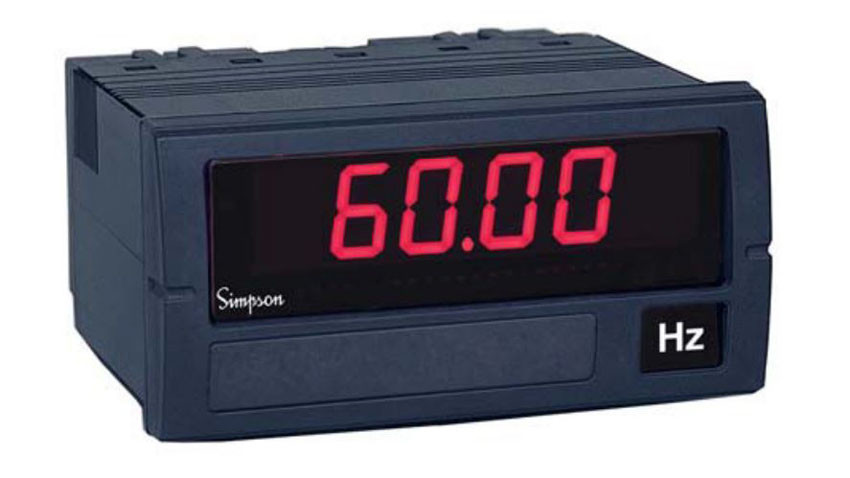

- S664 frequency counter
The front cover is rated NEMA 4X and can easily be programmed from the front panel.
Marshall Wolf Automation is your authorized Simpson Electric distributor!
Features Include:
- Type: 6-digit, 7-segment, red LED
- Height: 0.56" (14.2 mm)
- AC Voltages: 120 VAC ±10%
- Power Consumption: 3 VA

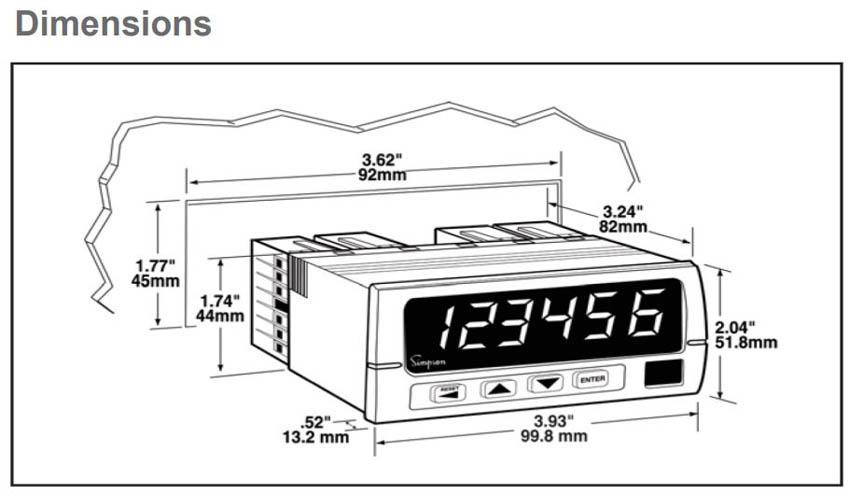

- Panel Cutout: 3.62" x 1.77" (92mm x 45mm)
- Easily programmed from the front panel
- Remote reset capability
- Input variety: Quadrature, Switch, TTL, CMOS, NAMUR, PNP, NPN
- 5A Relay Outputs
- Optional 12DCV Excitation
Software functions include:
- Password
- Display Scaling
- Set Point Programming
- Decimal Point Selection
