Standardize your signaling interface! Our PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface.
IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.
Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.

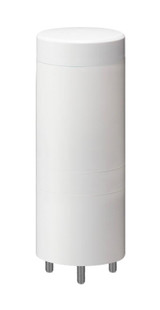

Built-in 5-pin M12 connector for quick and easy installations.
Select any combination of solid colors, multi-color, and clear globe LED units
Off-white body
A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
Add LR6-E-x modules
Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.
LR4 Series - 40mm, 24VDC or 100-240vAC
LR5 Series - 50mm, 12VDC or 24VDC
Also available with manual control switch box (HSST-3M2)
LR6 Series - 60mm, 24VDC or 100-240VAC
Multi-color LED module available, 7 colors in one (LR6-E-MZ)

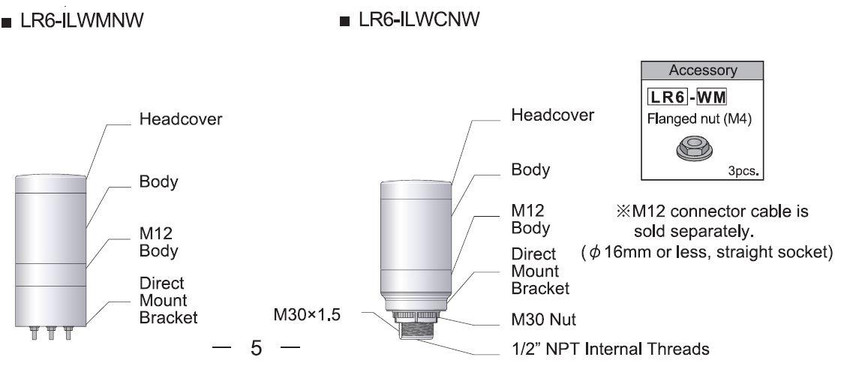

Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
LR7 Series - 70mm, 24VDC only
All LR light towers offer:
Ultra-bright LEDs - brilliant, even light
IP65 (IEC 60529), NEMA 4X, 13, indoor use
Modular twist and lock design, easily customize and field configure LED units and sound modules
Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
Sleek, smooth and rugged housing
Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
Available in off-white or silver bodies
NPN/PNP transistor output (AC100-240V is NPN only)
Operating ambient temperature -20°C to 50°C
2 year warranty
The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series
Patlite introduces their WD Wireless Data Series!
Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!
The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):
For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
Two options for the LR6 series:
use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base
Features Include:
Rated Voltage: DC24V
Operating Voltage Range: DC18V ~ DC30V
Rated Current Consumption: 170mA (Typical), 200mA (Max.)
Rated Power Consumption: 4W (Typical), 5W (Max.)
Inrush Current: 10A / 0.3msec
Operating Ambient Temperature: -20℃ to +50 ℃
Function: LED control, Buzzer control, Operation method switching setting, LED flashing pattern setting, Buzzer intermittent operation setting
Wireless Ø60mm Data Transmitter for LR6 Signal Tower, WD System - Wireless Data Acquisition, Transmitter Must Be used with a WD Receiver (WDR-LE-Z2-PRO or WDR-LE-Z2-PRO-L) and LR6 Light Tower
Wireless Ø60mm Data Transmitter PRO for LR6 Signal Tower, WD System - Wireless Data Acquisition, This Transmitter Must be used with WDB-D80S-PRO, a Wireless Data Receiver (WDR-LE-PRO) and LR6 Light Tower
