ATEPR-15-RG

Looking for a ready to use solution? The ATE series is and LED light tower that comes pre-wired and ready to use. The light tower includes either a pushbutton or selector switch mounted on the light tower or remotely.

*Please note for this series all red color lights are flashing, all other colors will be steady.

*Buzzer option is not available on the 5 light stack models, only for 4 lights or less.

Available in 1 to 5 tiers with or without a buzzer... this is a great solution for work stations, call centers, distribution centers and assembly lines!

• ATEP series - ready to use stack light with mounted pushbutton box

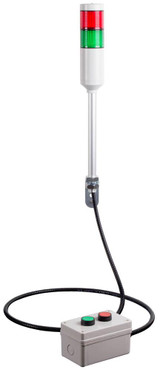

• ATEPR series - ready to use stack light with remote pushbutton box (includes 6 feet of cable)
• ATES series - ready to use stack light with mounted selector switch box
• ATESR series - ready to use stack light with remote selector switch box (includes 6 feet of cable)

This series has UL, CE and RoHS approvals and currently is only available in 56mm diameter and 110VAC power supply.

Standard pole length is 240mm (9.45"). They are rated IP65 (IP40 with optional buzzer; orderable as accessory MPZ-56F or MPZ-56H).

Features Include:

• Operation/Function: R: Flashing | G: Steady
• Current: Red: 17mA | Yellow: 22mA
• Power Supply: 110V AC 50/60 Hz (±10%)
• Flash Rate: 80 times/minute
• Pole Length: 240mm (9.45 inch)
• Vibration: 0.75mm @10~55Hz: xyz/60mi
• Ambient Temperature: -15 ~ 40 °C
• Degree of Protection: IP65, IP40 with buzzer
• Ready to use right out of box
• Optional 85 or 100dB buzzer (fixed or adjustable volume)
• Comes with 6 feet long power cord installed
