02720

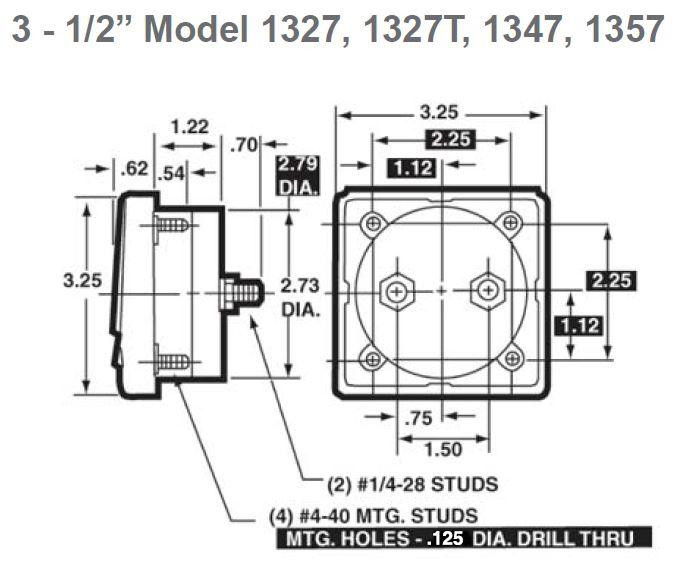

Features Include:

• Accuracy: ±2% F.S. (Iron-Vane), ±3 F.S. (Rectified)
• Tracking: ±3%
• Shielding: Calibration is unaffected by magnetic panel mounting
• Response Time: 1.5 seconds maximum
• Overload (1 second): 10 times F.S.
• Continuous: 1.5 times F. S.
• Dial: Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
• Resistance: ±15% of meter impedance
• Operating Temperature: -4°F to +149°F (-20°C to +65°C)
• Case: High density black plastic
• Pointer: Model 1212: black lance; all other models: Spade with black matte finish

Repeatability:

• 2%: AC Current, DC Process
• 3%: AC Voltage, DC Voltage, Wattmeters
• 0.5%: DC Current
