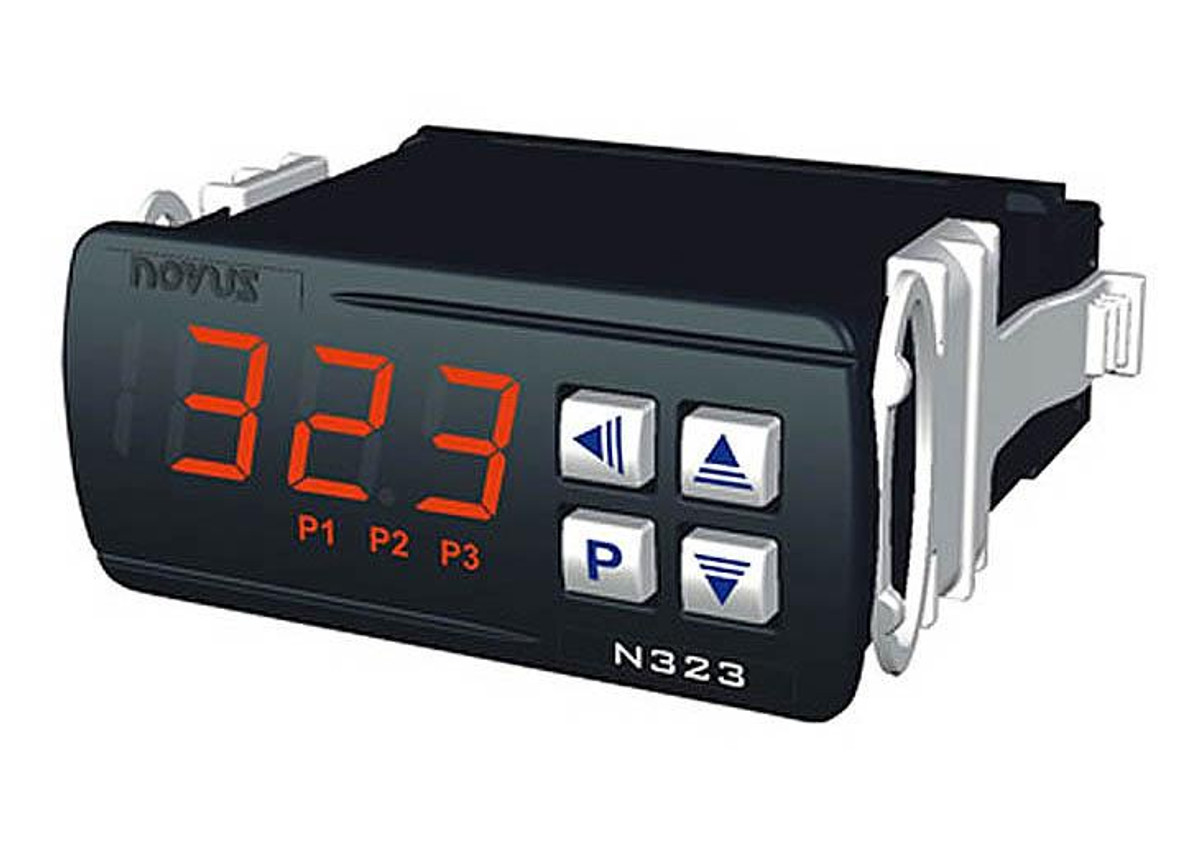

Novus
8032203322
Temperature Controller, 2 Relays, NTC, RS485, Electronic Indicators and Thermostats
$76.00
**Tariff Update: Currently in 'Wait and See' Mode Instead of 'Panic and Overcharge' Mode!** Read the latest!
Product image is representative only, please verify specifications.
03220
Alt: 3220
$143.73
Analog Panel Meter, Wide-Vue, 3.5", 0-100AC, Model 1357, .008 Impedance
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Analog Panel Meter, Wide-Vue, 3.5", 0-100AC, Model 1357, .008 Impedance
Specifications
Alternate Part Number
3220
Amp Rating
See Spec
Analog/Digital
Analog
Meter Type
Panel Meter
Series
Wide-Vue Series
Warranty
1 Year
Weight
.5
Features Include:
- Accuracy: ±2% F.S. (Iron-Vane), ±3 F.S. (Rectified)
- Tracking: ±3%
- Shielding: Calibration is unaffected by magnetic panel mounting
- Response Time: 1.5 seconds maximum
- Overload (1 second): 10 times F.S.
- Continuous: 1.5 times F. S.
- Dial: Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
- Resistance: ±15% of meter impedance
- Operating Temperature: -4°F to +149°F (-20°C to +65°C)
- Case: High density black plastic
- Pointer: Model 1212: black lance; all other models: Spade with black matte finish
Repeatability:
- 2%: AC Current, DC Process
- 3%: AC Voltage, DC Voltage, Wattmeters
- 0.5%: DC Current
