07670
Alt: 7670
$156.79
Analog Panel Meter, Rectangular, 4.5", 0-15DC, Model 29, 1000 Impedance
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Analog Panel Meter, Rectangular, 4.5", 0-15DC, Model 29, 1000 Impedance
Specifications
Alternate Part Number
7670
Amp Rating
See Spec
Analog/Digital
Analog
Meter Type
Panel Meter
Series
See Specs
All - Voltage
See Spec or N/A
Warranty
1 Year
Weight
1
Features Include:
- Approx. Impedance (Ohms) @ 60 Hz: 1000 Ohms per Volt
- Range: 0 - 15

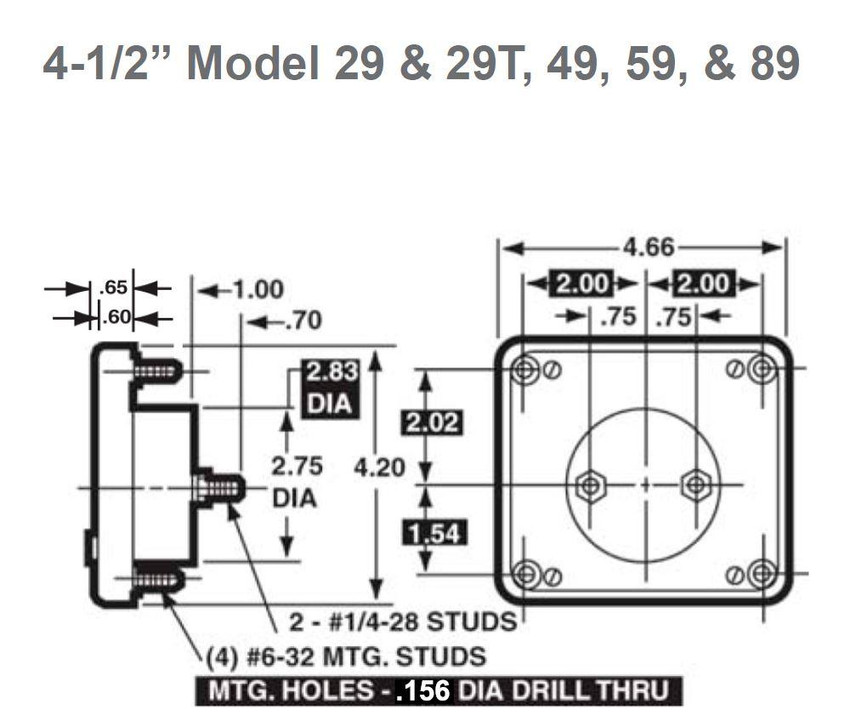

- Size: 4-1/2" Model 29
- Movement: Annular, rectifier type, self-shielding
- Suspension: Pivot and jewel; “T” styles: taut band
- Shielding: Calibration is unaffected by magnetic panel mounting
- Response Time: 1.5 seconds maximum
- Overload (1 sec.): 10 times F.S.
- Overload (Continuous): 1.5 times F.S.
- Resistance: ±15% of meter impedance
- Scale Length: 99.0 mm
