Analog Panel Meter, Designer, 4.5", 0-15DC, Model 524, Self-Shielding Movement
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

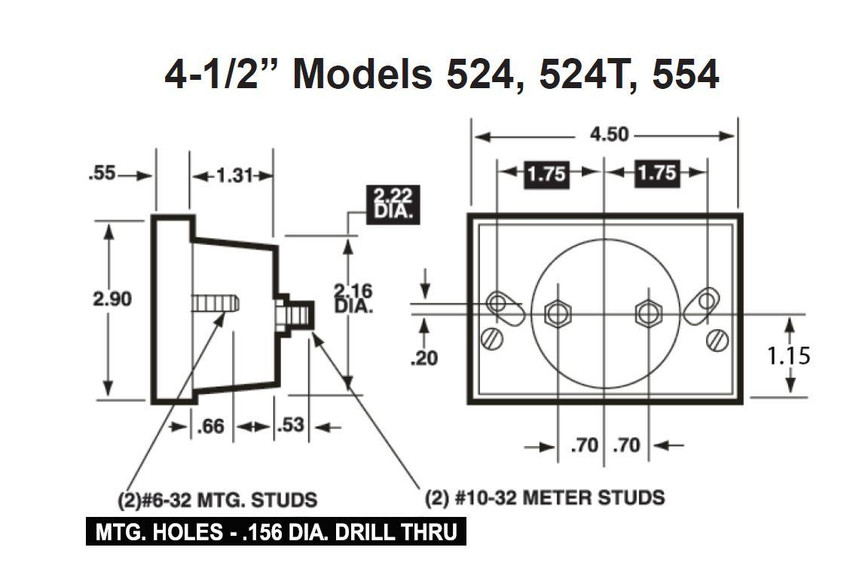

Analog Panel Meter, Designer, 4.5", 0-15DC, Model 524, Self-Shielding Movement
Features Include:
- Approx. Impedance (Ohms) @ 60Hz: 1,000 Ohms per volt
- Range: 0 - 15
- Accuracy: ± 2% F.S.
- Movement: AC/Iron-vane, magnetically damped, DC Annular
- Tracking: ± 3%
- Response Time: 1.5 seconds maximum
- Overload (1 sec.): 10 times F.S.
- Overload (Continuous): 1.5 times F.S.
- Repeatability: 2% for standard meters, 0.5% for taut band meters
- Case: High density black plastic
- Scale Length: 2.92” (74.2mm)
- Clean, uncluttered design offers maximum visibility in minimum required height
- Glass window for optimum viewing
- Rugged black plastic case
- Red knife-edge pointer for precision readability
