$187.95

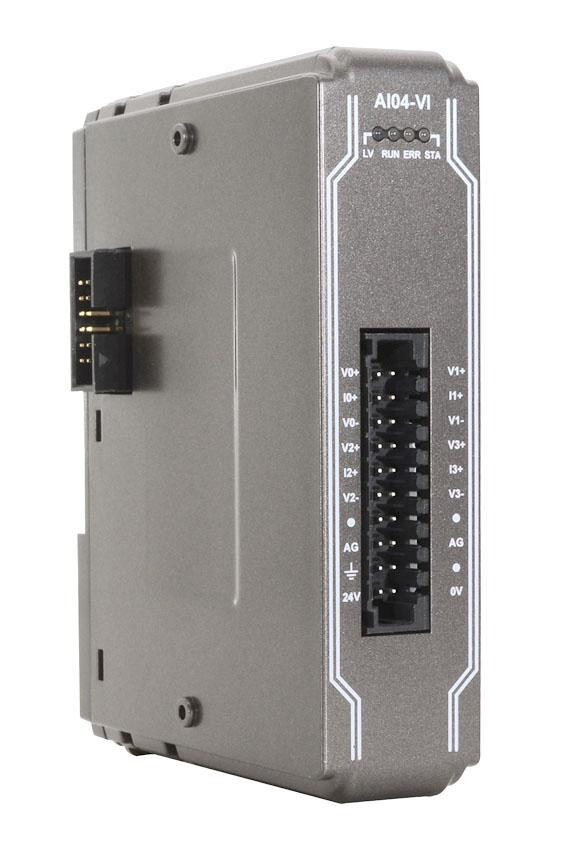

IR-AI04-VI
Alt: iR Series
$177.45
Remote I/O, Analog Input Point: 4 (-10 - 10V,4-20mA Mode, 16-bit Resolution)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The iR series are remote I/O that are available as Fieldbus coupler, analog (iR-A),digital (iR-D) or temperature options..
Features Include:
- Input Power: -10V ~ 10V, -20mA ~ 20mA
- Output Range: -10V ~ 10V, -20mA ~ 20mA
- Current Consumption: 70mA @ 5VDC
- Isolation: 500 VDC (Analog/Digital)
- Data Format: -10 ~ 10V, ±3200
- Number of Analog Inputs: 4
- Dimensions (WxHxD): 27 x 109 x 81 mm
- Mount: 35mm DIN rail mounting
- Vibration Endurance: Conforms to EN 60068-2-6 / EN 60068-2-27
- Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
- Operating Temperature: -20° ~ 50°C (-4° ~ 122°F)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weintek USA
IR-AQ04-VI
Remote I/O, Analog Output Point: 4 (-10 - 10V,4-20mA Mode, 12-bit Resolution)
$177.45
$198.45
$212.46
$208.95
$177.45
$177.45
Weintek USA
IR-ETN40R
Remote I/O Module, Built-in ETN Coupler, Support for Modbus TCP/IP Server and Ethernet/IP Adapter Protocols, 24 Digital Input Channels (4 High Speed), 16 Relay Output Channels, with Stop Output and Pulse Capture (Exclusive Features), Expand
$397.95
Weintek USA
IR-DM16-N
Remote I/O, Digital Input Point: 8/Type-Sink orSource, Output Point: 8/Type Sink
$124.95
