Advantech

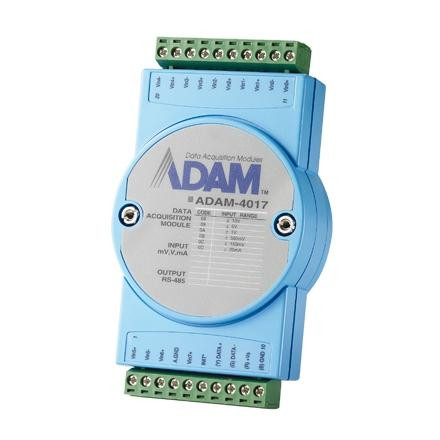

ADAM-4017+-F
Remote I/O Module, 8-Channel Analog Input Module with Modbus, RS485 Interface, 16-Bit Resolution, 8 Differential Channel Inputs, 51 x 85 x 150mm (HWL), ADAM 4000 Series
$340.20
ADAM-4017-F
Alt: This is the Latest Version of ADAM-4017-E, ADAM-4017-DE & ADAM-4017-D
$252.00
Analog Input Module, 8-Channel
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Analog Input Module, 8-ch,mV V mA
Features Include:
- Power Consumption 1.2 W @ 24 VDC
- Watchdog Timer: System (1.6 second)
- Supported Protocols: ASCII command
- Power Input Unregulated: 10 ~ 30 VDC
- Connectors: 2 x plug-in terminal block (#14 ~ 22 AWG)
- Channels: 8 differential
- Input Type: mV, V, mA
- Input Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA
- Sampling rate: 10 samples/sec. (total)
Technical Information:
- Advantech ADAM-4017 8-Ch Analog Input Module Datasheet
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
