AL6H-A11P-JW

IDEC is well known for their pushbuttons! They are the best engineered switches in the world.

Carrying the CE mark, UL, CSA, CCC and TUV approvals - you can use these switches anywhere. Finger-safe contact blocks offering IP20 protection and you can choose from illuminated and non-illuminated options.

Marshall Wolf Automation is a large stocking distributor of the complete line of IDEC.

HW 22mm Heavy Duty:

• IEC style, tamperproof mounting
• Modular stackable contact blocks with IP20 fingersafe screw terminals
• IP65
• HW series also offers a unibody e-stop with one piece construction

TW 22mm Metal Bezel

• Traditional NEMA style switch
• Illuminated or non-illuminated pushbuttons as well as pilot lights, selectors, key switches and e-stops
• NEMA 4X/Ip65
• Many in this series start with an 'A'

TWND 30mm Heavy Duty

• Heavy duty design for all types of harsh environments
• Many in this series start with an 'A'
• Ideal for food and beverage, metal working, papermills and agricultural applications

CW 22mm Flush Mount

• Only 2mm above panel!

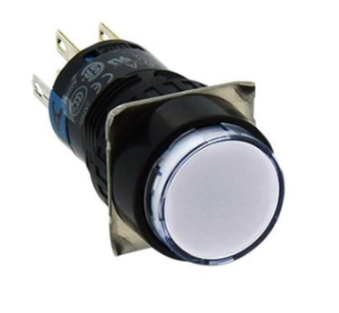

LB 16mm Space-Saving

• Standard bezel with 16mm hole size

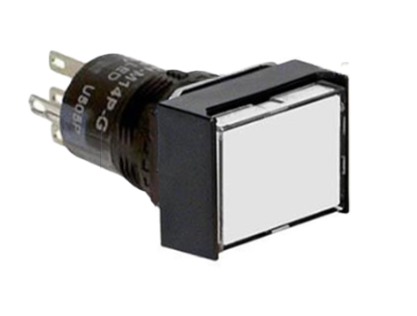

LB 18mm Flush Mount

• Sleek flush mount design
• Only 34.9mm depth behind

Series Features Include:

• Super bright LED Illumination
• Function Options: Momentary, Maintained, Selector Key
• Pilot Light and Push-Lock/Turn-Reset Functions
• Gold-clad silver snap acting contacts for reliable low level switching
• IP40 (dustproof) or IP65 (oiltight) versions
• .110in solder/quick connect termination
• UL Recognized
• CSA Certified

Need More Information?

• IDEC A6 Series Miniature Switches and Pilot Devices Datasheet
• IDEC A6 Series Miniature Switches and Pilot Devices Dimensions
• IDEC A6 Series Miniature Switches and Pilot Devices Accessories
