AIS18N08AP024-Q65
$54.72

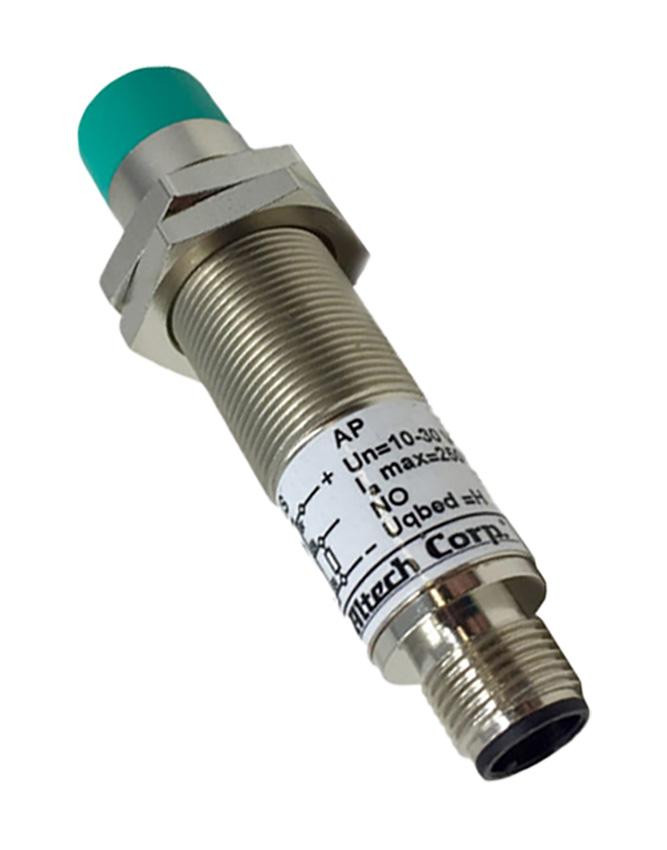

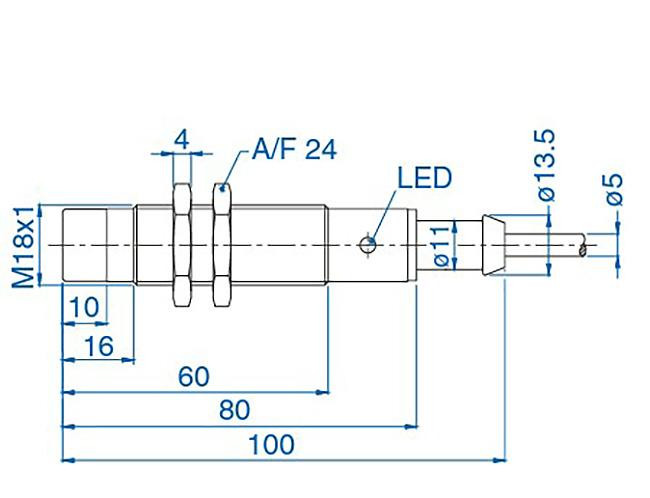

AIS18N08AP024-Q65 / Inductive Proximity Sensor, Ø18mm x 80mm Length, Cylindrical, 3-Wire DC, Non-Flush, 10-30VDC, 8mm Range, PNP, NO, 250mA, 65 Style Connector, M12 4-Pin, Supplied with Brass, Nickel Plated Locknuts, IP67
- Minimum Purchase:
- 1 unit
Description
Features Include:
- IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection
- Short Circuit Protection
- Overload Protection
- Reverse Polarity Protection
- Wire Break Resistance
- Transient Voltage Protection
- Temperature Range: -25 to 70°C (-13 to 158°F)
- Sensing Distance: 5mm (.20 in.)
- Ripple Voltage: ≤ 10%
- Voltage Range: 10-30V
- No-Load Current: ≤15 mA
- Max. Load Current: 250 mA
- Voltage Drop Across Sensor: ≤2.5V
- Max. Leakage Currrent: ≤ 1 μA
- Switching Frequency: 500 Hz
