12358730048
Pfannenberg

12358730048

Alt: 123 5873 0048, PWS 31002

$8,973.75

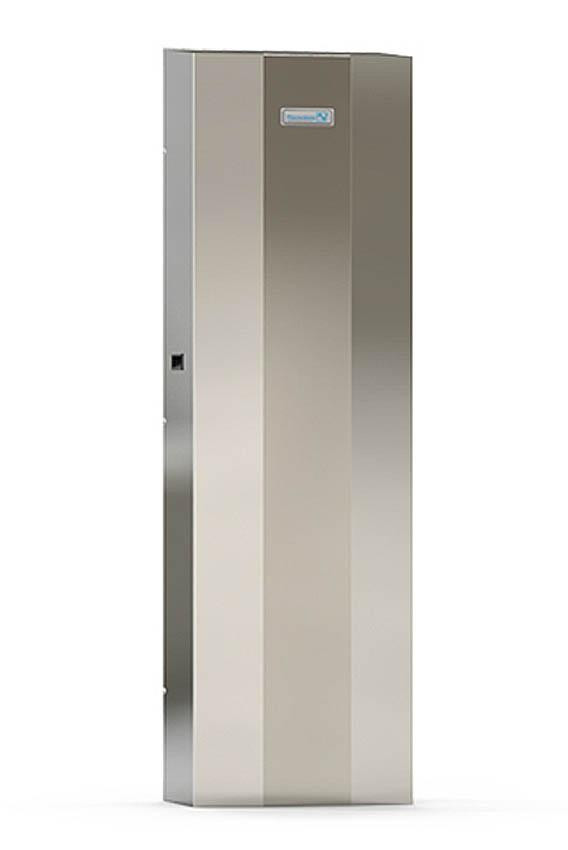

Air/Water Heat Exchanger, NEMA 4/4X, 460VAC, 10,000W, 34,121 BTU, 304 Stainless Steel

Weight:
126.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Efficient Cooling when Ambient Conditions are at their Worst!

Pfannenberg Air/Water Heat Exchangers are great where ambient temperatures are high or the atmosphere is oily or aggressive, washdown areas of the plant or where there are high amounts of particulate.

These are ideal wherever machines or production processes are cooled by tempered water where water is already provided.

Features Include:

  • Integrated thermostat and solenoid valve for temperature control
  • Cut-out compatible with DTS 3061/3081

Washdown Roof Design Metal

  • Covers are designed with a sloped top which sheds water away from the electrical enclosure as well as eliminates potential water pooling, corrosion and ice buildup.

Rugged Design

  • Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.

Long Airflow Path

  • Heat exchangers are designed to draw hot air from the top of the enclosure and deliver cool air below the components.

Closed Loop Design

  • Designed to isolate the external ambient air from the internal air circuit eliminating the risk of contaminants entering the cabinet.

Push to Connect Fittings

  • Hydronic connectors that supports quick connection to 1/2 inch O.D. hose or 1/2 inch I.D. hose with included adapter. Unlike other units that have rigid permanent connections.

Optimized Internal Design

  • Smart engineered solution, easy to service and maintain.

Intelligent Control of Water Flow

  • The adjustable electronic thermostat permits precise control of the electrical enclosure temperature by regulating the coolant flow by activating a solenoid valve. This regulates the coolant flow to minimize coolant waste and increase energy-efficiency.

Condensation Management

  • Physical barriers allow for condensation to be collected and drained from the system with zero intrusion into the cabinet.
