Alt: 133 8403 6351, DTS 3661C, Outdoor Rated, NEMA 3R/4
$9,963.00
(You save)

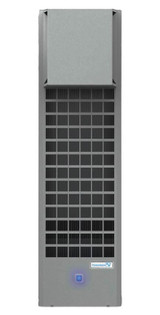

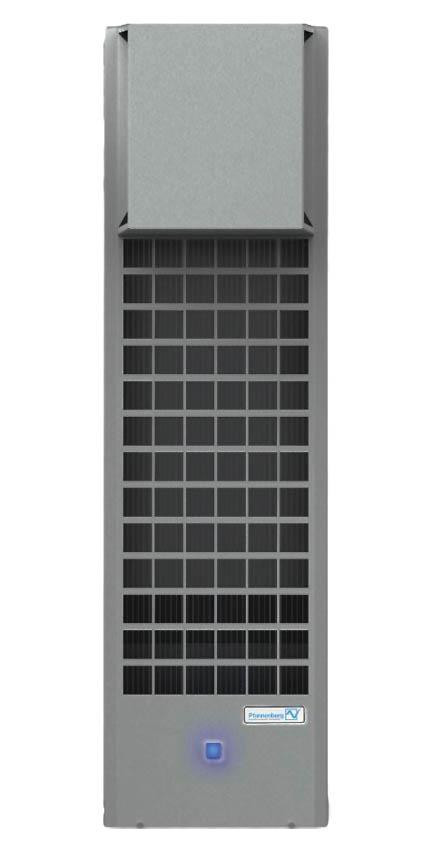

Air Conditioner, NEMA 12 Slim Side Mount, 400/460VAC, 50/60Hz, 21000-29000 BTU, 1769W, ANSI 61 Dark Grey Powder Coated Steel, Outdoor Enclosure, 5.18A Nominal Current, 10A Fuse Class CC, 81dB(A), R134a/450g, UL, cUL Drop Ship Only Via Truck
The Pfannenberg DTS 36X1C seriesis the new improved version of the former DTS 36X1 series. This improved optionprovides the highest cooling capacity in the smallest footprint possible with 1.5 ton of cooling capacity.
Available in 3 models; DTS 3641C (NEMA Type 12) for indoor use, DTS 3661C (NEMA Type 3R/4) designed for outdoor use, and the stainless steel DTS 3681C (NEMA Type 4/4x) designed for washdown applications.
Features Include:
Frequency (Hz): 50/60
Power Consumption (W): 1769
Nominal (Run) Current* (@35A/35A): 5.18
Fuse (max) Class CC: 10
Noise Level dB(A): 81
Weight lb (kg)(without packaging): 234.8 (106.5)
Dimensions in: 57.2 x 15.8 x 16.1
Highest cooling capacity in the smallest footprint possible
Easy Wiring: Hinged Panel access
No more phasing (460v)
Robust and Service Friendly : HP & LP switch to protect the compressor /Easy access to components
Highly visible Fault indicator on the front of the unit
