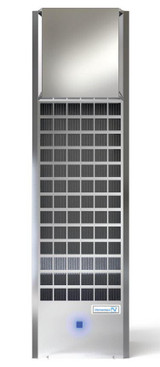

The Pfannenberg DTS 34X1C series is the new improved version of the former DTS 34X1 series. This improved option provides the highest cooling capacity in the smallest footprint possible with 1.5 ton of cooling capacity.

Available in 3 models; DTS 3441C (NEMA Type 12) for indoor use, DTS 3461C (NEMA Type 3R/4) designed for outdoor use, and the stainless steel DTS 3481C (NEMA Type 4/4x) designed for washdown applications.

Features Include:

• Frequency (Hz): 60
• Power Consumption (W): 2450
• Nominal (Run) Current* (@35A/35A): 11.82
• Fuse (max) Class CC: 20
• Noise Level dB(A): 81
• Weight lb (kg)(without packaging): 201.5 (91.4)
• Dimensions in: 57.2 x 15.8 x 16.1
• Highest cooling capacity in the smallest footprint possible
• Easy Wiring: Hinged Panel access
• No more phasing (460v)
• Robust and Service Friendly : HP & LP switch to protect the compressor /Easy access to components
• Highly visible Fault indicator on the front of the unit

Technical Information:

• Pfannenberg DTS 3481C Side Mount Cooling Unit Technical Data
• Pfannenberg DTS 3000 Series Technical Manual
• Pfannenberg DTS Series Project Manual Guide
• Pfannenberg Thermal Management Catalog
