Alt: 133 8403 9158, DTS 3681C, Washdown, NEMA 4/4X, This Item Replaced 13383939158, DTS 3681
$10,952.25
(You save)

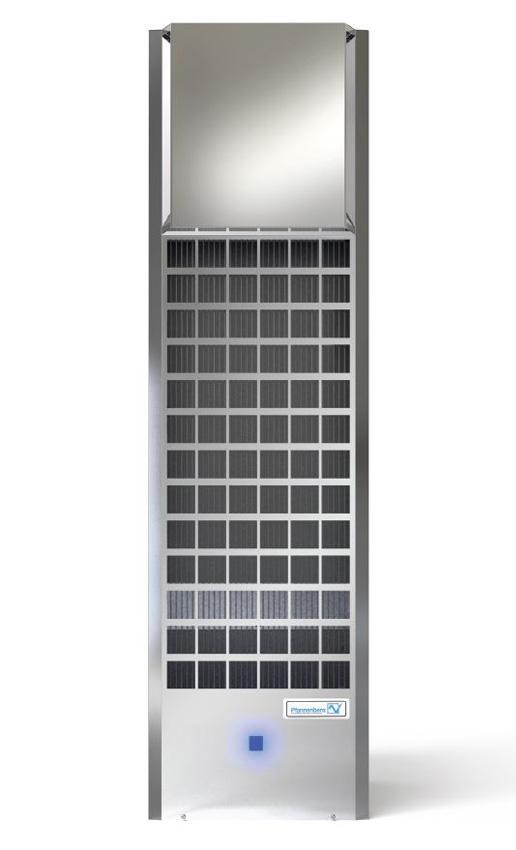

Air Conditioner, NEMA 4/4X, Side Mount, 230VAC, 21000-29000 BTU, 60Hz, 3678W, 304 Stainless Steel, Washdown Enclosure, 16.06A Nominal Current, 30A Fuse Class CC, 81dB(A), R134a/450g, UL, cUL (Cannot Ship UPS, Drop Ship Only via Truck)
The Pfannenberg DTS 36X1C seriesis the new improved version of the former DTS 36X1 series. This improved optionprovides the highest cooling capacity in the smallest footprint possible with 1.5 ton of cooling capacity.
Available in 3 models; DTS 3641C (NEMA Type 12) for indoor use, DTS 3661C (NEMA Type 3R/4) designed for outdoor use, and the stainless steel DTS 3681C (NEMA Type 4/4x) designed for washdown applications.
Features Include:
Frequency (Hz): 60
Power Consumption (W): 3678
Nominal (Run) Current* (@35A/35A): 16.06
Fuse (max) Class CC: 30
Noise Level dB(A): 81
Weight lb (kg)(without packaging): 234.8 (106.5)

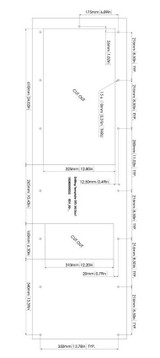

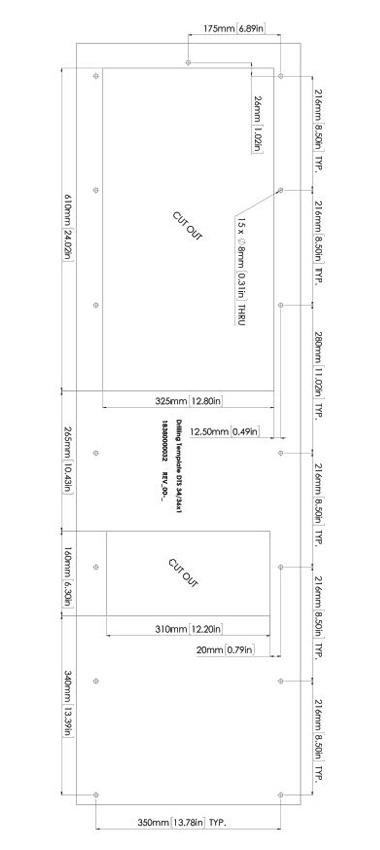

Dimensions in: 57.2 x 15.8 x 16.1
Highest cooling capacity in the smallest footprint possible
Easy Wiring: Hinged Panel access
No more phasing (460v)
Robust and Service Friendly: HP & LP switch to protect the compressor /Easy access to components
Highly visible Fault indicator on the front of the unit
