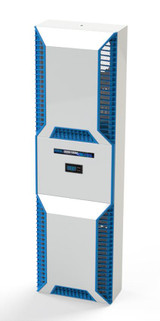

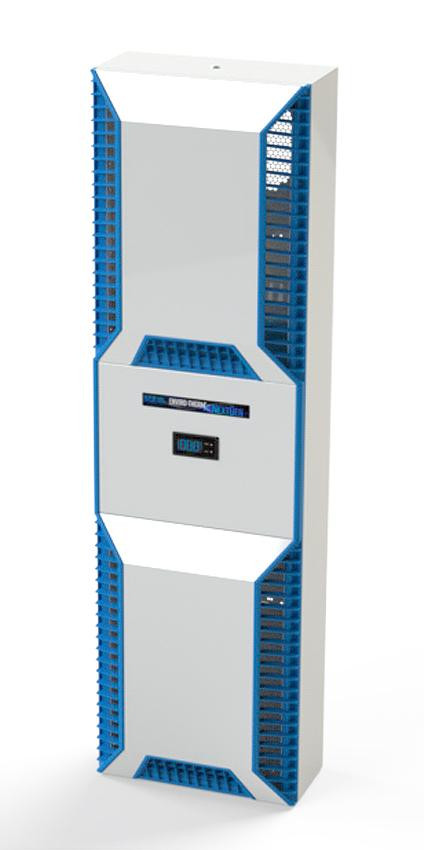

SCE-NG6800B460V3

Saginaw introduces their Enviro-Therm NextGen series of air conditioners!

This series is ideal for applications that do not require all the features of air conditioners designed for rugged outdoor use applications.

• Designed for indoor applications (or mild temperature outdoor ones)
• Slim design/narrow profile avoids the unit sticking out too far from the enclosure or taking up a lot of space
• Has controller/display on the exterior of the unit
• Includes modbus communications input
• Cooling capacities from 1195 BTU/Hr up to 14,300 BTU/Hr
• Can be used in enclsoures 10", 12", 16" deep

Marshall Wolf Automation is your authorized Saginaw distributor!

Features Include:

• Cooling Capacity @ 95°F / 95°F: 6820 BTU
• Cooling Capacity @ 95°F / 122°F: 5120 BTU
• Compressor: Rotary piston
• Refrigerant / GWP: R134a / 1430
• Refrigerant Charge: 410 g / 14.5 oz
• High / Low Pressure: 435 / 87 psi
• Operating Temperature Range: 50°F - 140°F
• Air Volume Flow (System / Unimpeded): Ambient: 400 / 706 cfm / Enclosure: 294 / 500 cfm
• Mounting: Wall Mounted / Recessed
• Housing Material: Mild Steel, Powder Coated

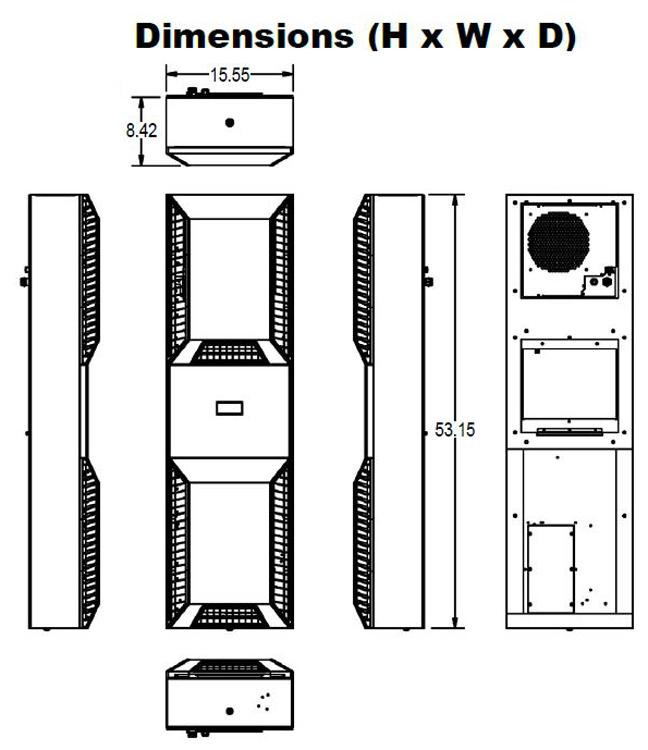

• Dimensions (H x W x D): 53.15" x 15.55" x 8.26" inch
• Rated Operating Voltage / Frequency: 380-415 V 50 Hz 3~ / 400-460 V 60 Hz 3~
• Rated Current @ 95°F / 95°F: 1.9 A @ 50 Hz /2.0 A @ 60 Hz
• Starting Current: 16 A
• Max. Current: 2.9 A
• Nominal Power 95°F / 95°F: 0.97 kW @ 50 Hz / 1.25 kW @ 60 Hz
• Max. Power: 1.75 kW
• Fuse Rating: 15 A (T)
• Connection: 5 pole terminal for signals, 4 pole terminal for power, 3 pole terminal block for RS 485 Modbus
• NEMA Protection Class: Type 3, 3R, 12, 4

Technical Information:

• Saginaw SCE-NG6800B460V3 User Manual and Technical Data
• Saginaw Enviro-Therm NextGen Thermal Management Brochure
