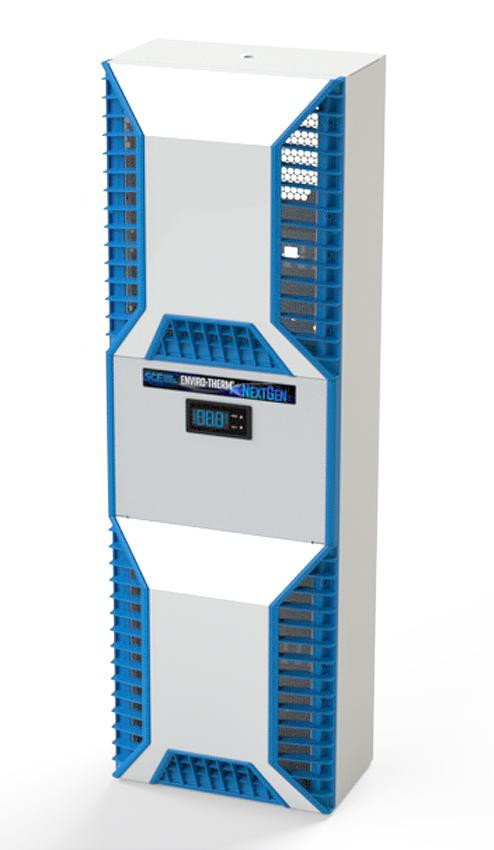

SCE-NG2970B230V

Saginaw introduces their Enviro-Therm NextGen series of air conditioners!

This series is ideal for applications that do not require all the features of air conditioners designed for rugged outdoor use applications.

• Designed for indoor applications (or mild temperature outdoor ones)
• Slim design/narrow profile avoids the unit sticking out too far from the enclosure or taking up a lot of space
• Has controller/display on the exterior of the unit
• Includes modbus communications input
• Cooling capacities from 1195 BTU/Hr up to 14,300 BTU/Hr
• Can be used in enclsoures 10", 12", 16" deep

Marshall Wolf Automation is your authorized Saginaw distributor!

Features Include:

• Cooling Capacity @ 95°F / 95°F: 2820 BTU
• Cooling Capacity @ 95°F / 122°F: 820 W @ 50 Hz, 835 W @ 60 Hz
• Compressor: Rotary piston
• Refrigerant / GWP: R134a / 1430
• Refrigerant Charge: 175 g / 6.2 oz.
• High / Low Pressure: 363 / 87 psi
• Operating Temperature Range: 50°F - 140°F
• Air Volume Flow (System / Unimpeded): Ambient: 220 / 380 cfm, Enclosure: 205 / 323 cfm
• Mounting: Wall Mounted / Recessed
• Housing Material: Mild Steel, Powder Coated
• Dimensions (H x W x D): 37.40" x 12.00" x 8.26" inch
• Rated Operating Voltage / Frequency: 230 V ~ 50/60 Hz
• Rated Current @ 95°F / 95°F: 2.1 A @ 50 Hz, 2.3 A @ 60 Hz
• Starting Current: 6 A
• Max. Current: 3 A
• Nominal Power 95°F / 95°F: 460 W @ 50 Hz, 520 W @ 60 Hz
• Max. Power: 690 W
• Fuse Rating: 15 A (T)
• Connection: 5 pole terminal for signals, 4 pole terminal for power, 3 pole terminal block for RS 485 Modbus
• NEMA Protection Class: Type 3, 3R, 12, 4

Technical Information:

• Saginaw SCE-NG2970B230V User Manual and Technical Data
• Saginaw Enviro-Therm NextGen Thermal Management Brochure
